Pepperl+Fuchs ARS B2 IA Series User Manual

ARS*-B2-IA*
Operation
2024-03
27
Reset Button
If the device is installed in explosion hazardous area, the reset button may be operated during
operation.
Rebooting the Rail Field Switch

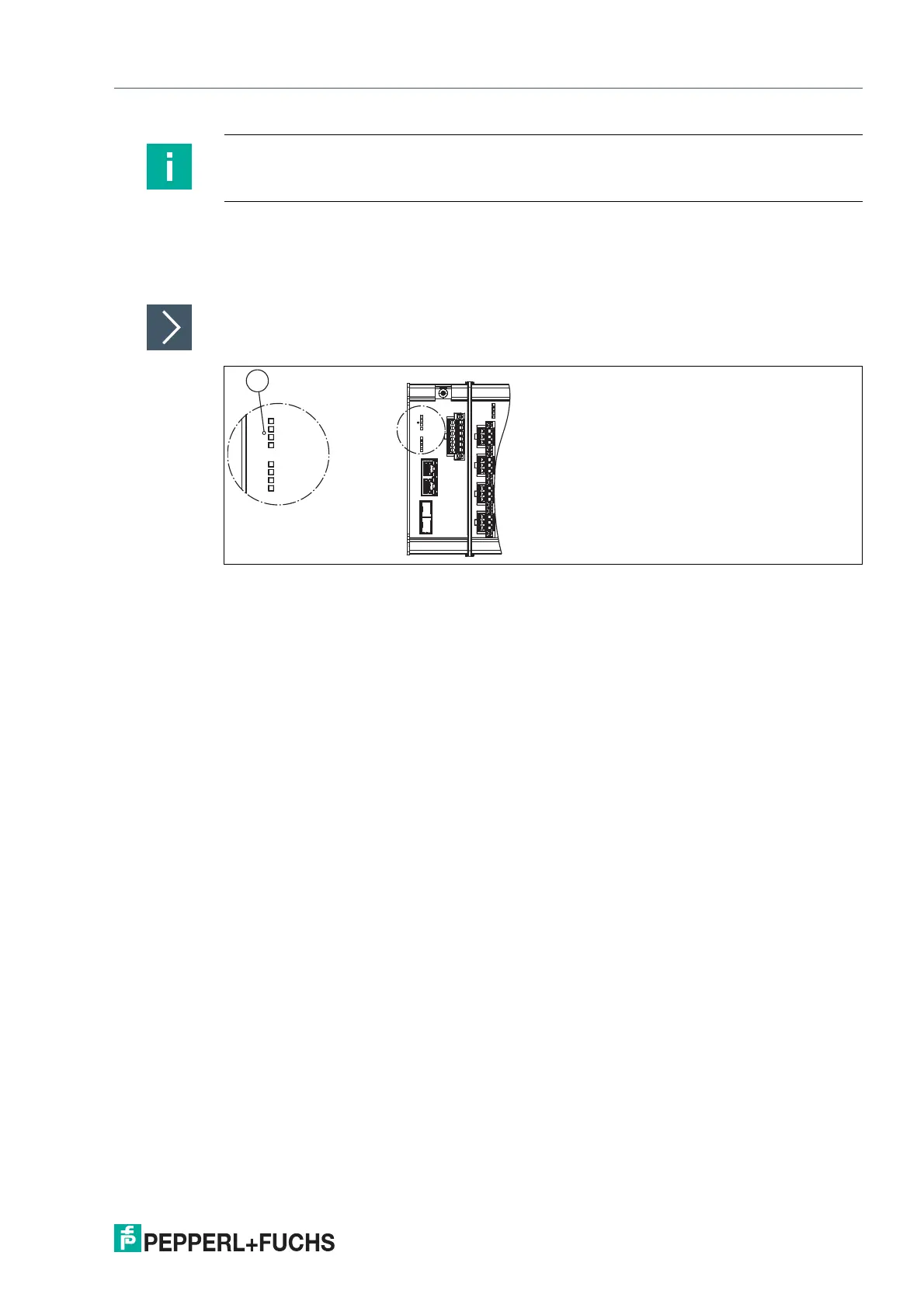

Figure 4.1
1. To reboot the rail field switch, push the reset button for at least 5 seconds.
Spurs Start-Up Management
Sequential Start-Up of Spurs
During start-up, the spurs are sequentially activated to minimize the initial high inrush current
demand for the auxiliary power supply. Therefore, the auxiliary power supply is less stressed
during the start-up phase, and its expected useful lifetime is increased.
Fold-Back Characteristics of the Spur Short Circuit Current Limitation
If a spur short circuit occurs, the spur current is switched off quickly. When the short circuit cur-
rent has been cleared, the spur current returns. If multiple simultaneous short circuit currents
occur, the current management system minimizes the additional current demand of the auxil-
iary power supply.
Note
For more information refer to the software manual or read the diagnosis information provided by
the web server or the asset management tool.
1 Reset button
RESET
PWR A
PWR B
STATUS
LNK/CHK
P1
P2
P3
P4
P1
P2
P3
P4
-
+
-
+
1
2
LNK/CHK
S1
S2
S3
-
+
S
-
+
S
-
+
S
-
+
S
S1
S2
S3
S4
S4
RESET
PWR A
PWR B
STATUS
LNK/CHK
P1
P2
P3
P4
1
