ARS*-B2-IA*
Installation

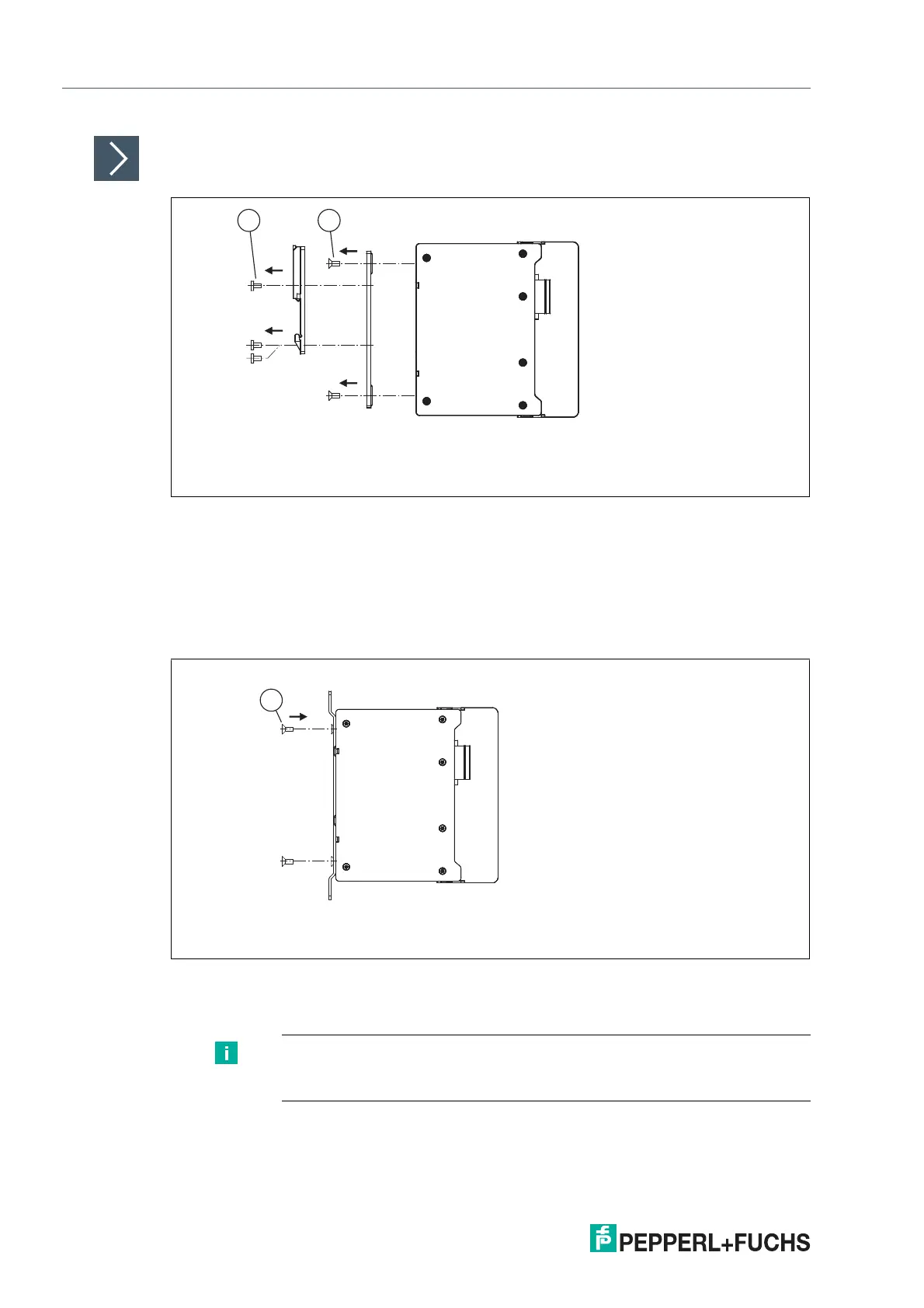

Mounting wall-mounting brackets
Figure 3.3
1.
Before installing wall-mounting bracket, remove the factory-installed DIN mounting rail clamps:
• To remove the DIN mounting rail clamps, loosen 3 screws each clamp.
• To remove the adapter, loosen 2 screws each adapter.
Figure 3.4
2.
Fit each wall-mounting bracket with 2 screws.
3.
Fit the device to the wall with M6 screws.
1 Screws for DIN mounting rail clamp
2 TX20 screws for adapter
1 Screw
Note
In the wall-mounting kit screws for wall-mounting brackets are not included.
Use the TX20 screws that are obtained by removing adapter.
