Pepperl+Fuchs BTC14N-GP-TS20-DP-N0 - Page 17

Box Thin Client for Industrial Applications
Installation
2019-12
17

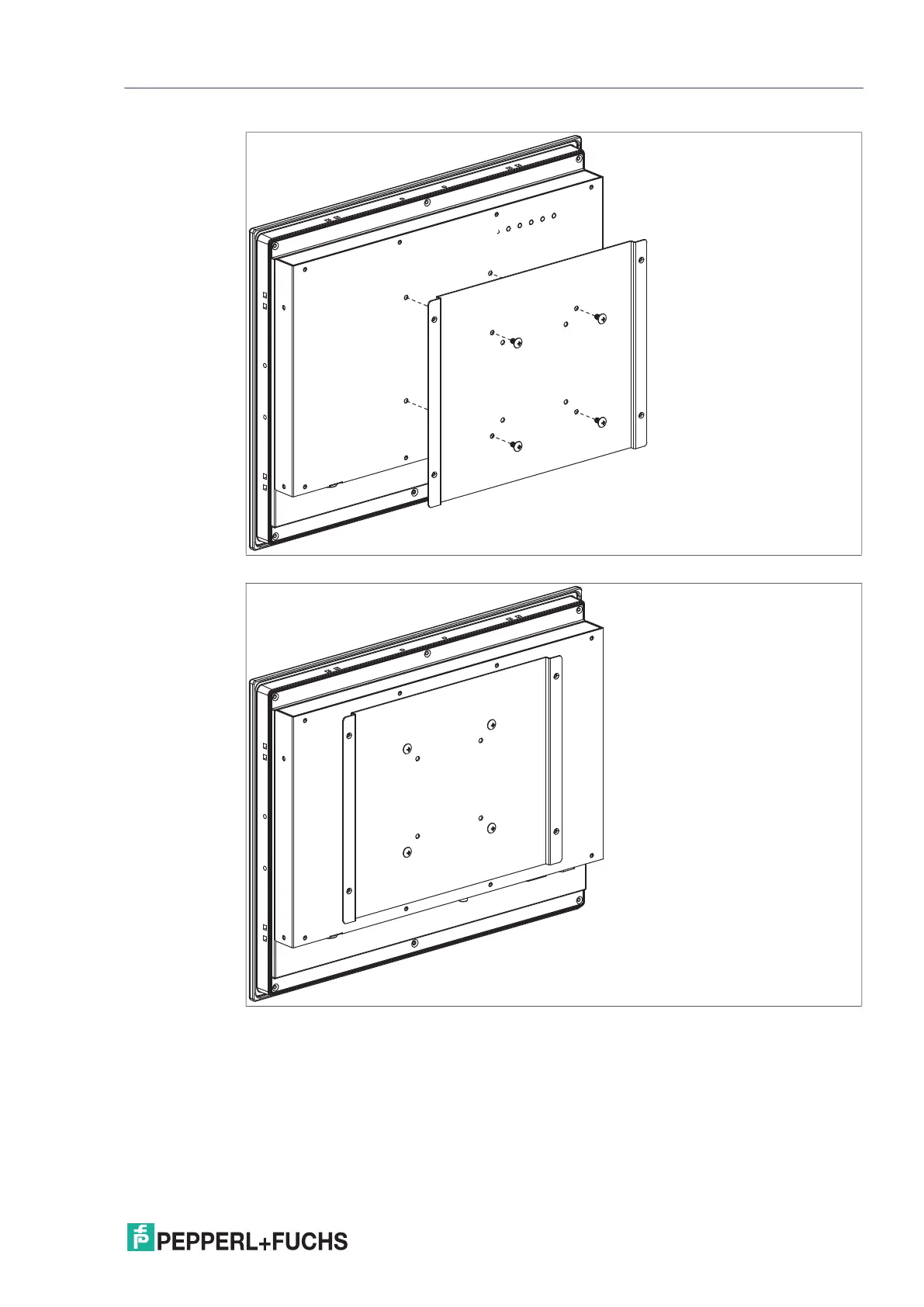

Figure 3.8
Figure 3.9
2. Secure the BTC14 to the VESA fixture using the supplied screws.
3. Screw M4, tightening torque: 0.7 ± 0.1 Nm
