Box Thin Client for Industrial Applications
Installation
2019-12
21

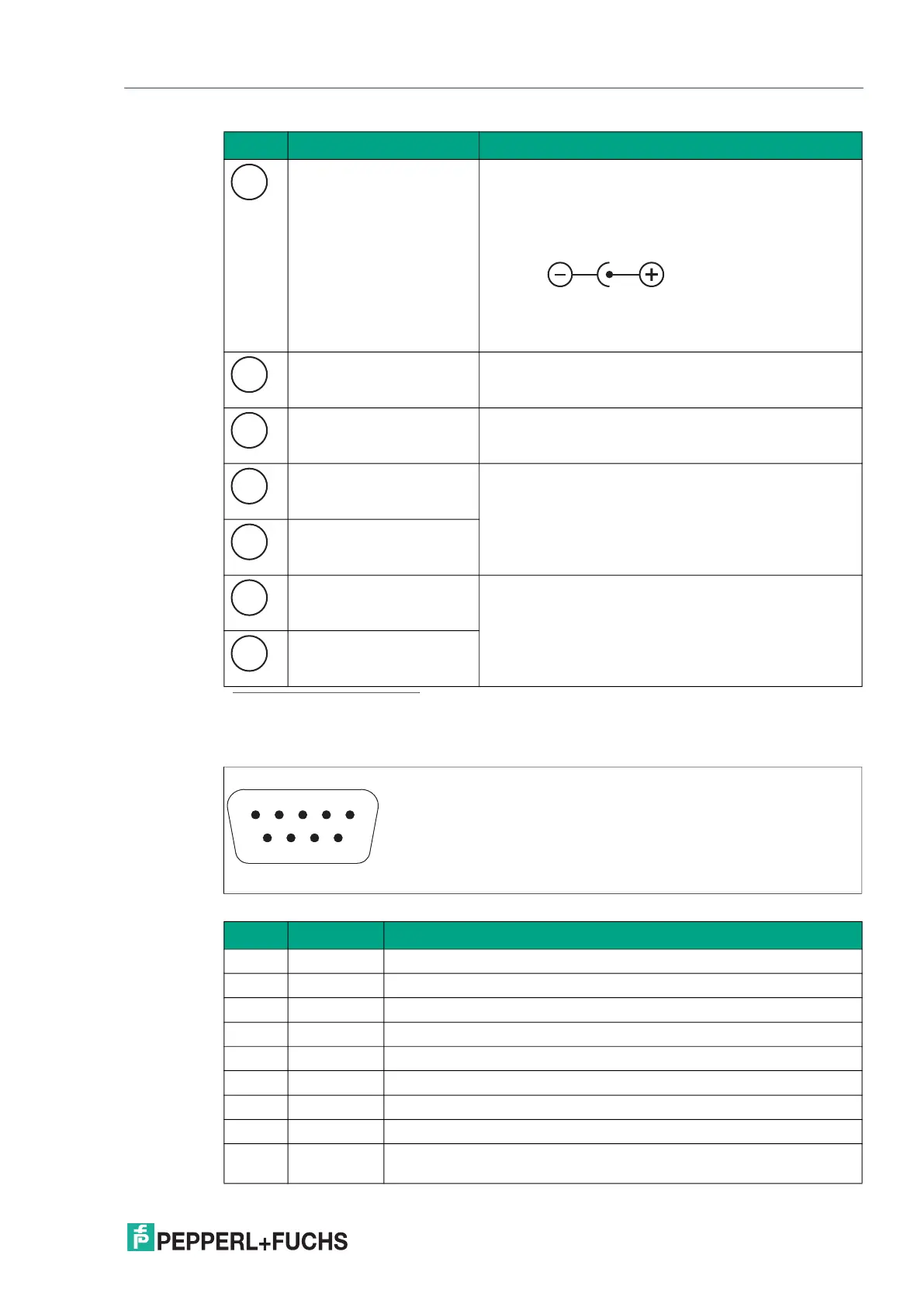

RS-232 Port
Figure 3.15
Power plug 5.5 x 2.5 mm DC jack bush with locking mechanism
(M8 screw)
12 VDC to 28 VDC
Polarity
USB USB 3.0 (Super Speed) x 2
COM RS-232/RS-485 port with DB-9 connector x 1
Ethernet 2
(Secondary port)
1000BaseT
RJ45 plug
Ethernet 1
(Primary port)
DisplayPort™ 2 DP 1.2 up to 2 x 4K (Ultra-HD) at 60 Hz
(Up to 3 Full HD monitors via series connection)
DisplayPort™ 1
1. Only four of these USB ports can be operated simultaneously in high-current mode, max. 14 W.
Pin Type Description
1 DCD Data Carrier Detect (E)
2 RxD Received Data (E)
3 TxD Transmitted Data (A)
4 DTR Data Terminal Ready (A)
5 M Ground
6 DSR Data Set Ready (E)
7 RTS Request to Send (A)
8 CTS Clear to Send (E)
9 RI_V Incoming Call (E)
(5 V or 12 V, max. 500 mA)
No. Interface type Description
6
7
8
9
10
11
12
1
9
5
6
