Pepperl+Fuchs BTC14N-GP-TS20-DP-N0 User Manual

2019-12
22
Box Thin Client for Industrial Applications
Installation

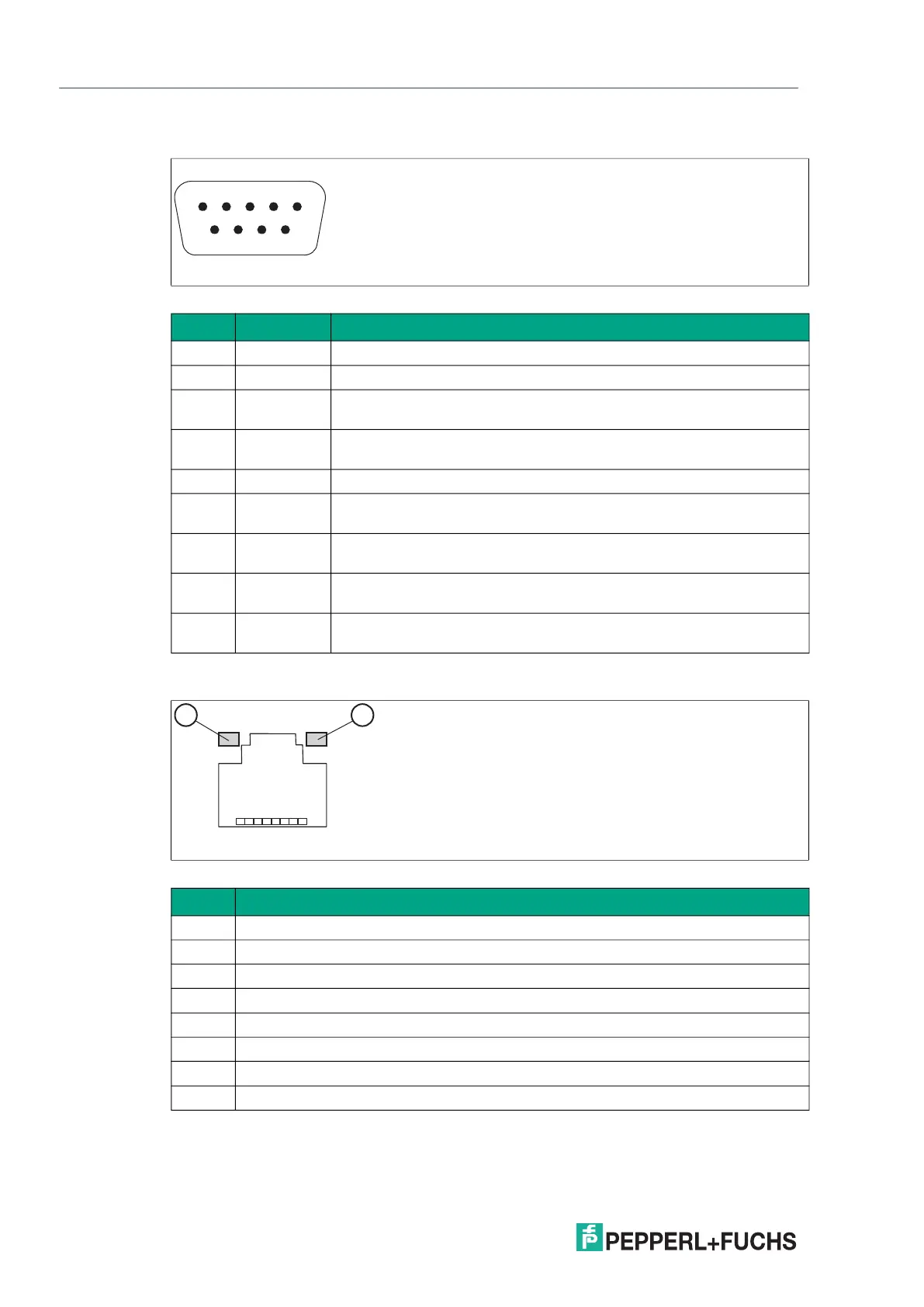

RS-485 Port
Figure 3.16
RJ45 Port
Figure 3.17 RJ45 pinout with LED display
Pin Type Description
1 Data- Transmit/receive data- (I/O) for half duplex mode
2 Data+ Transmit/receive data+ (I/O) for half duplex mode
3 Not con-
nected
-
4 Not con-
nected
-
5 M Signal ground
6 Not con-
nected
-
7 Not con-
nected
-
8 Not con-
nected
-
9 Not con-
nected
-
Pin Type
1 Transceive Data+
2 Transceive Data-
3 Receive Data+
4 Bidirectional Data+
5 Bidirectional Data-
6 Receive Data-
7 Bidirectional Data+
8 Bidirectional Data-
1
9
5
6
18
1 2
