Pepperl+Fuchs BTC14N-GP-TS20-DP-N0 User Manual

Box Thin Client for Industrial Applications
Installation
2019-12
25

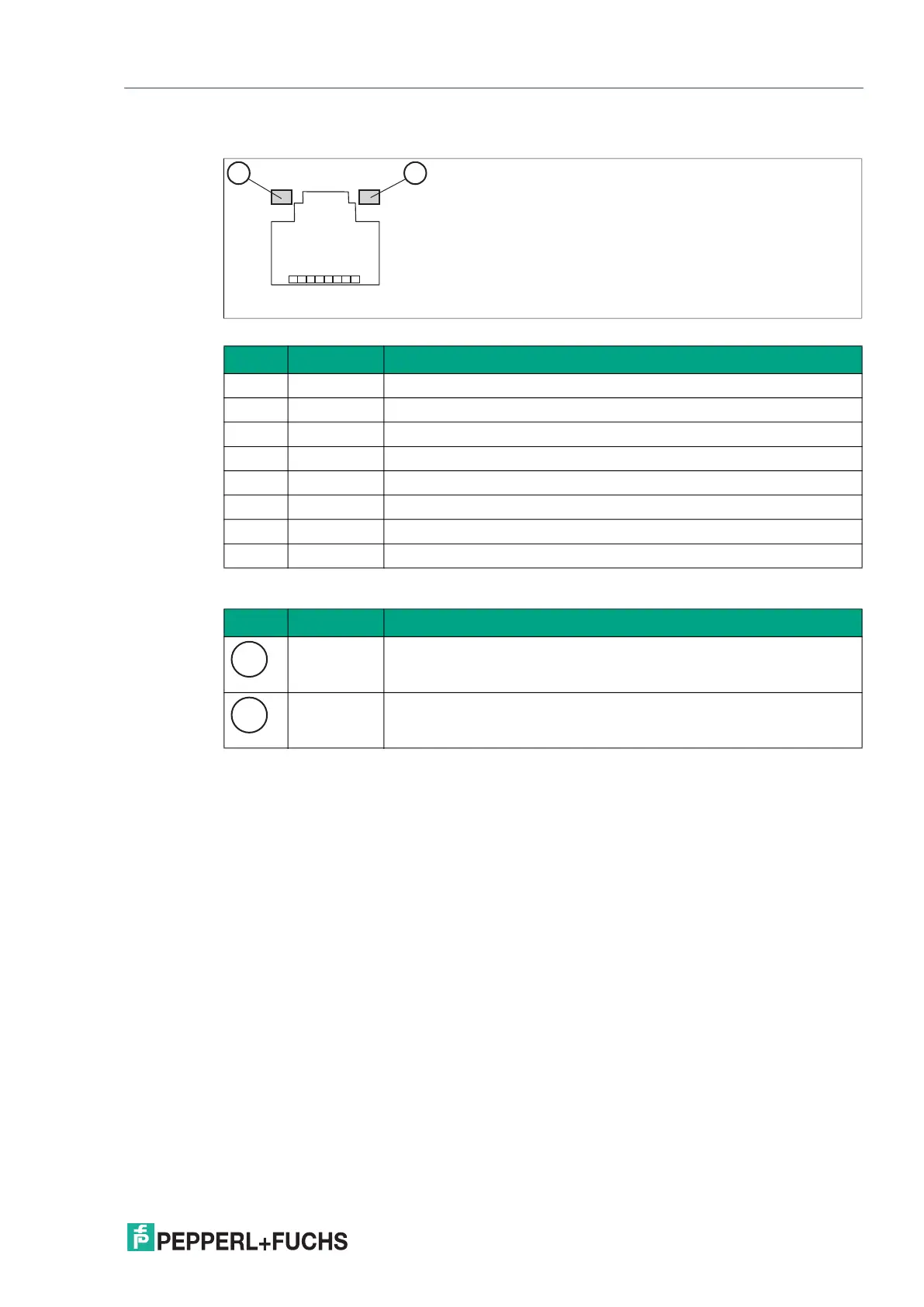

Ethernet Port
Figure 3.21
LED Indicator
Pin Type Description
1 BI_DA+ Bidirectional data A+, input/output
2 BI_DA- Bidirectional data A-, input/output
3 BI_DB+ Bidirectional data B+, input/output
4 BI_DC+ Bidirectional data C+, input/output
5 BI_DC- Bidirectional data C-, input/output
6 BI_DB- Bidirectional data B-, input/output
7 BI_DD+ Bidirectional data D+, input/output
8 BI_DD- Bidirectional data D-, input/output
No. Type Description
Orange LED On: port is active, no data exchange.
Flashing: port is active, data exchange.
Off: port is active.
Green LED Off: 10 Mbit/s connection
Flashing: 100 Mbit/s connection
On: 1 Gbit/s connection
18
1 2
1
2
