8 Using a nut spinner or spanner of size M3.5 undo the four nuts holding
the coin acceptor and remove coin acceptor keeping all fixings.
9 Fit new coin acceptor supplied using retained fixings ensuring earth is
correctly fitted. Tighten securely. Refit circuit board(s) and 5-way
connector ensuring correct connection (Figures 15 and 16).
10 Refit spade terminals ensuring correct connection and remove
retaining clip from bottom of new coin acceptor (Figures 15 and 16).

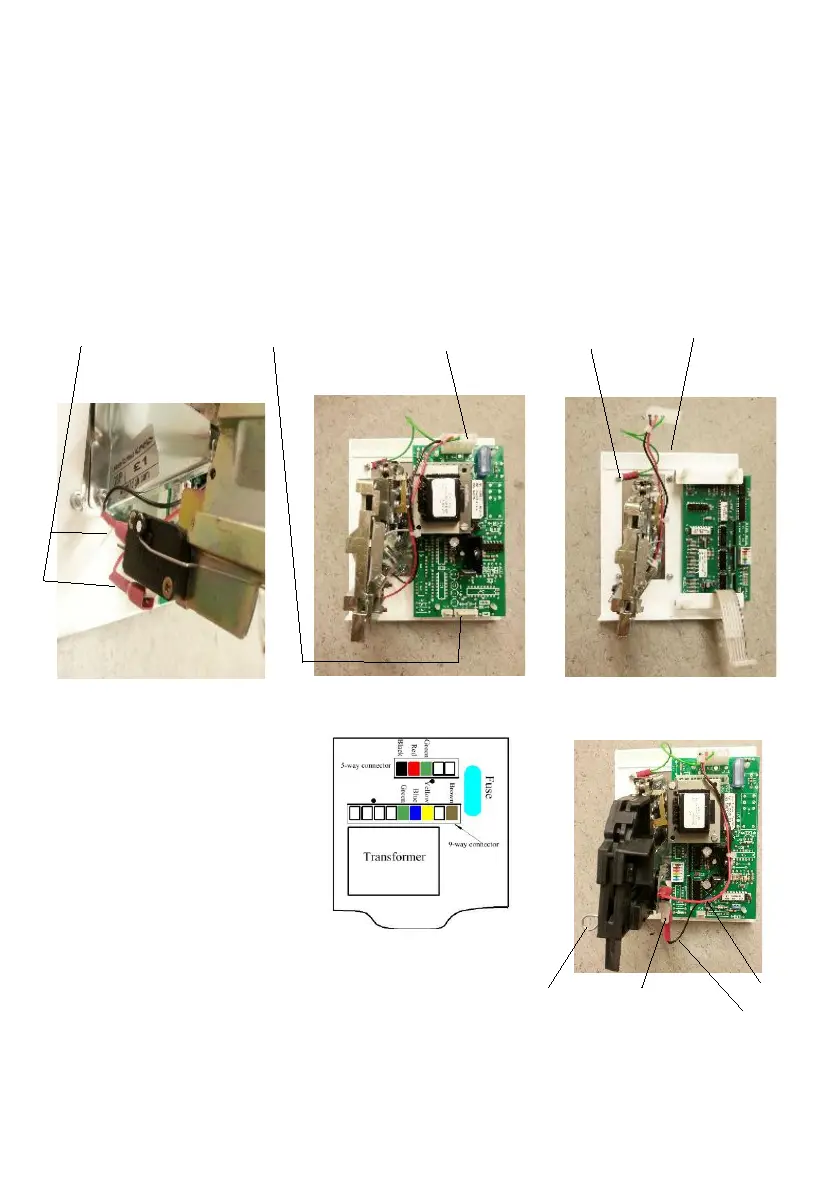

Spade Optional 7-way 5-way Earth Coin
terminals connector connector connection acceptor
fixings
Figure 12 Figure 13 Figure 14
Figure 15
12 Insert and lock the cash box.
Figure 16
13 Switch on the electricity supply.
11 Refit front panel
making sure the nine
way connector is the
correct way round
(Figure 16) and the top
of the front panel is
located in top lip of the
case. Replace the
recessed screw making
sure the screw head is
flush with the front panel
but do not over-tighten.
Remove clip Not connected Red
Black
