There are 3 key installation points that must be adhered to for proper operation.
1.
The In deck filter module must be installed at a level of where the pool water is
equal to the bottom of the BLACK COUPLER.
THIS IS THE MOST
CRITICAL INSTALLATION POINT
2. Conduit must be run from the In Deck Filter module to the Generator assembly
located at the equipment pad. Since time to time this conduit will have water/
moisture in it, it needs to be properly glued the entire length.
3. The Water Inlet (suction—middle pipe on filter base) should be located as low in
the pool wall as possible. The Water Return ( outside pipe on filter base) should
be located as high as possible on pool interior wall.
THE MOST CRITICAL INSTALL POINT IS MAKING SURE THE POOL WATER
LEVEL IS ALIGNED WITH THE BOTTOM OF THE BLACK COUPLER ON THE
FILTER MODULE
INSTALLATION MANUAL
IN DECK FILTER MODULE INSTALL INSTRUCTIONS
18 North Dollins Ave, Orlando, FL 32805 Tel/Fax: 855-996-6900
nspdevelopment.com

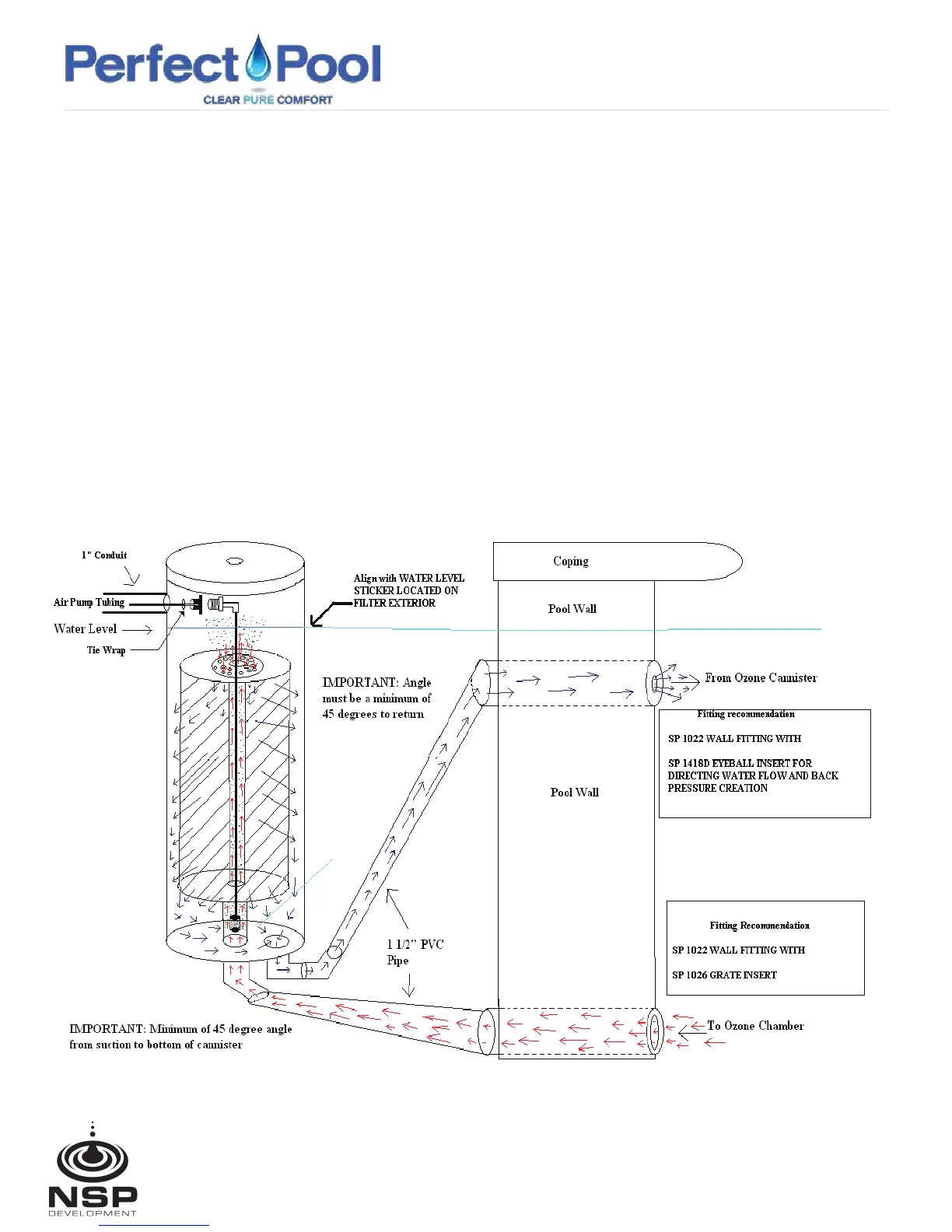

Pool Water Level should
align with bottom of
Black Filter Coupler
To Next Page
