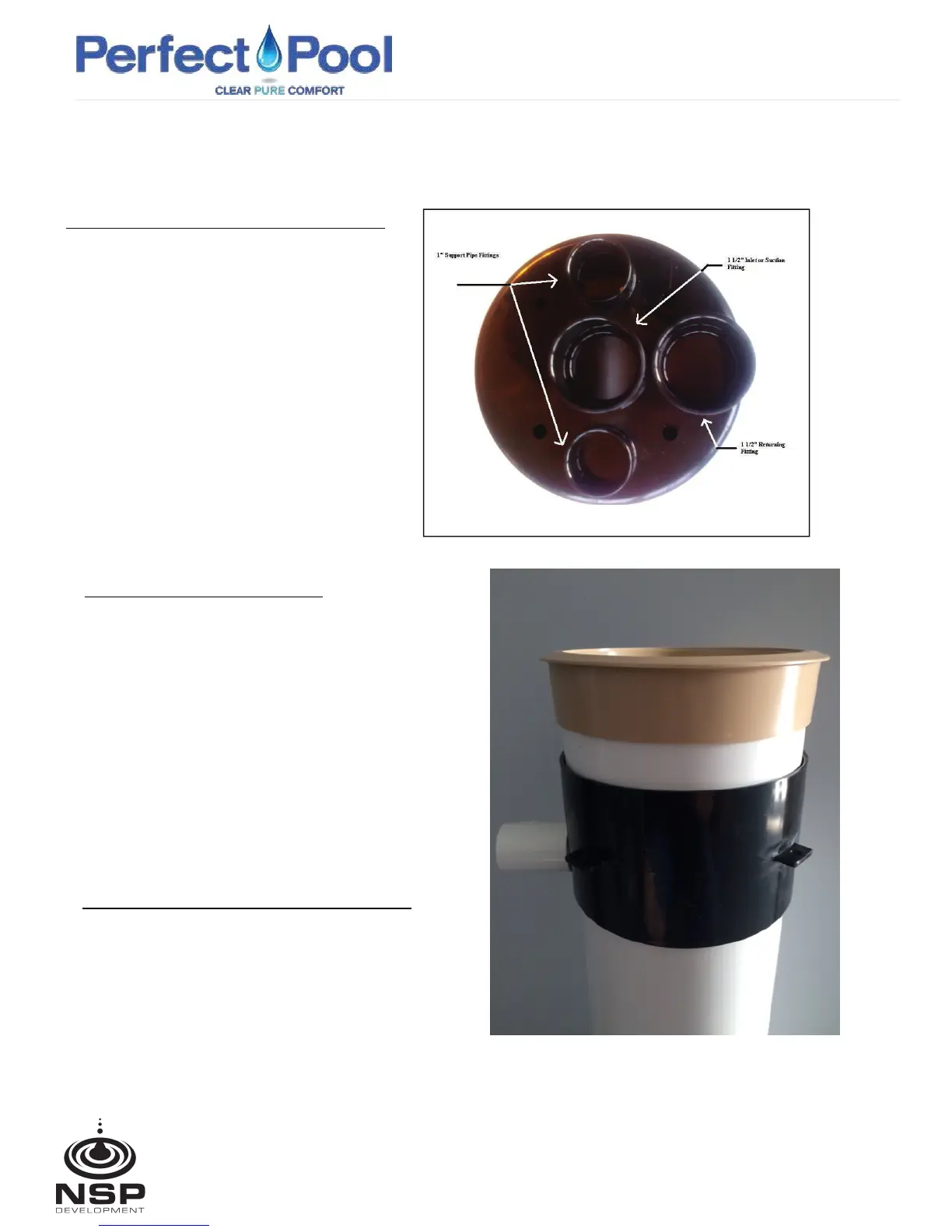

THERE ARE 4 C
ONNECTION ON FILTER BASE
1. 1 1/2" Inlet fitting - this is located in the direct
center of
the Filter BAse
2.
1 1/2
” Return fitting located on the extreme
outside of filter base.
3.
T
h
ere a
re 2—1” fittings that are b
locked off.
They do not pass into the interior of filter base.
INSTALLATION MANUAL
IN DECK FILTER MODULE INSTALL INSTRUCTIONS
18 North Dollins Ave, Orlando, FL 32805 Tel/Fax: 855-996-6900
nspdevelopment.com
1
2
SECURING FILTER MODULE
There are 4 TABS located in the center
area of the Black Coupler or Collar. 2
of the are shown here. These TABS are
to be used to secure the Filter Assembly
to rebar used in the deck area.
By securing the filter module to rebar
you can also ensure that the POOL
WATER LEVEL aligns with the bottom
of the Black Coupler.
POOL WATER LEVEL ALIGNMENT
ADJUSTING TO DECK POUR HEIGHT
The collar on the top of the Filter
Module is not glued and can be raised
and tilted to match deck level around
pool area.
1
2
3
These 1" glue fittings provide the ability to
glue in 1" pipe to be used as support pipes
for the filter module itself.
To Next Page
