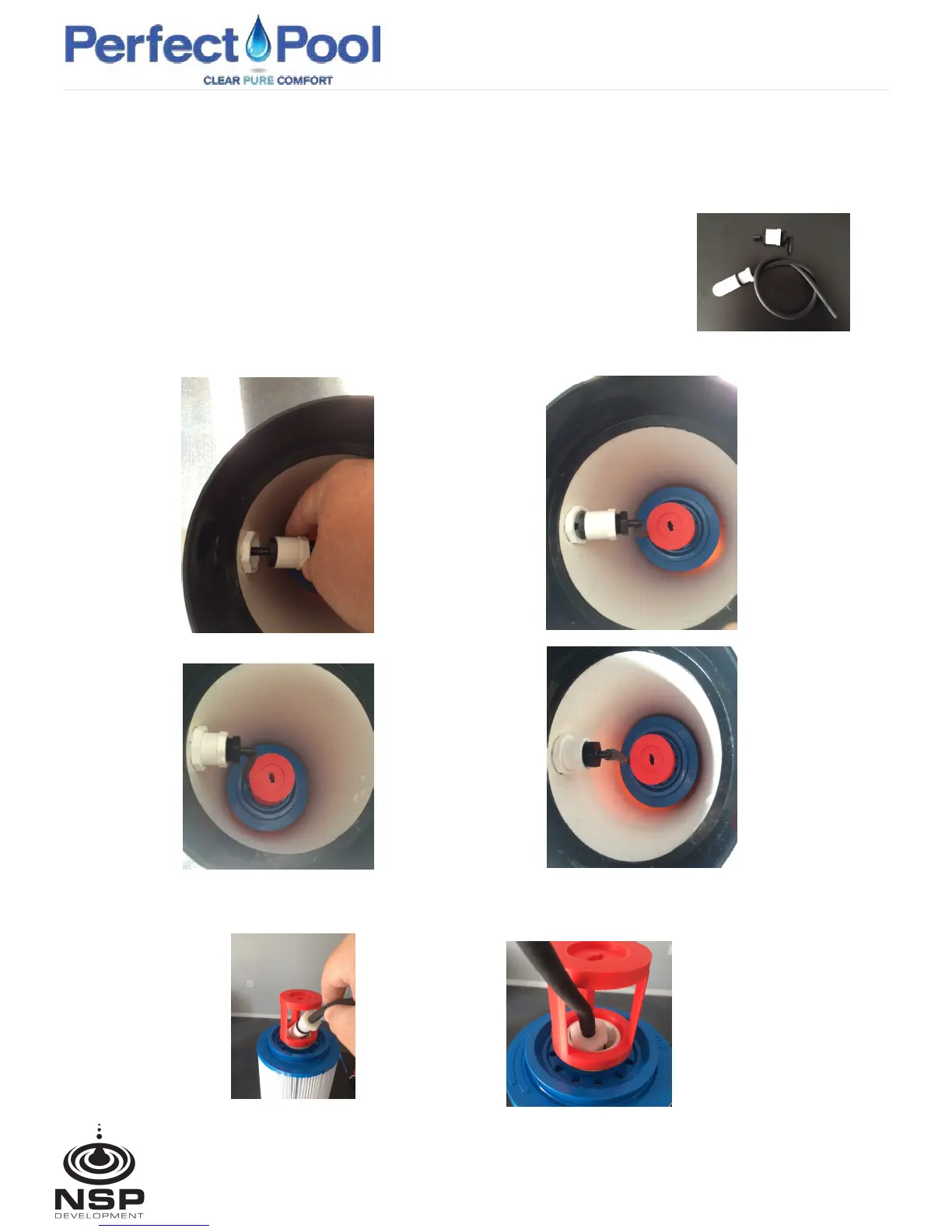

1.
Attach tubing to Straight barb fitting co
ntained in bag.
2.
Secure tubing to barb with enclosed hose clamp.
3.
Run 1
” conduit from In Deck Filter to equipment pad or
w
he
r
ever Generator is located.
Make sure to use “sweep” fitting—no 90 degree elbows should be used as replacement of
tubing would be very difficult.
4.
Ru
n Tube f
rom In Dec
k Filter to Oxone Generator and attach to Check Valve
located inside Ozone Generator.
5.
Push Slip fitting with barb/hose into filter receiver fitting on
side wall.
6.
Thread in 90 degree fi
tting and attach diffuser and hose. Insert under Chlorine Cartridge "Birdcage" and
into the Filter cartridge 1 1/2" pipe. Make sure the diffuser is pushed down towards bottom of pipe.
INSTALLATION MANUAL
TUBING & DIFFUSER INSTALL INSTRUCTIONS
18 North Dollins Ave, Orlando, FL 32805 Tel/Fax: 855-996-6900
nspdevelopment.com
