# Description Qty. # Description Qty.

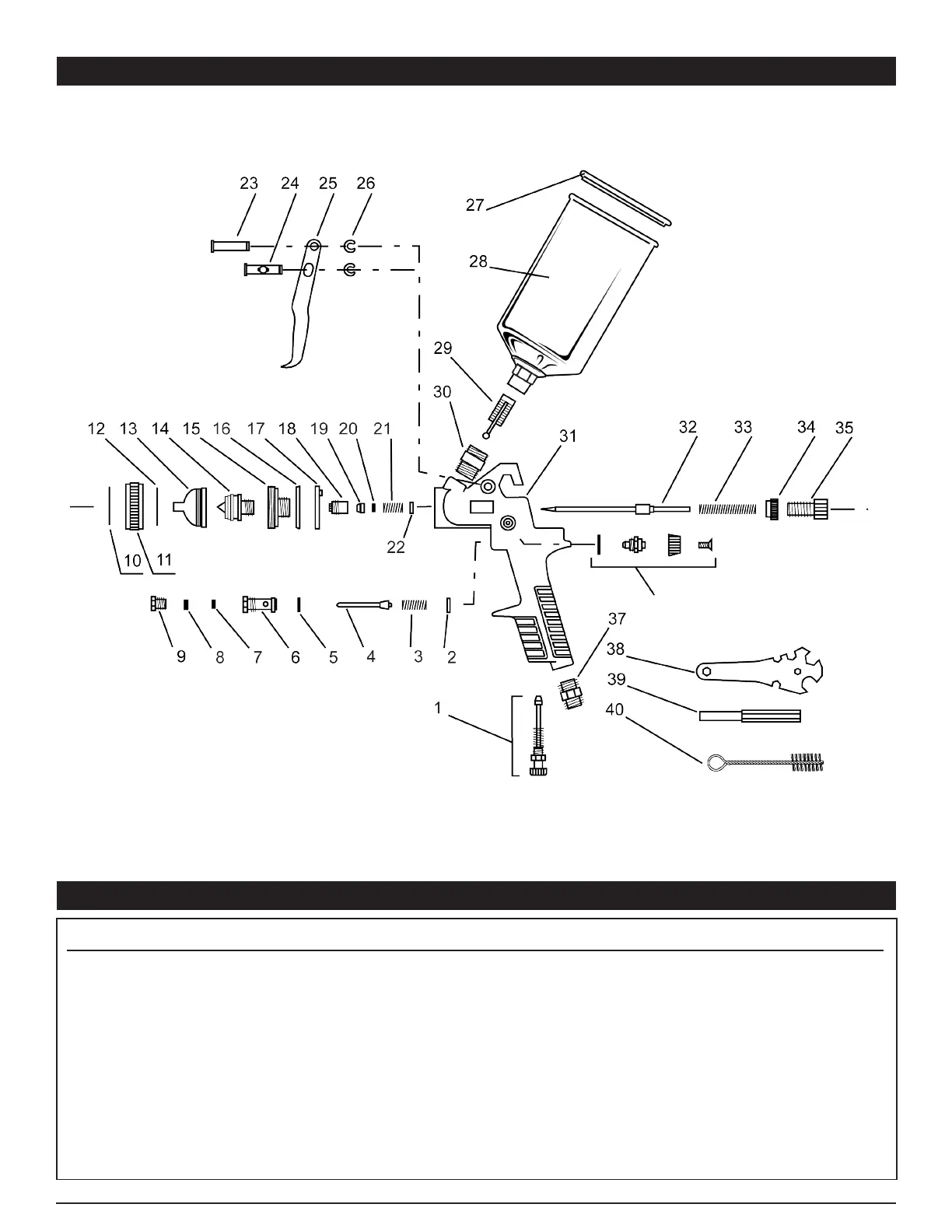

REPLACEMENT PARTS LIST
REPLACEMENT PARTS LIST
1. Air Adjustment Valve (6.5 x 1.9 mm) 1
2. Gasket 1
3. Air Valve Spring 1
4. Air Valve Piston Shaft 1
5. O-Ring (10.5 x 5.2 x 2.5 mm) 1
6. Air Valve Seat 1
7. O-Ring (6.5 x 1.9 mm) 1
8. Pliable Packing Washer 1
9. Air Valve Packing Nut 1
10. Air Cap Retention Ring 1
11. Air Cap Locking Ring 1
12. Air Cap Washer 1
13. Air Cap 1
14. Fluid Nozzle 1
15. Air Manifold 1
16. Tapered Washer (34.5 x 32.5 x 1.6 mm) 1
17. Air Manifold Spacer 1
18. Retention Screw 1
19. Paint Needle Washer 3
20. Sealing Washer 1
