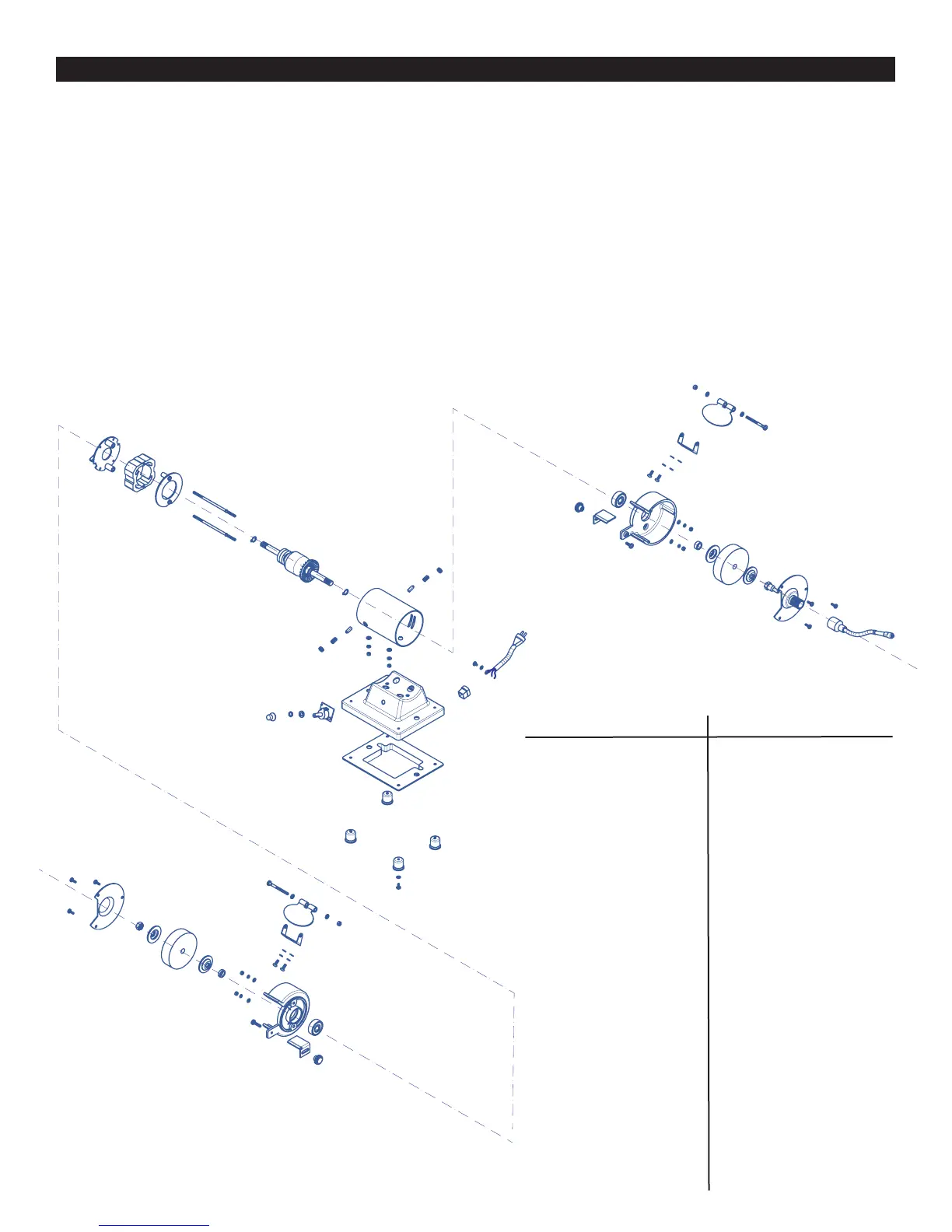

Item Description
1 Screw
2 Left Cocer
3 Nut
4 Wheel Flang
5 Fiber Wheel
6 Bearing
7 Spindle Coller
8 Flat Washer
9 Spring Washer
10 Nut
11 Screw
12 Left Wheel Cover
13 Left Tool Rest
14 Screw Nut
15 Screw
16 Spring Washer
17 Flat Washer
18 Eyeshield Bracket
19 Eyeshield
20 Screw
21 Flat Washer
22 Nut
23 Mounting Deck
24 Stater
25 Wind Screen
26 Screw
27 Jump Ring
Item Description
28 Roter
29 Motor Housing
30 Carbon Brush
31 Spring
32 Screw
33 Flat Washer
34 Spring Washer
35 Nut
36 Right Tool Rest
37 Right Wheel Cover
38 Grinding Wheel
39 Nut
40 Right Wheel Guard
41 Flexible Shaft
42 Base
43 Power Switch
44 Flat Washer
45 Nut
46 Switching Knob
47 Screw
48 Flat Washer
49 Cord & Plug
50 Cord Bushing
51 Base Plate
52 Rubber Foot
53 Flat Washer
54 Screw
MAINTENANCE
Dressing the Grinding Wheel
Note: New wheels frequently are not true and during operation will often become grooved, glazed (build up), out of round, or
misshapen. You will need a grinding wheel dresser for this operation (not included).
1. Stand to the side of the wheel for this operation.
2. If the wheel is new let it run for a minute with no load. If the wheel runs straight and true, you will not need to dress it prior to
operation. If it does not, proceed with the following instructions.
3. If you are using a "pistol grip" dresser,grip the handle firmly with one hand and the arm of the dresser with the other. Allow the wheel
to reach full speed. Use the tool rest to support your hand and the dresser, and evenly apply the dresser to all surfaces of the wheel.
The wheel can be dressed in a few minutes.
4. If you are using an "inline"dresser, hold the handle firmly, put the dresser on the tool rest so that its wheels can move freely (i.e.,the
exposed part of the wheel should be facing up ). Let the wheel reach full speed and apply the dresser evenly to all surfaces.
