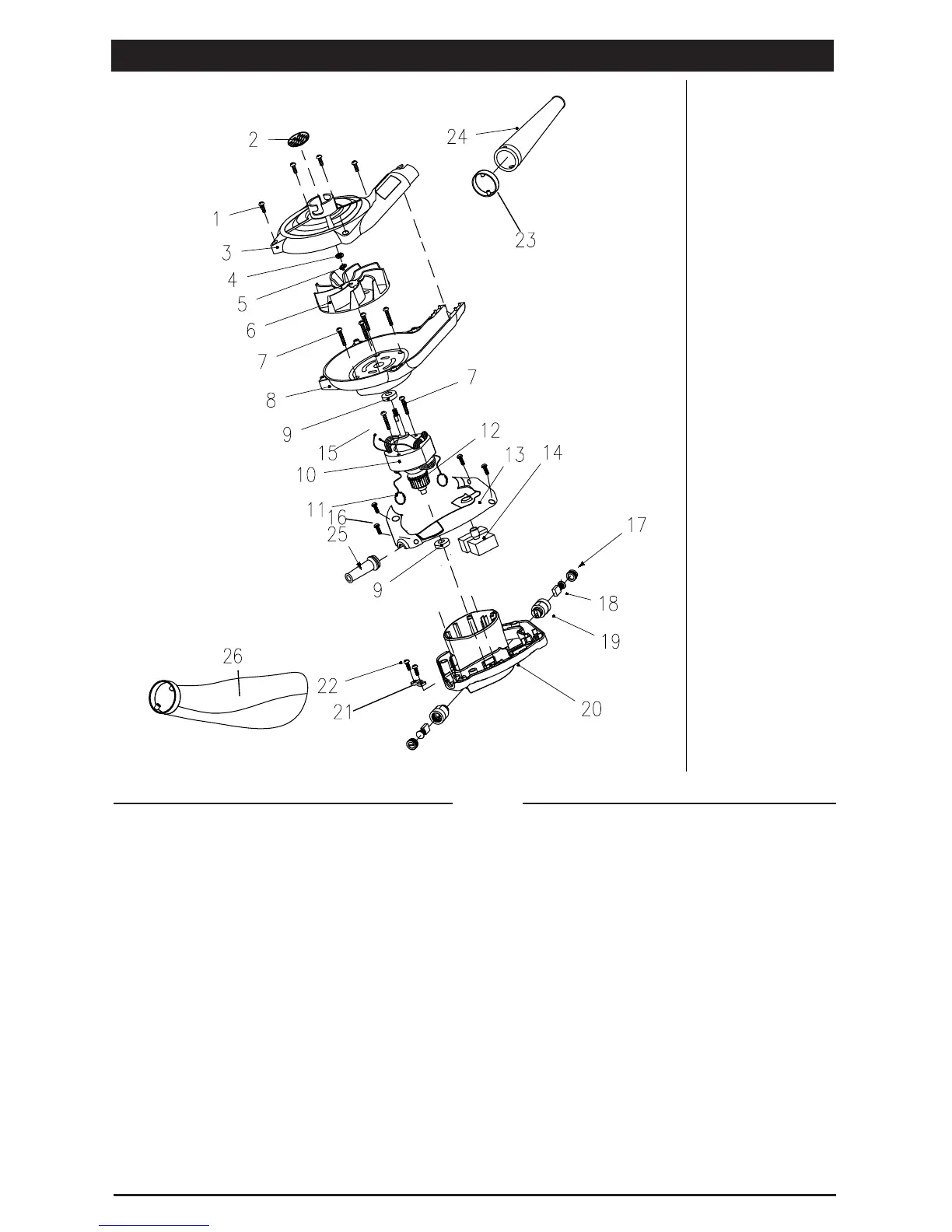

PARTS LISTING
4
No. Part Name Qty.
1 Screw ST3.9X16 4
2 Net cover 1
3 Left fan housing 1
4 Nut M6 1
5 Fan washer 1
6 Fan 1
7 Screw ST5X35 6
8 Right fan housing 1
9 Ball bearing 608 2
10 Stator 1
11 Connection spring 2
12 Armature 1
13 Handle cover 1
No. Part Name Qty.
14 Switch 1
15 Brass terminal 2
16 Screw ST3.9X14 4
17 Brush cover 2
18 Carbon brush 2
19 Brush holder 2
20 Motor housing 1
21 Cord clip 1
22 Screw ST3.9X12 2
23 Nozzle 1
24 Wind pipe ring 1
25 Cord sleeve 1
26 Dust bag assembly 1
