Performance Tool W54268 User Manual

5
1. Read and understand instruction before
beginning. Flush with water prior to use.
Use PTFE tape on all plastic threaded joints.

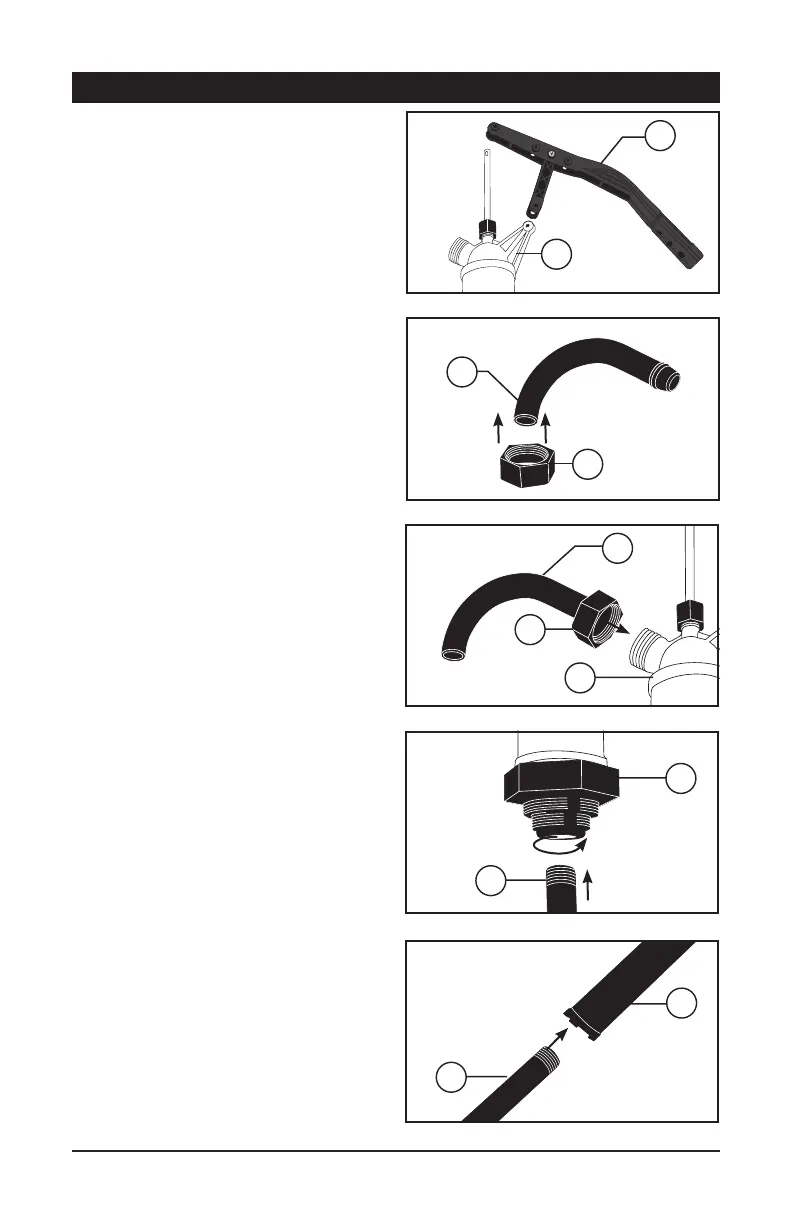

2. Connect the Handle (2) to the Pump Body
(1) and lift rod with Machine screws (5),
Lock Nuts (6) and Washers (7). See Fig. 1.
3. Slide Retainer Nut (4) onto Discharge
Spout (3). See Fig. 2.
4. Attach Discharge Spout (3) onto Pump
Body (1) using Retainer Nut (4). Make
sure to use PTFE tape. See Fig. 3.
5. Attach Suction Tube with Strainer (8) to
bottom of Pump Body (1). Make sure to
use PTFE tape. See Fig. 4.
6. To attach 24 in. telescopic suction tube
slide Suction Tube with Strainer (8) into
Base Suction Tube (10) and attach
Suction Tube with Strainer (8) into bottom
of Pump Body (1). Make sure to use
PTFE tape. See Fig. 5.
7. To attach 36 in. telescopic suction tube
attach 24 in. suction tube from step 6 to
Suction Extension Tube (9) and then
attach Suction Extension Tube (9) to
bottom of Pump Body (1). Make sure to
use PTFE tape.
ASSEMBLY INSTRUCTIONS
4
3
Fig. 2
Fig. 3
Fig. 4
3
4
1
8
1
Fig. 5
8
1
0
1
2
Fig. 1
