- 6 -
WARNING:
DO NOT PLUG IN POWER CORD TO POWER OUTLET, MAKE SURE PLUG IS
DISCONNECTED BEFORE ASSEMBLING THE WET/DRY VAC.

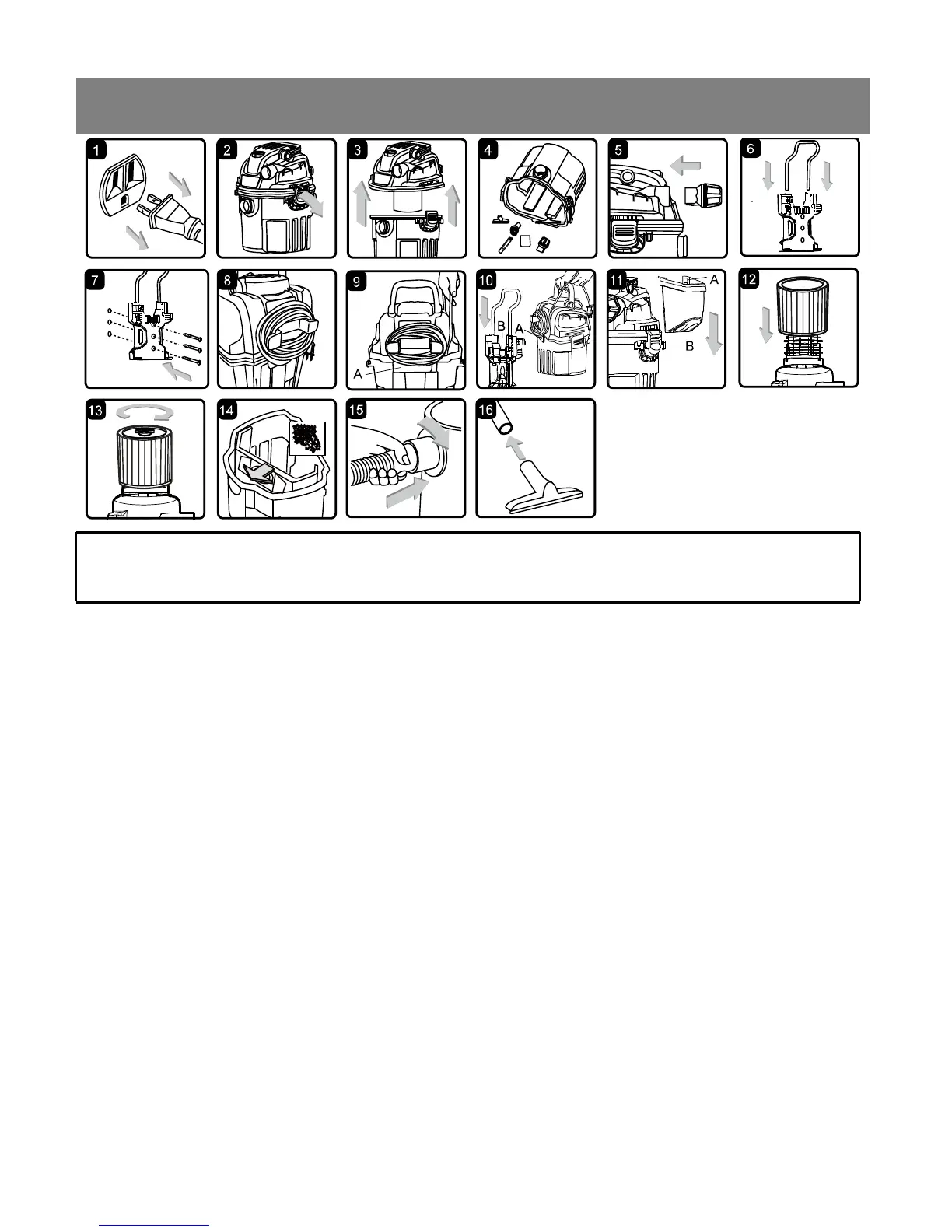

UNPACKING YOUR WET/DRY VACUUM & GENERAL ASSEMBLY
1. Verify that the power cord is disconnected from the outlet. (fig. 1)
2. Undo the latches. (fig. 2)
3. Lift the power head off of the container. (fig. 3)
4. Remove the contents from inside the container, make sure you have all contents as listed on page 5.
(fig. 4)
5. Replace the power head to the container and insert the noise diffuser into the blowing port. (fig. 5)
MOUNTING RACK AND STORAGE ASSEMBLY
IMPORTANT!
• Do not mount the rack over 5 feet from the floor.
• Do not screw the rack to drywall only. Secure the screws to a stud.
• Do not hang from or sit on the mounting rack
• Do not exceed 40 pounds of maximum weight limit.
6. Insert the hose holding rod into the two holes located on the top of the mounting rack. Make sure the
bend of the rod is directed away from the wall. (fig. 6)
7. Select a location on a wall stud that is not more than 20 feet away from an electrical outlet.
8. Align the three screw holes so that they are over a stud. Make sure the rack is level and mark the whole
locations. Make a 1/8-inch diameter pilot hole in each marked location. Secure the mounting rack to the
wall stud with the three screws provided. (fig. 7)
(!%""#$!"%& $!"
