4. DELAY TIME (Fig.2)
This Welding Helmet is featured with continuously adjustable delay time
control. The lens will lighten in 0.1 to 1.0 seconds upon ambient temperature
and shade setting. By turning the DELAY knob (on the rear of the cartridge)
clockwise, the delay time will increase from 0.1 seconds to 1.0 seconds.
Turn Knob counterclockwise for tack welding or production welding with short
welds. Turn Knob clockwise for welding at high amperage where there is an
after glow from the welding.
-5-
5. SELECT SENSITIVITY (Fig.3)
This welding helmet features continuously adjustable sensitivity control.
Sensitivity control knob is used to adjust how sensitive the auto darkening filter
reacts to the welding arc:
Turn the knob (on the back of the cartridge) clockwise when used for low
amperage welding (or stable ARC like DC-TIG), and the filter will become more
sensitive to welding arc.
Turn the knob counter-clockwise when used in brighter conditions except
for welding process that has very stable ARC like DC TIG, and the filter will
become less sensitive to welding arc.
NOTE: For DC-TIG applications, close to MAX positions of SENSITIVITY and
DELAY may be required according to your TIG amperage and welding
environment.

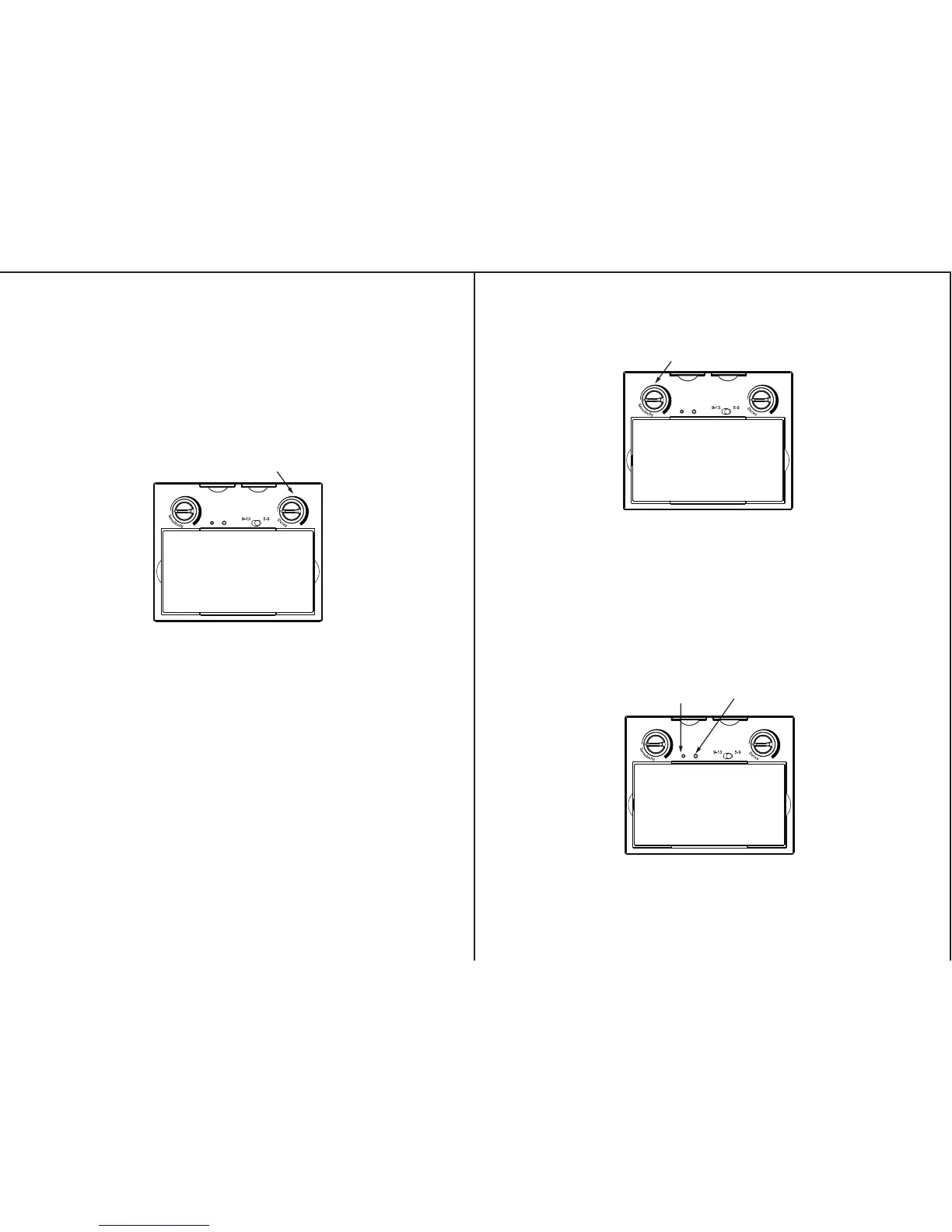

(Fig.2)
2
6.MEASUREMENT(Fig.4)
Battery Measurement
Press the button “Batt.”. If the LED does not light, you need to replace the
batteries.
Note: Do Not Use the helmet under condition of fault(or defective).
The lenses will turn dark when you press the button “Batt.” in Welding
Mode.
-6-
(Fig.4)
LED
“Batt.” Buttion
(Fig.3)
3
