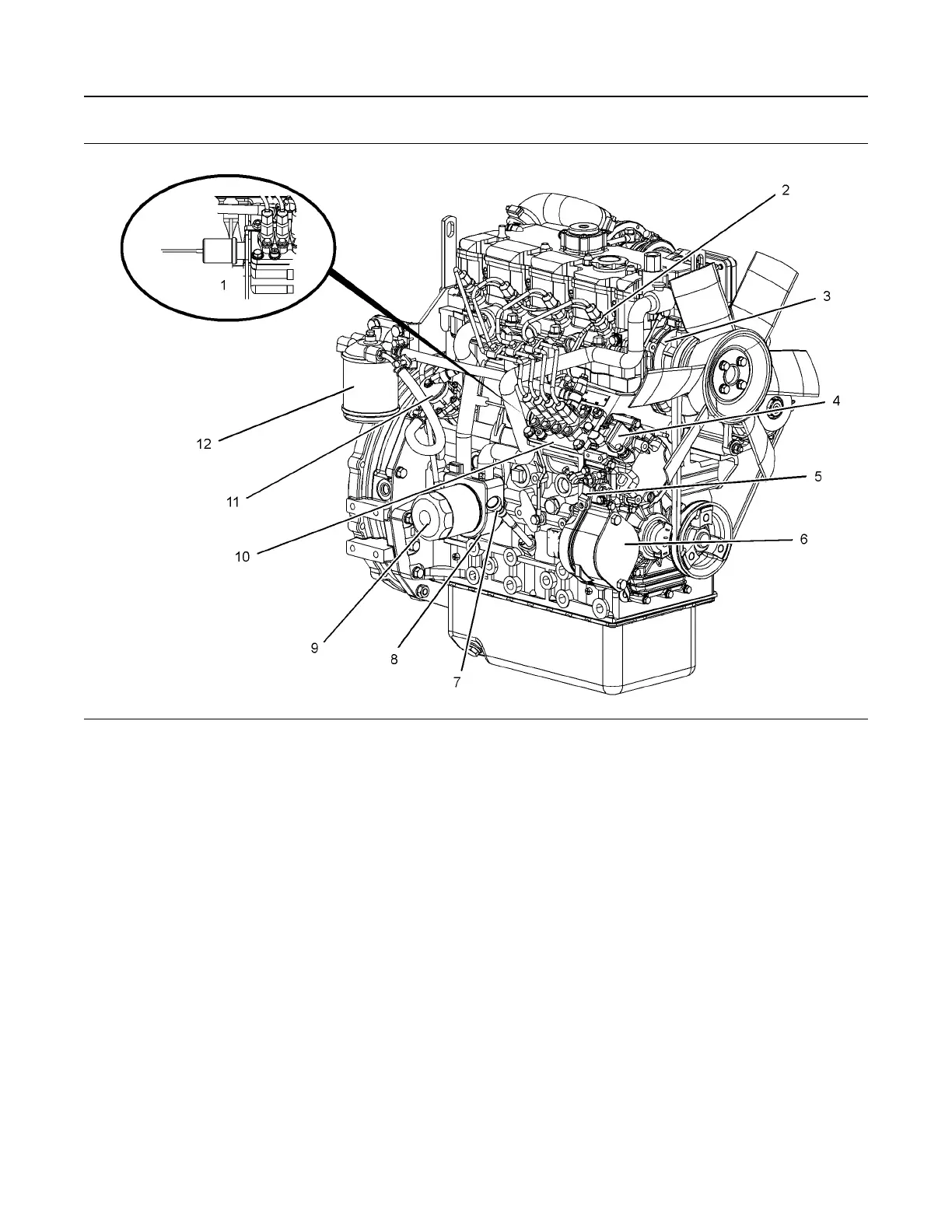

Illustration 13 g01304893
Front and right side view of the 404D-22T Engine
(1) Fuel shutoff solenoid
(2) Number one fuel injector
(3) Water pump
(4) Lower engine oil filler cap
(5) Throttle lever
(6) Cover plate for the accessory drive
(7) Engine oil level gauge
(8) Engine oil cooler
(9) Engine oil filter
(10) Fuel injection pump
(11) Transfer pump
(12) Fuel filter
SEBU8311-09
17
Product Information Section
Model View Illustrations
