403D-17 Engine

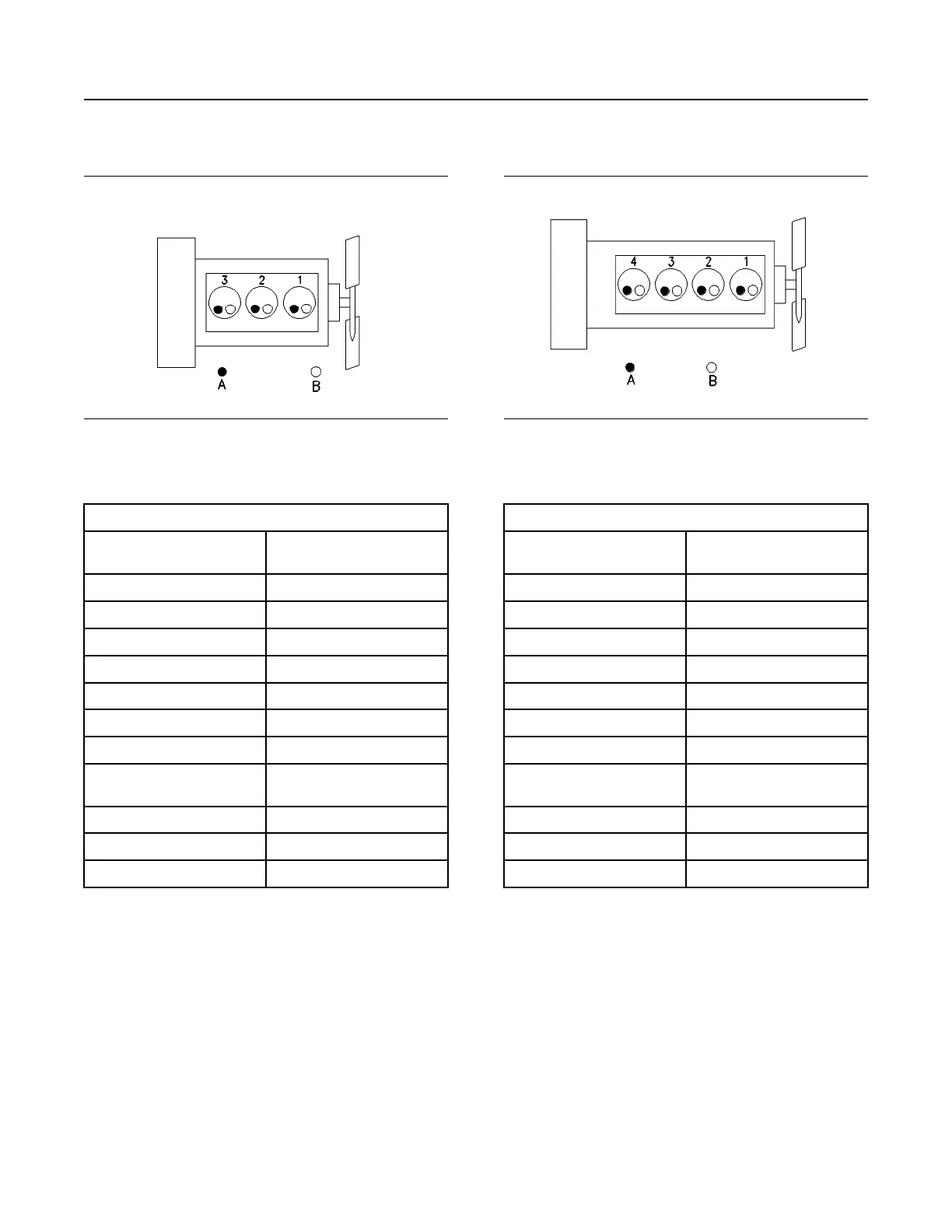

Illustration 21 g00852304
(A) Exhaust valves
(B) Inlet valves
Table 6
403D-17 Engine Specifications
Maximum Operating Speed
(rpm)
2600 rpm
Cylinders and Arrangement In-Line three cylinder
Bore 84 mm (3.31 inch)
Stroke 100 mm (3.94 inch)
Displacement 1.66 L (101.3 in
3
)
Aspiration
NA
(1)
Compression Ratio
23.1:1
Firing Order
1-2-3
Rotation that is viewed from the
flywheel
Counterclockwise
Valve Lash Setting (Inlet) 0.20 mm (0.008 inch)
Valve Lash Setting (Exhaust) 0.20 mm (0.008 inch)
Injection
Indirect
(1)
Naturally Aspirated
404D-15 Engine
Illustration 22 g00296424
(A) Exhaust valves
(B) Inlet valves
Table 7
404D-15 Engine Specifications
Maximum Operating Speed
(rpm)
3000 rpm
Cylinders and Arrangement In-Line four cylinder
Bore 77 mm (3.03 inch)
Stroke 81 mm (3.19 inch)
Displacement 1.508 L (92.024 in
3
)
Aspiration
NA
(1)
Compression Ratio
23.5:1
Firing Order
1-3-4-2
Rotation that is viewed from the
flywheel
Counterclockwise
Valve Lash Setting (Inlet) 0.20 mm (0.008 inch)
Valve Lash Setting (Exhaust) 0.20 mm (0.008 inch)
Injection
Indirect
(1)
Naturally Aspirated
