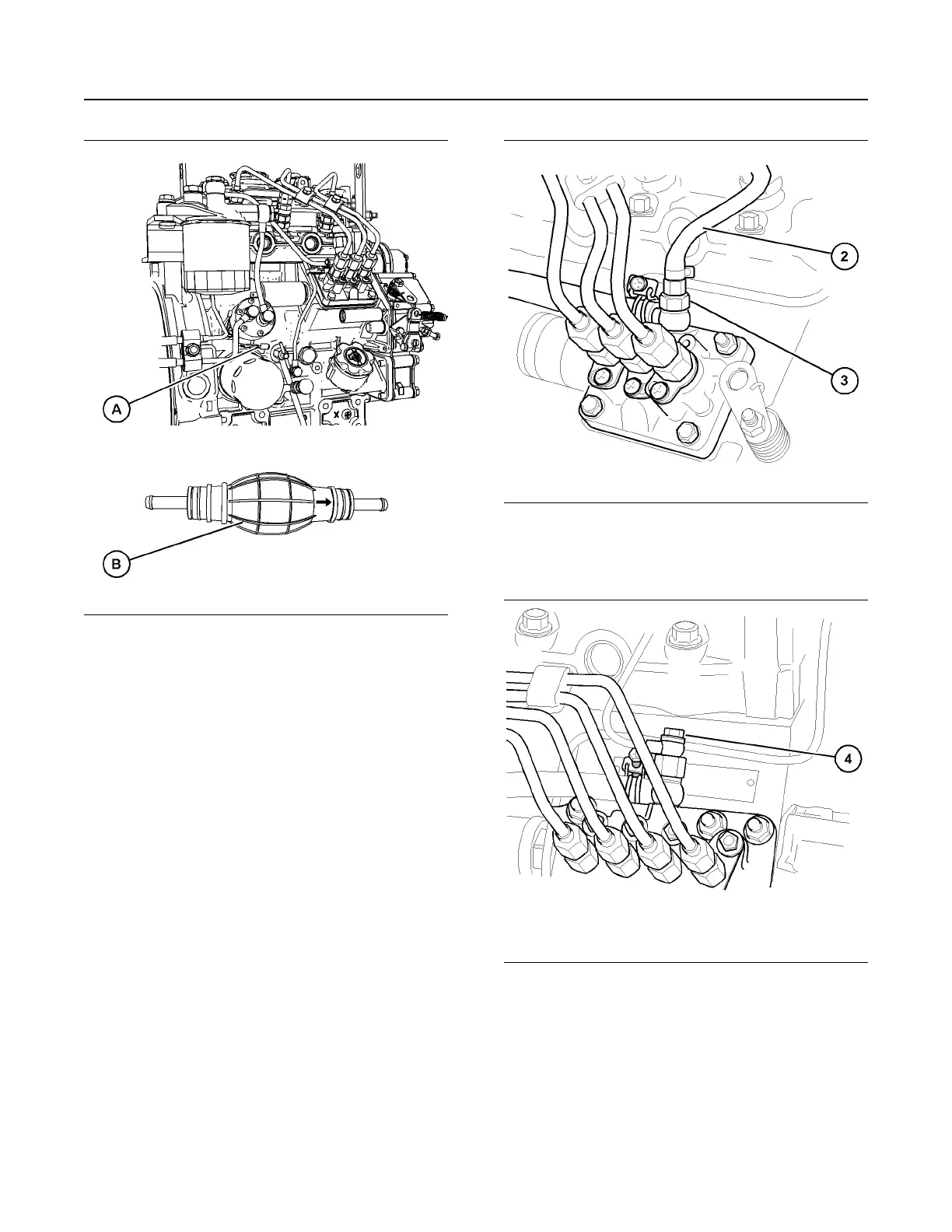

Illustration 66 g06518138
(A) Lift pump hand priming option (if equipped).
(B) Loose part hand priming option.
3. Operate the hand primer. Refer to illustration 66
4. When fuel free from air flows from the vent screw
tighten the vent screw.
Illustration 67 g06677660
Connector that is installed on 3 cylinder engines
(2) Fuel return hose for the injector
(3) Connector bolt
Illustration 68 g06677651
Connector that is installed on 4 cylinder engines
(4) Connector bolt
5. Loosen the connector (3) or (4) at the fuel injection
pump.
Note: For illustration 67 , the fuel return hose (2) may
need to be removed at the fuel injection pump.
M0132847 99
Maintenance Section
Fuel System - Prime
