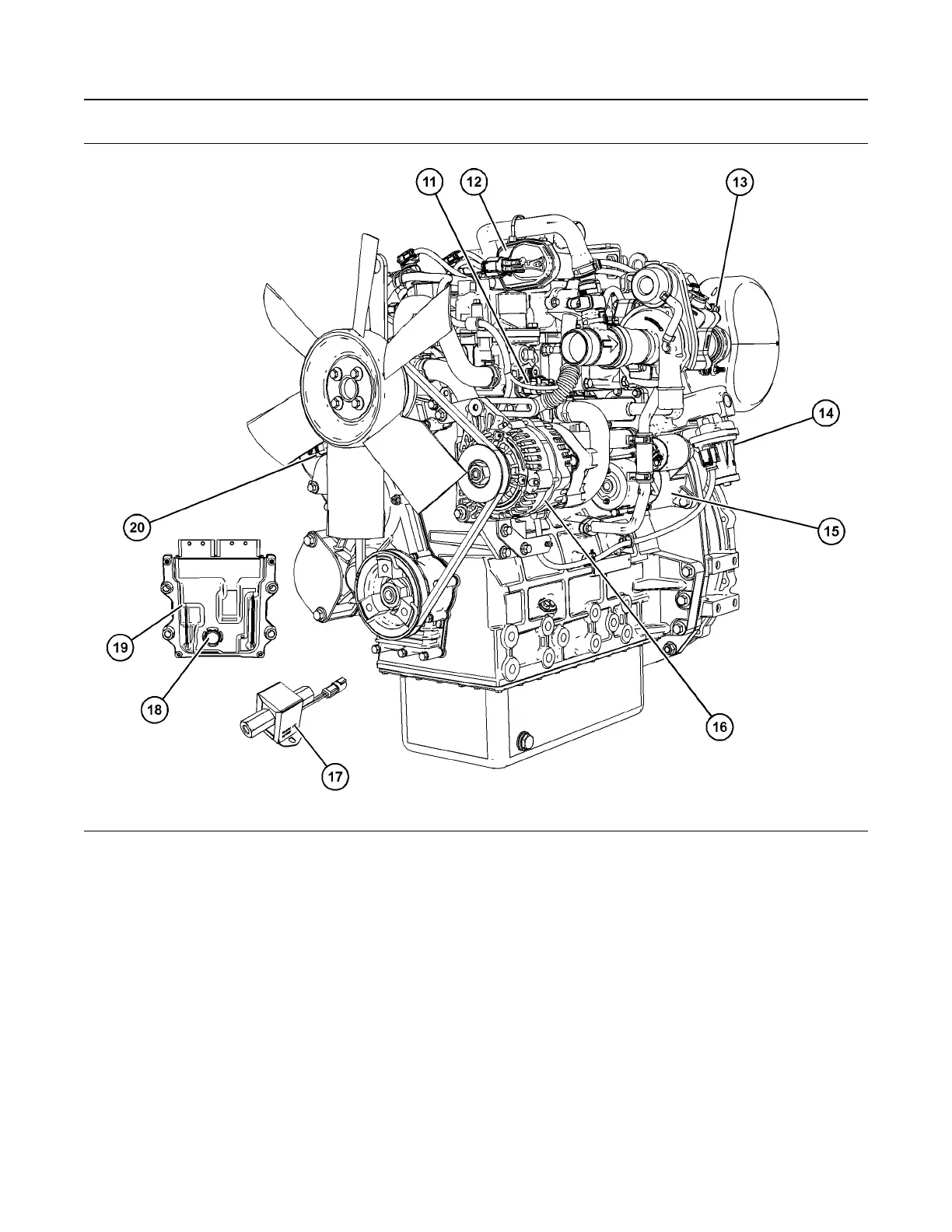

Illustration 37 g06310761
Typical example
(11) Coolant temperature sensor
(12) Throttle valve
(13) Diesel Oxidation Catalyst (DOC) inlet
temperature sensor
(14) NOx Reduction System (NRS) control
valve
(15) Starting motor
(16) Alternator
(17) Fuel priming pump
(18) Vent for atmospheric pressure sensor
(19) Electronic Control Module (ECM)
(20) Camshaft speed/timing sensor
M0094137-02 45
Operation Section
Sensors and Electrical Components
