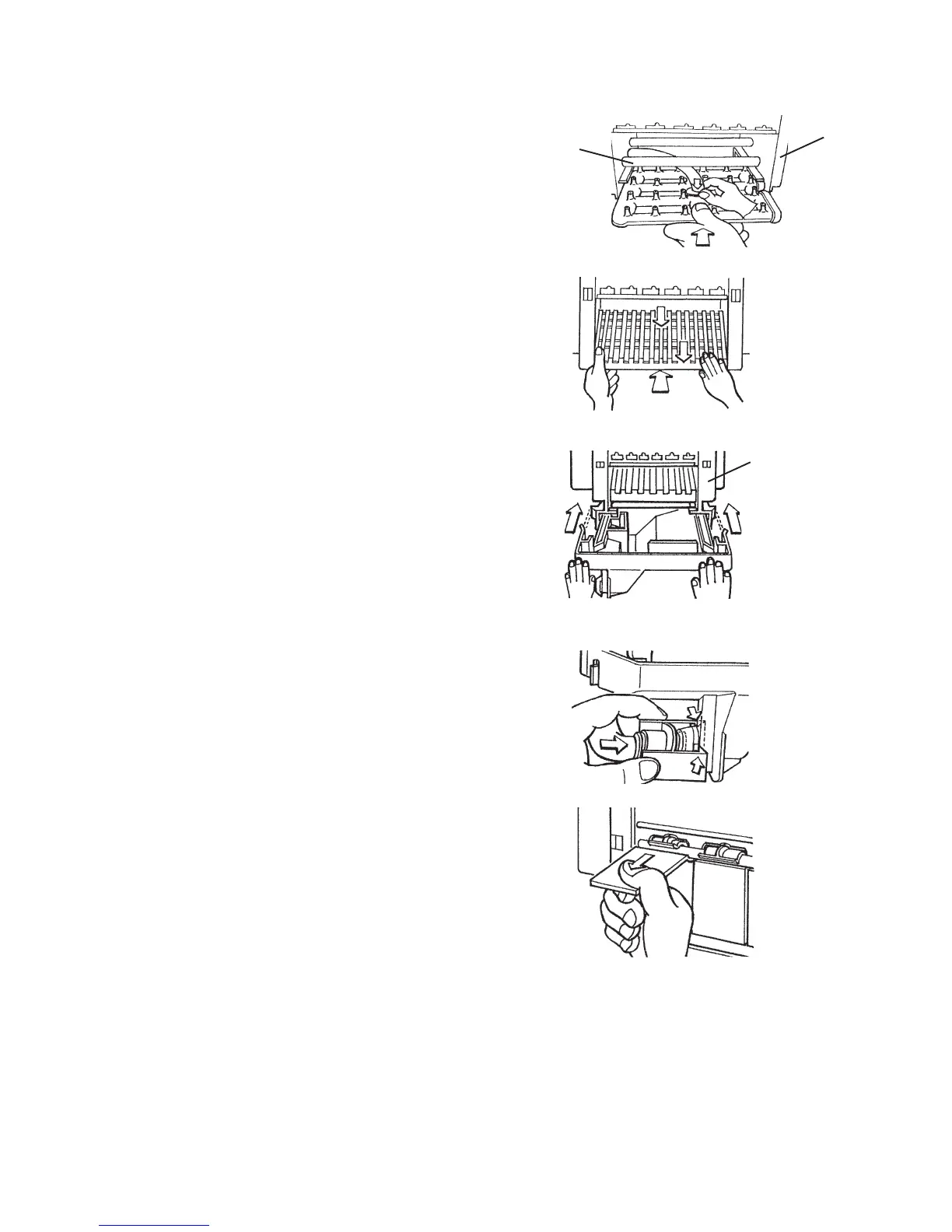

12) Slide in the spray assembly along the rails on
the right and left brackets. Refit the discharge
tube securely on the spray assembly. A loose
fitting may cause a water leak.
13) Position and lock the ice chute onto the front
and rear frame pipes by pushing the chute
down until it clicks onto both pipes.
14) Slide in the water tank along the rails at the
bottom of the right and left brackets until it
clicks into place.
15) Refit the suction tube onto the water tank inlet
by pushing the joint to lock it securely in the
direction of the arrows. A loose fitting may
cause a water leak.
16) Hook each separator onto the rail, and pull it
hard toward you until it locks in place with a
click. Refit all the separators in the same way.
17) Refit the slope in its correct position.
18) Close the water supply line shut-off valve.
19) Discard the sanitizing solution.
