Perlick H80CIM SERIES User Manual

PERLICK RESIDENTIAL UNDERCOUNTER CUBELET ICE MAKER PRODUCT MANUAL
18 | perlick.com/residential
INSTALLATION INSTRUCTIONS

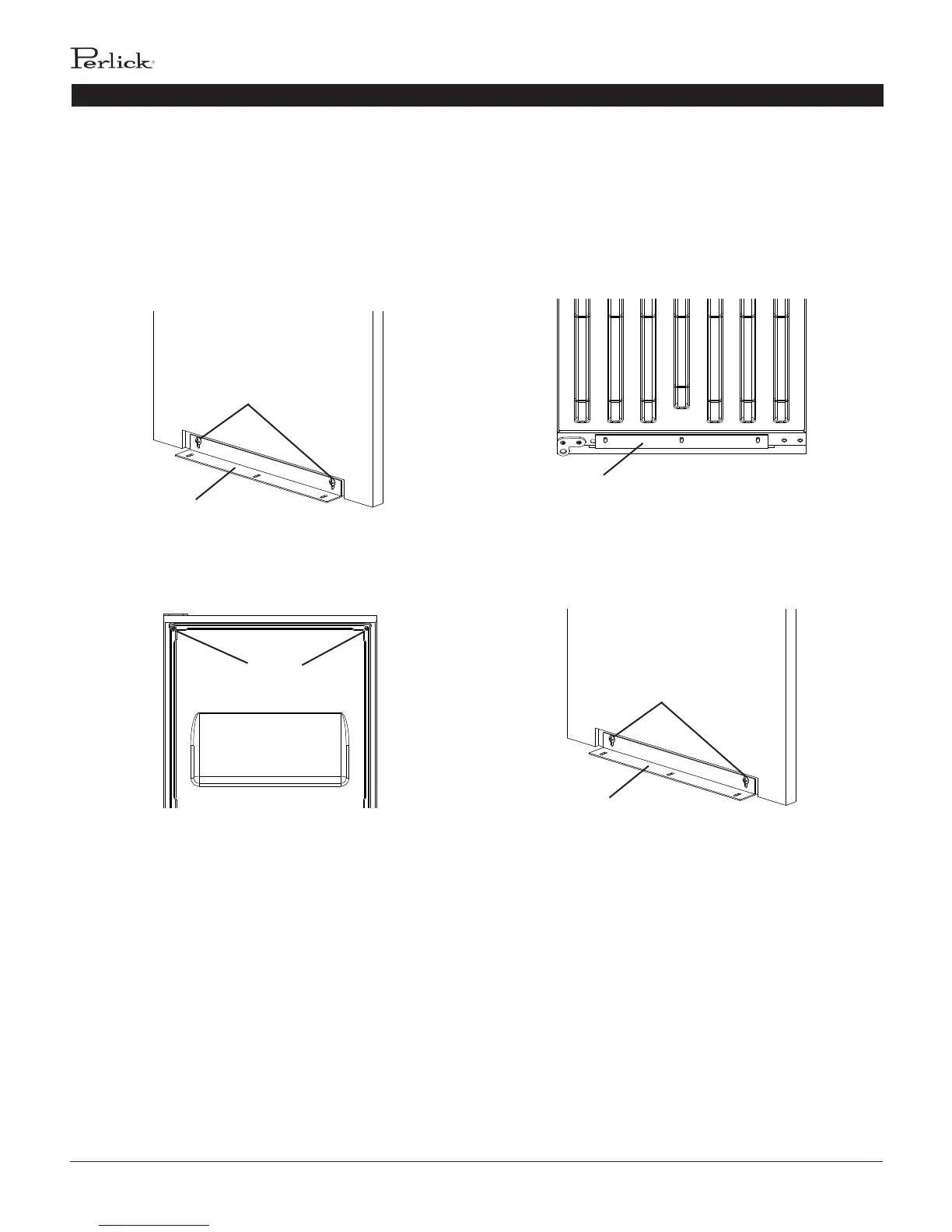

ATTACHMENT OF OVERLAY PANEL TO DOOR
1) Fasten the sheet metal bracket to the overlay panel
using the two M4×8 truss head screws provided. Snug
the screws, but do not ghten (See Fig. 13).
2) Temporarily fasten the overlay panel to the door using
2 of the M4×25 pan head screws provided (See Fig. 14).
Screws
Fig. 14
Fig. 13
Sheet Metal Bracket
Overlay Panel
Snug the screws,
but do not ghten.
3) Adjust the sheet metal bracket so that it is ush with
the boom of the door (See Fig. 15).
4) Remove the overlay panel from the door and ghten
the two M4×8 truss head screws securing the sheet
metal bracket to the overlay panel (See Fig. 16).
Door
Sheet Metal Bracket
Fig. 15
Sheet Metal Bracket
Overlay Panel
Tighten the screws.
Fig. 16
