Perlick HC24BB - Figure 8-1. HC24 RS & HC24 WS Wiring Diagram; Wiring Diagrams

Return to Table of Contents

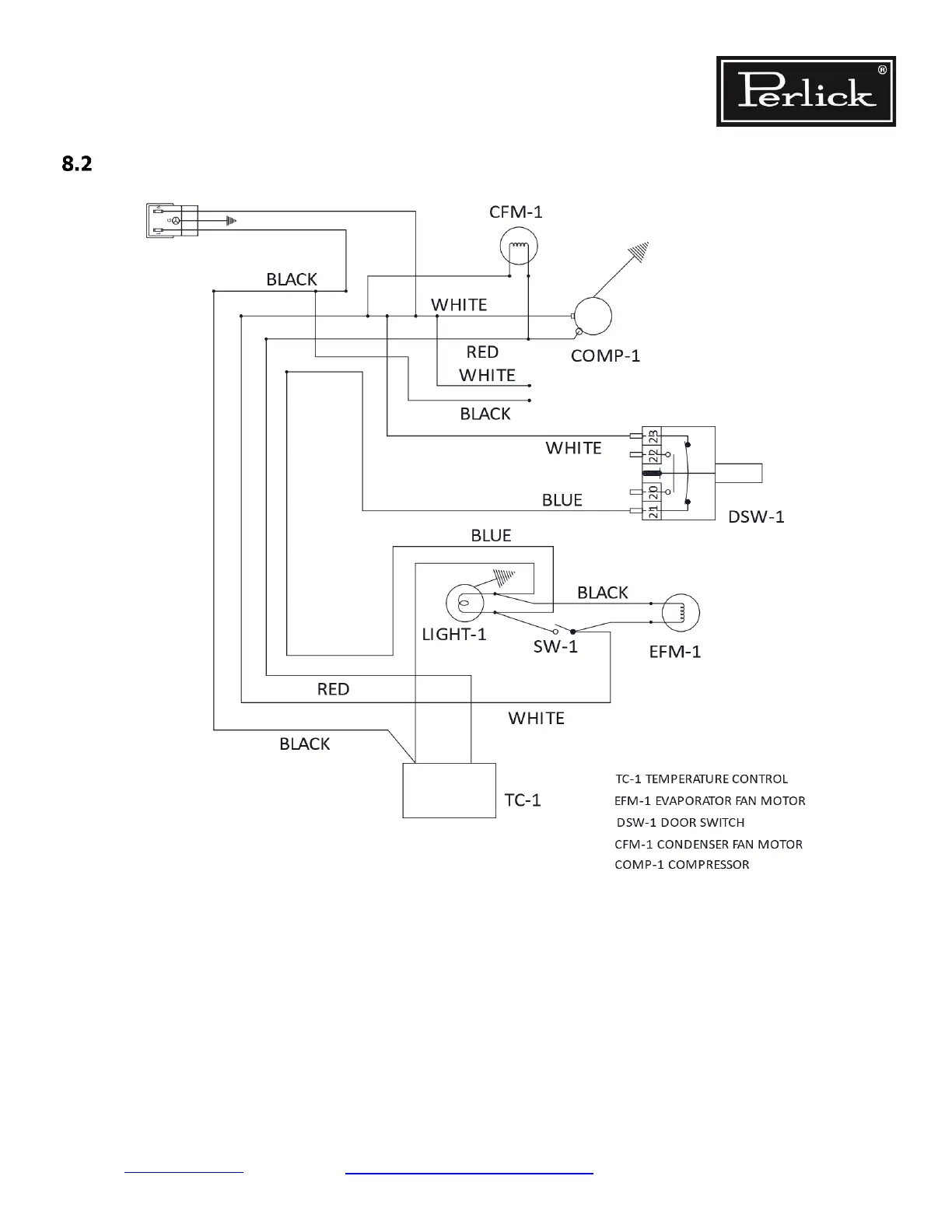

Figure 8-1. HC24RS & HC24WS Wiring Diagram
Residential Refrigeration
and Front Venting Commercial Refrigeration
Service Manual
Wiring Diagrams
Electrical System Repair Instructions Page 8-2
