8
Operation & Installation Manual
Signature Series (HP24 and HP48 models)
ANTI-TIP BRACKETS
WARNING
Unit may tip forward if loaded racks/shelves are all pulled
out at the same time. To prevent tipping and provide a stable
installation, the unit must be secured in place with the anti-tip
brackets provided with the unit.
A set of metal anti-tip brackets and necessary hardware is supplied
with the unit. The anti-tip brackets, when properly installed, should
secure the rear legs and prevent the unit from tipping forward.
Some installation sites may require modication to provide a secure
surface for attaching brackets. Refer to Figure 5 (right) and Figure
6 (below) for mounting bracket locations for 24” and 48” Signature
Series models.
IMPORTANT NOTE: If installing on a concrete oor, concrete
fasteners are required and are not included in the Anti-Tip Kit.

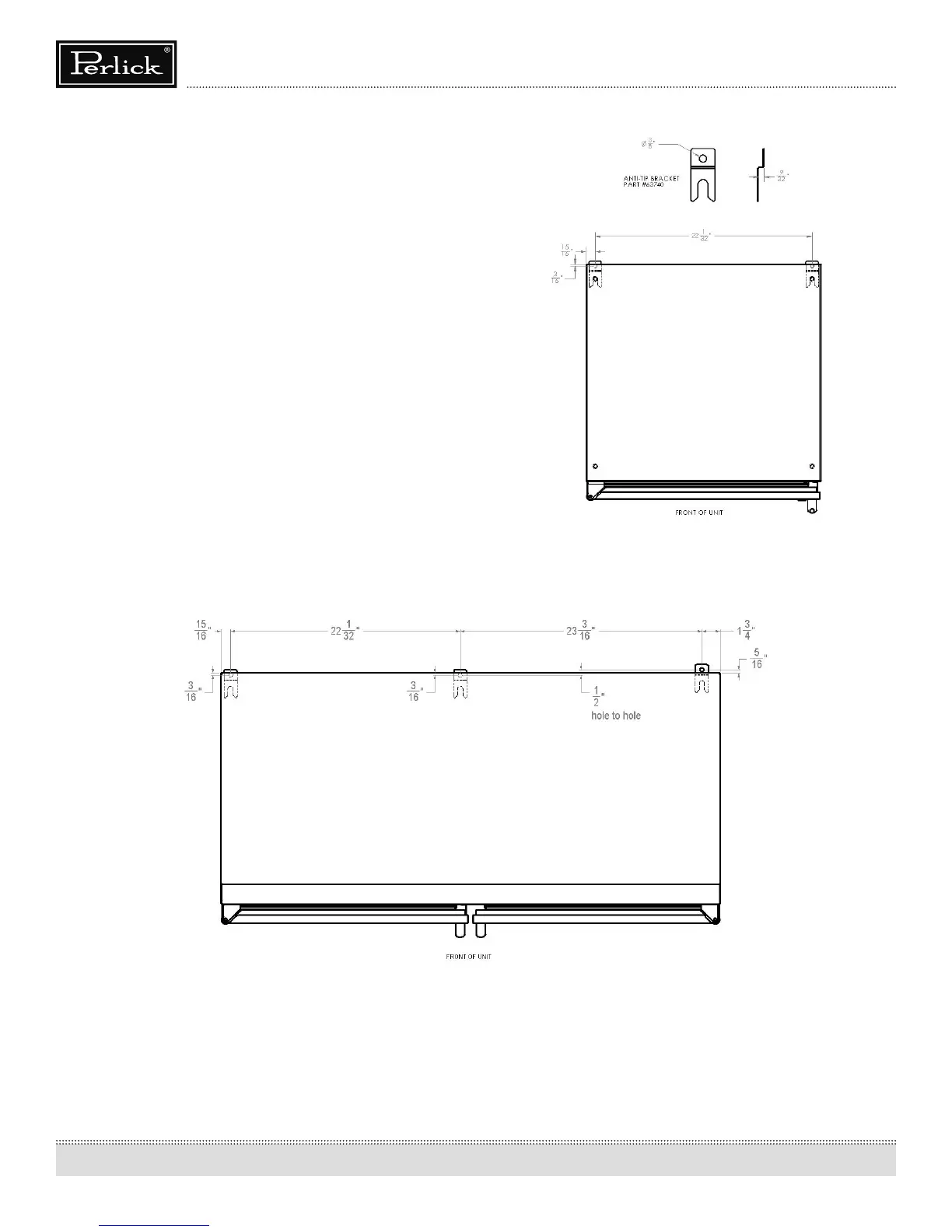

Figure 6 - 48” Anti-Tip Kit Drawing
Figure 5 - 24” Anti-Tip Kit Drawing
