Perlick SHALLOW-DEPTH Series Installation Instructions

PERLICK RESIDENTIAL UNDERCOUNTER INSTALLATION MANUAL
Perlick customer service (800)558-5592 | 9
5) Using the screws removed in step 3, install the top and
bottom hinge brackets from the kit (Fig. 9).
6) Remove the top and bottom door hinge brackets and
the push plunger brackets (Fig. 10). Retain the screws for
later use.

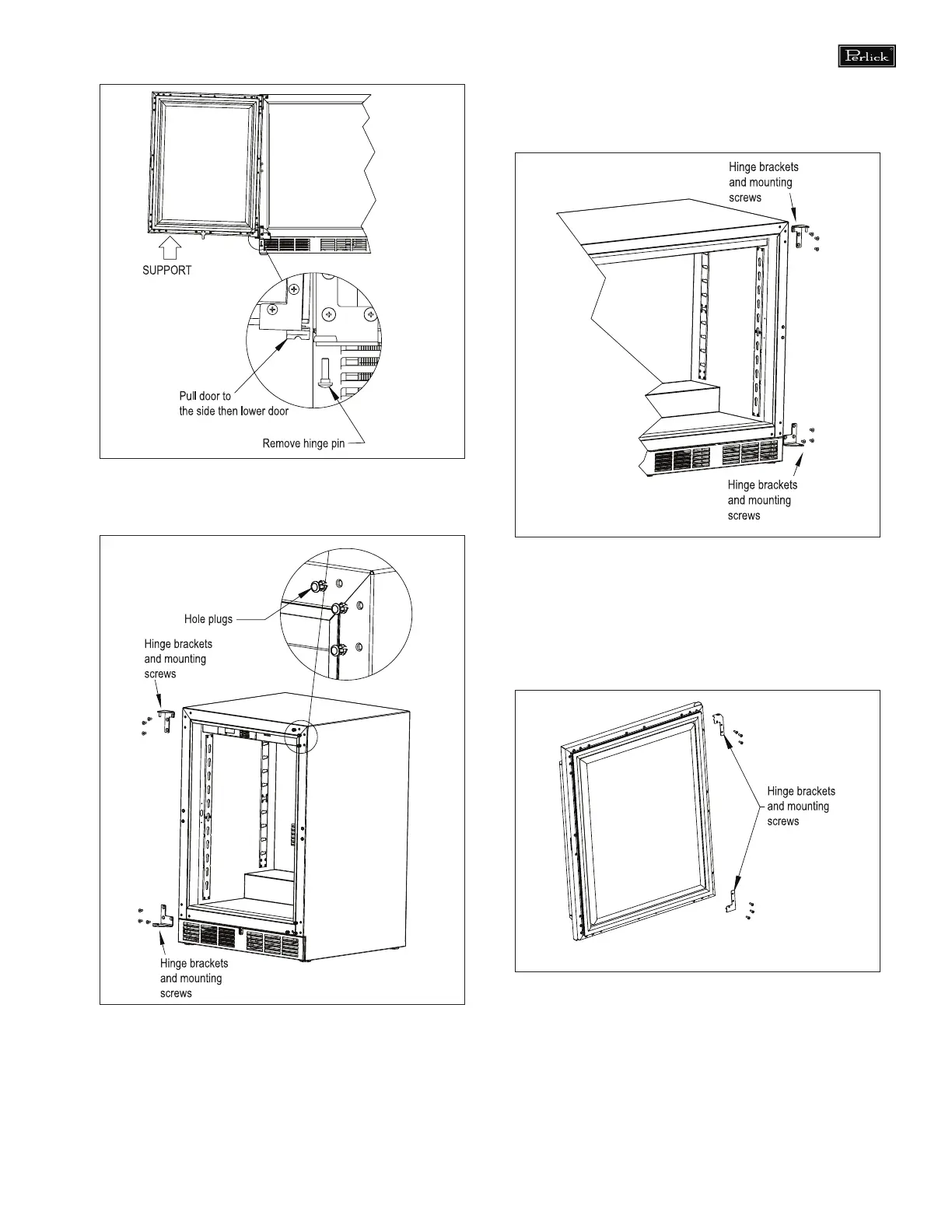

Figure 7. Door Removal
Figure 8. Hinge Removal
Figure 9. Hinge Installation
Figure 10. Door Brackets
