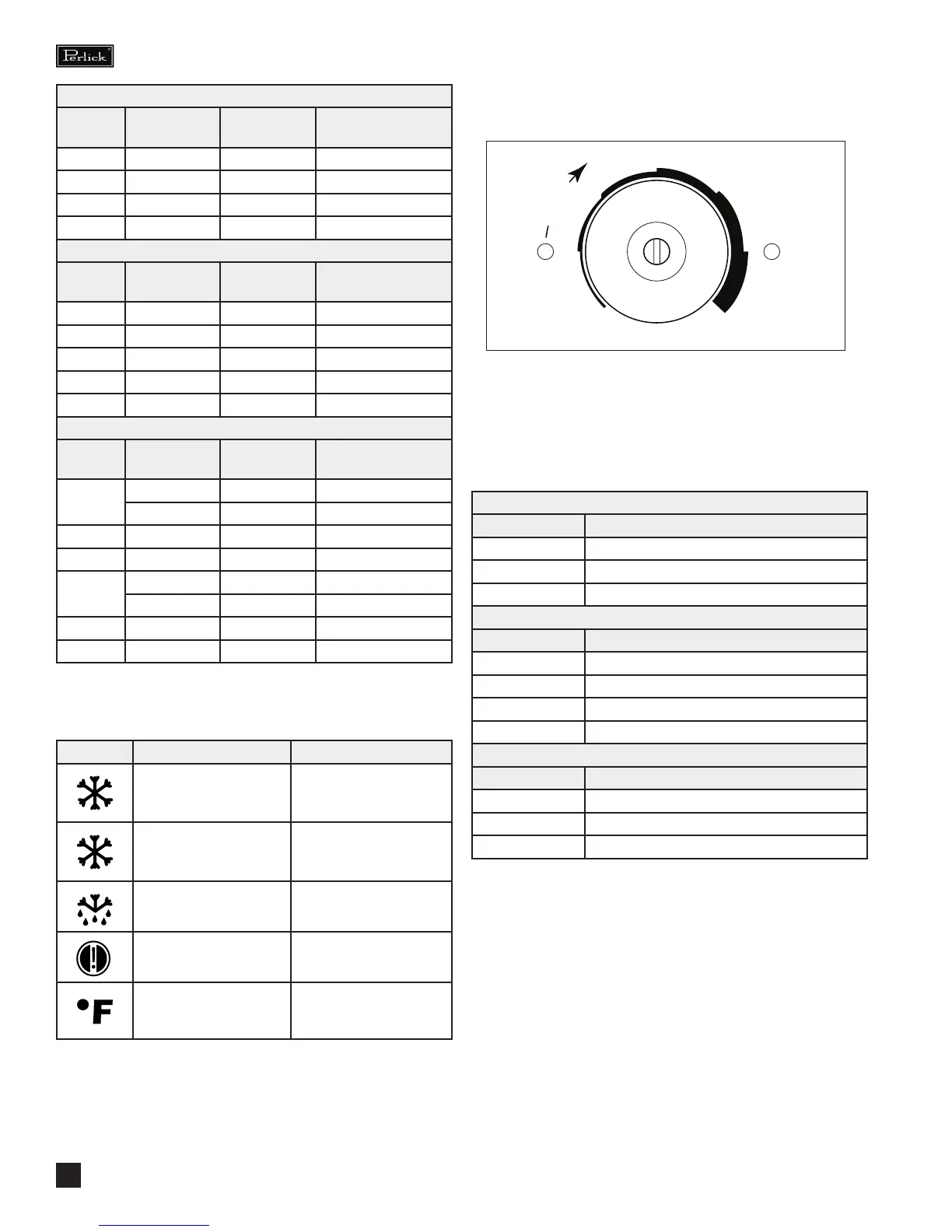

PERLICK RESIDENTIAL INSTALLATION MANUAL
6
perlick.com
Signature Series – HP15 Models
Model Min Temp Set Max Temp Set Factory Temp
Setpoint
HP15R 30° F 42° F 38° F
HP15B 30° F 48° F 42° F
HP15W 40° F 68° F 45° F
HP15T 30° F 42° F 38° F
Signature Series – HP24 Models
Model Min Temp Set Max Temp Set Factory Temp
Setpoint
HP24R 30° F 42° F 38° F
HP24F -10° F 10° F 0° F
HP24B 30° F 48° F 42° F
HP24W 40° F 68° F 45° F
HP24T 30° F 42° F 38° F
Signature Series – HP48 Models
Model Min Temp Set Max Temp Set Factory Temp
Setpoint
HP48FR
- 10° F 10° F Freezer - 0° F
30° F 42° F Refrigerator - 38° F
HP48RR 30° F 42° F 38° F
HP48RB 30° F 42° F 38° F
HP48RW
30° F 42° F Refrigerator - 38° F
40° F 68° F Wine Reserve - 55° F
HP48WO 40° F 68° F 45° F
HP48WW 40° F 68° F 45° F
LED Functions
The following table describes LED functions
LED Mode Function
ON Compressor is on
Flashing Anti-short cycle
delay is on
ON Defrost is on
ON Alarm is on
Flashing You are in the process of
programming the unit
DIAL TEMPERATURE CONTROL
C-Series, ADA-Compliant & Shallow-Depth Models
C
O
O
L
E
R
OFF
1
2
3
4
5
6
COLD
Figure 2. Dial Temperature Controller
Use a straight slot screwdriver to adjust the dial
temperature control. The control is located at the top rear
panel of the cabinet. Approximate temperature ranges are
as follows:
C-Series Models
Model Factory Temp Setpoint
HC24R 38° F
HC24BB 42° F
HC24WB 55° F
ADA-Compliant Series
Model Factory Temp Setpoint
HA24RB 38° F
HA24FB 0° F
HA24BB 42° F
HA24WB 55° F
Shallow-Depth Series
Model Factory Temp Setpoint
HH24RS 38° F
HH24BS 42° F
HH24WS 55° F
Adjust the temperature as follows:
Colder Temperature:
Turn the adjusting screw clockwise (to the right).
Warmer Temperature:
Turn the adjusting screw counterclockwise (to the left).
Temperature Control OFF:
Turn the adjusting screw completely counterclockwise to
the OFF position until a click is heard.
NOTE: The condenser fan motor turns o with the compressor.
