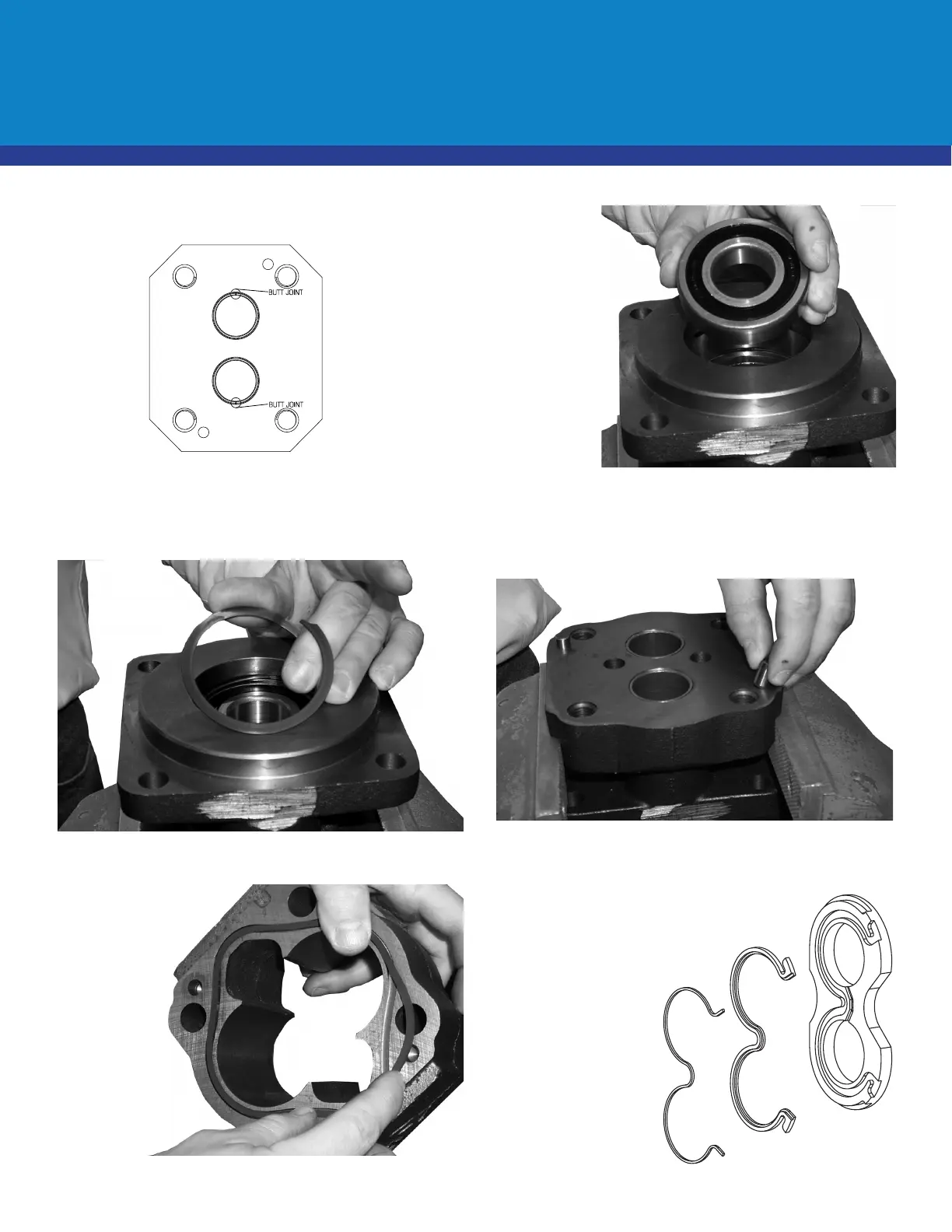

Install spirolox retaining ring as shown.
8.
Start pin in hole straight, and tap lightly with a soft
hammer.
9.
Grease gasket seal
and place in groove
of gear housing.
Place gear
housing on
dowel pins and
tap flush with
shaft end cover.
Make sure large
core of 124,
197, or 360 is on
inlet side.
10.
Place a liberal amount of grease in plate
groove(A). Place rubber element in groove
with recess up for nylon backup.(B)
Place backup in recess of
seal ring.(C)
5.
Install bushings with the lube grooves and butt
joints as shown on Page 9-10.
124 Series shown in this example
A
B
C
PUMP
6.
If unit has
an outboard
bearing install
as shown. For
motors install
spacer (22)
first.
