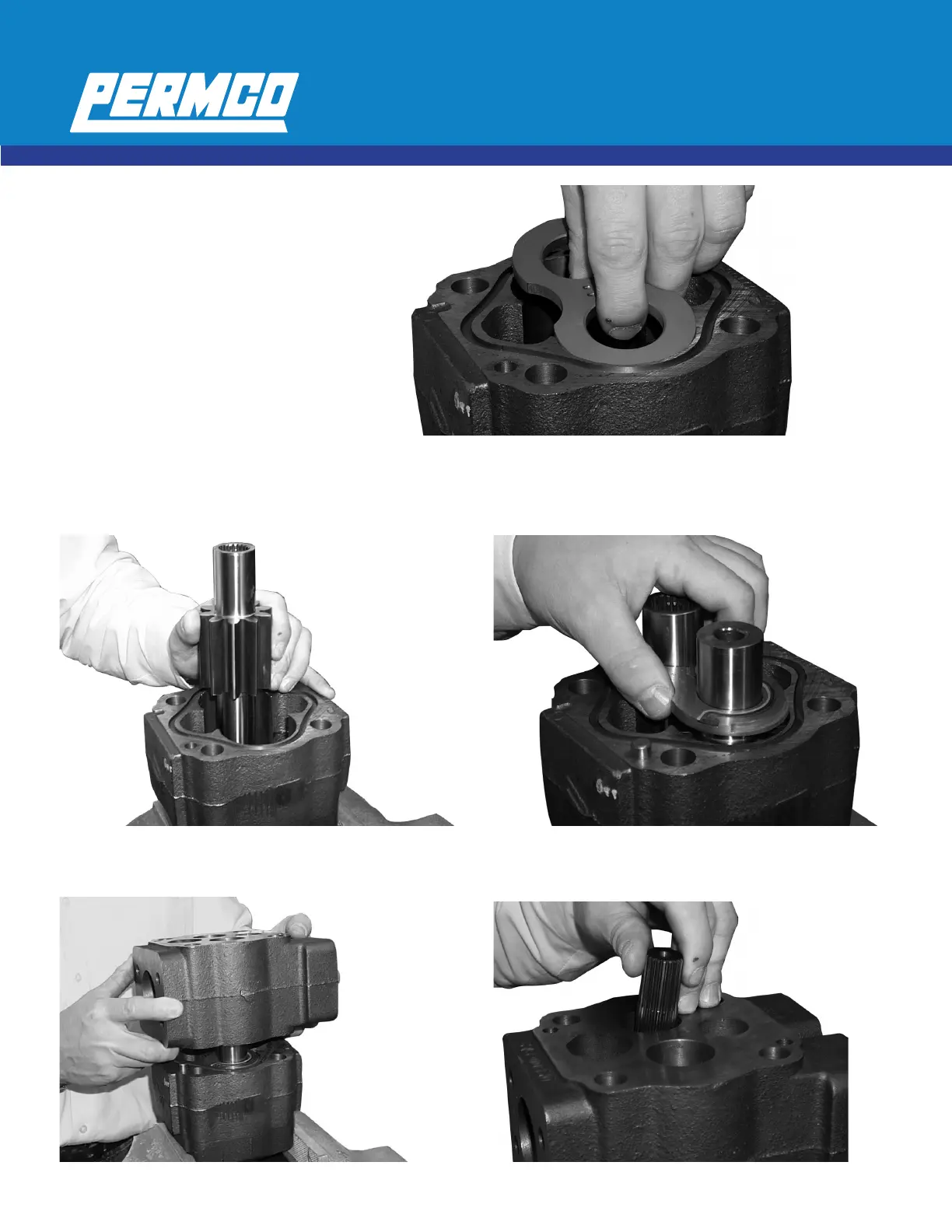

Single and Tandem Assembly
12.
Squirt oil into bushings and on thrust plates and slide gears
into gear housing. For motors protect the seal by placing a
seal instertion sleeve onto gear.
13.
Slide thrust plate over gears with seals facing up and
trapping pocket on pressure side. Tap dowel pins into gear
housing.
14.
Multiple Units Only Position bearing carrier over gear
journals and dowel pins.
Gently tap until the
parts are together.
Check bearing
carrier port
orientation.
15.
Multiple Units Only Insert connecting shaft into the
drive gear spline.
Place the second
gear housing on the
bearing carrier by
repeating steps 8-9.
11.
Slip the thrust plate into the gear housing with the “T” or
“U” shaped trapping pocket up and on the outlet side.
