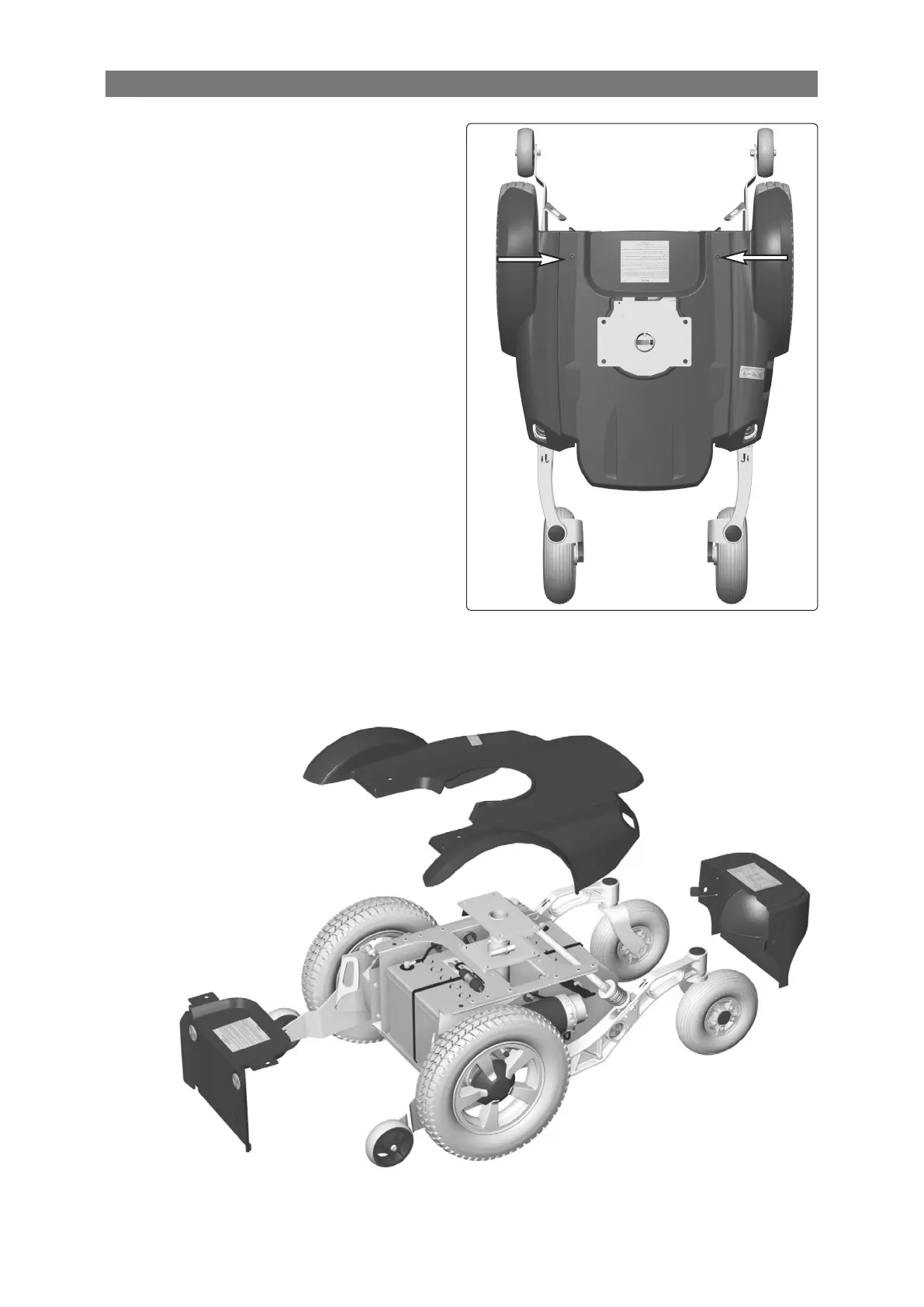

Fixing points of the front cover.
The cover is mounted with hook and loop fastener
at the rear and with two knobs at the front. See
figure.
Move/fold the leg rests out and, if necessary,
raise the seat.
Switch off the main power switch on the control
panel.
Remove the two knobs that hold the cover at
the front.
Release the hook and loop fastener by lifting
the cover straight up. Then remove the cover
by pulling it backwards.
Fit the cover in the reverse order.
Covers.
