Permolock C3 Owner´s Manual Fitting
28
Position 1.
Position 2.
Position 3.
Position 4.
Position 5.
Fitting
Height adjustment of locking
plate (cont.)

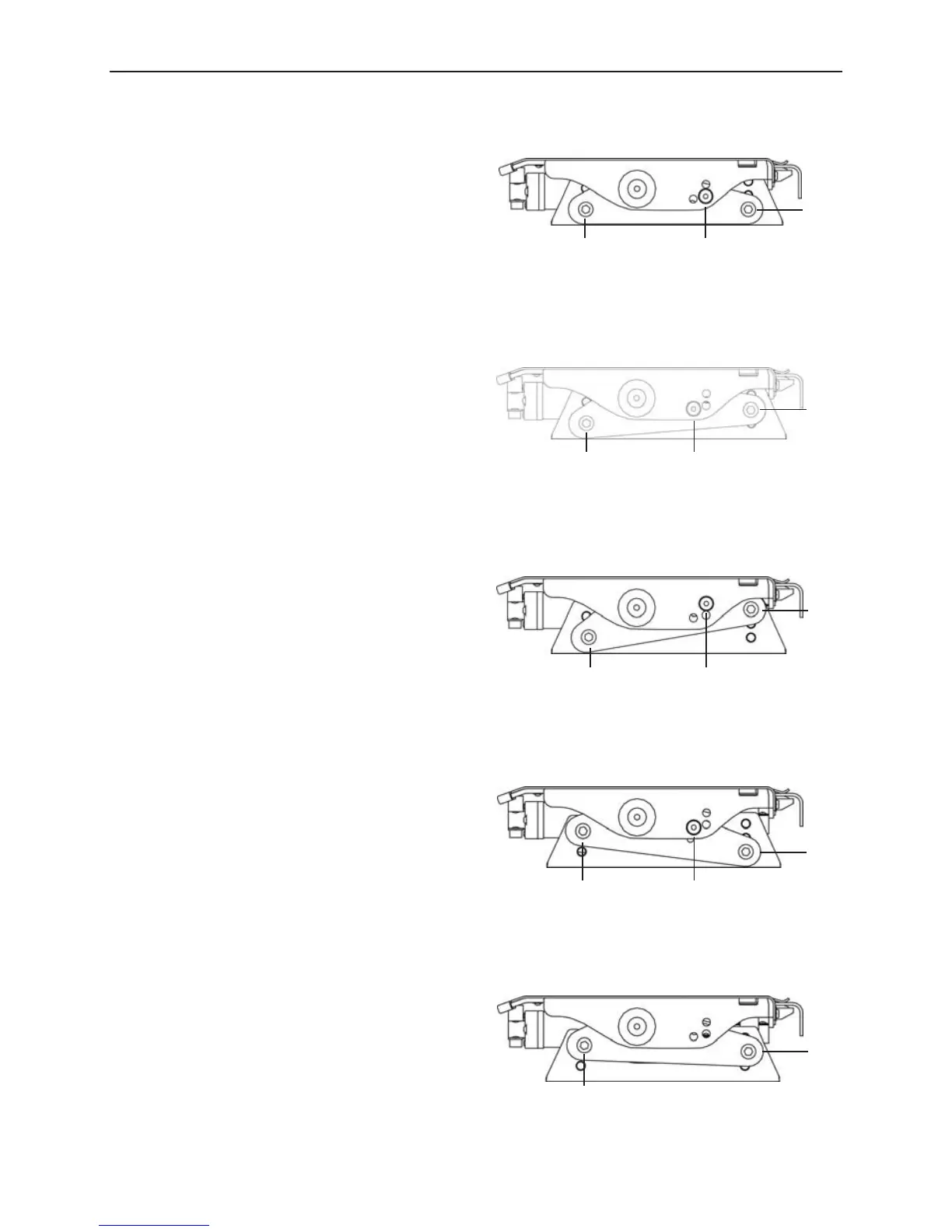

Position 1
(low – 1): Height 72 mm. If the wheel-
chair needs to be backed in, this posi-
tion must be locked securely in a level
position.
Position 2
(low – 2): Height 76.5 mm. If the wheel-
chair needs to be backed in, this posi-
tion must be locked securely in a level
position.
Position 3
(low – 3): Height 81.5 mm. Standard
fitting for Permobil C300 on a level sur-
face. If the wheelchair needs to be
backed in, this position must be locked
securely in a level position.
Position 4
(high – 1): Height 87 mm. Standard
fitting for Permobil C350 on a level sur-
face. If the wheelchair needs to be
backed in, this position must be locked
securely in a level position.
Position 5
(high – 2): Height 92 mm. Only used for
fitting on a sloping surface. This posi-
tion cannot be locked securely and may
not be used if the wheelchair is to be
backed into the docking system.
1
Low Locking
2
Low Locking
3
Low Locking
1
High Locking
2
High
