Ignitor Module Installation
1. Install the magnet sleeve onto the point cam.
2. Install the shim washer onto the distributor shaft.
3. Set the adapter plate it into the distributor. Insert the provided hold down stud
through the plate and distributor housing.
4. Install the timing adjustment slide over the stud. Install the provided lock nut.
5. Static time the distributor by positioning the plate so that the slide is posi-
tioned in the middle of the adjustment slot. The adjustment nut should be
centered with the cap spring clip (See Illustration B). Tighten the nut once it
is aligned properly.
6. Install the plate retaining ring. The flat portion of the ring should be placed on
adjustment slot side of the distributor.
7. Insert the red wire through the hole that was made in the distributor body.
Distributor Installation
1. Install the rotor
2. Turn the rotor to the position that was noted prior to the removal of the dis-
tributor.
3. Place distributor into block and fasten in place with the original mounting
bolts. Note: Do not force the distributor into place. Check to make sure that
drive tang is properly aligned.
4. Install the distributor cap.
5. Install the coil and coil retaining bail.
6. Install the spark plug wires.
Wiring

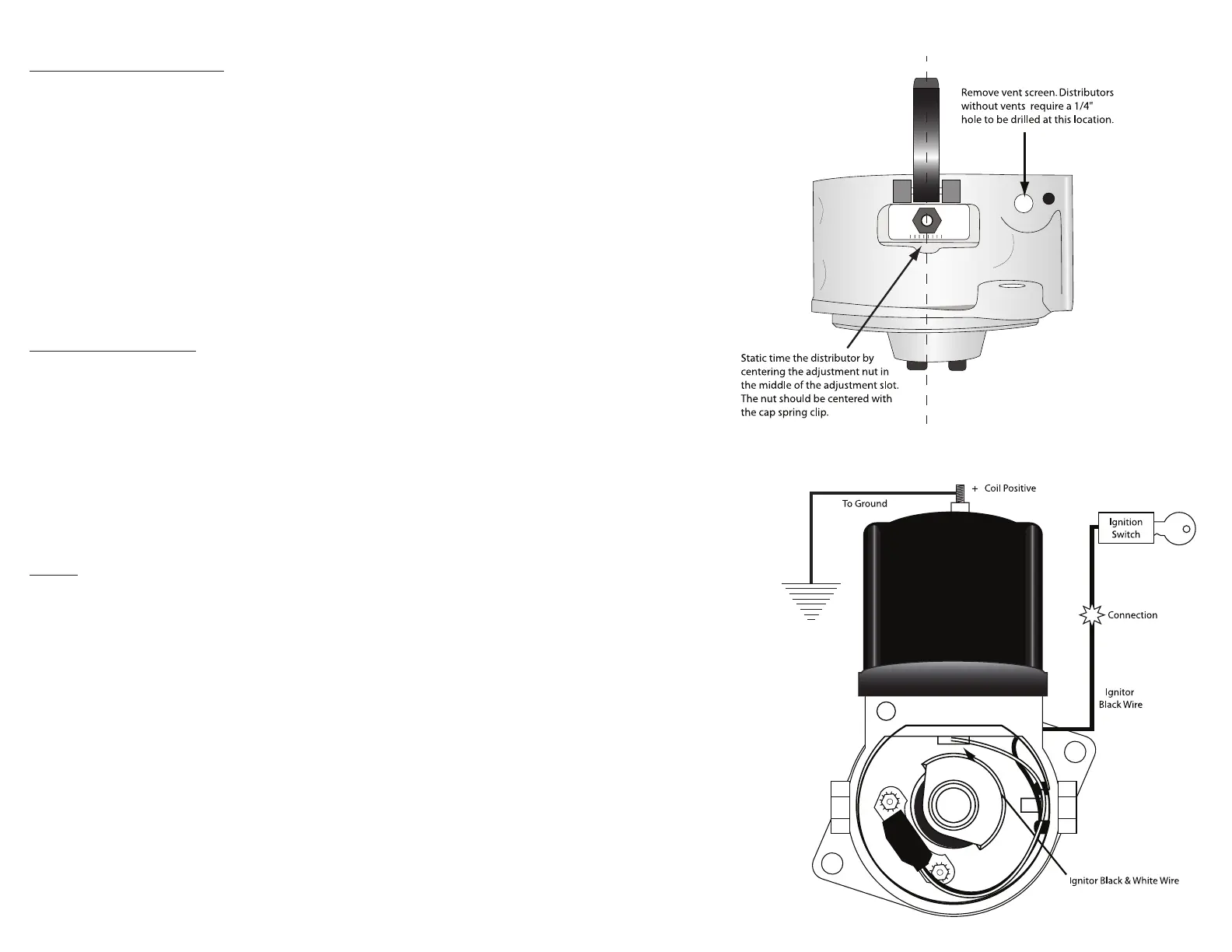

1. Attach the ignition switch wire directly to the Ignitor black wire. (See
Illustration C)
2. Using 18 gauge wire or larger, connect the coil positive terminal to an engine
ground.
Illustration C
Illustration B
