Peterbilt 535 - Instrument Panel

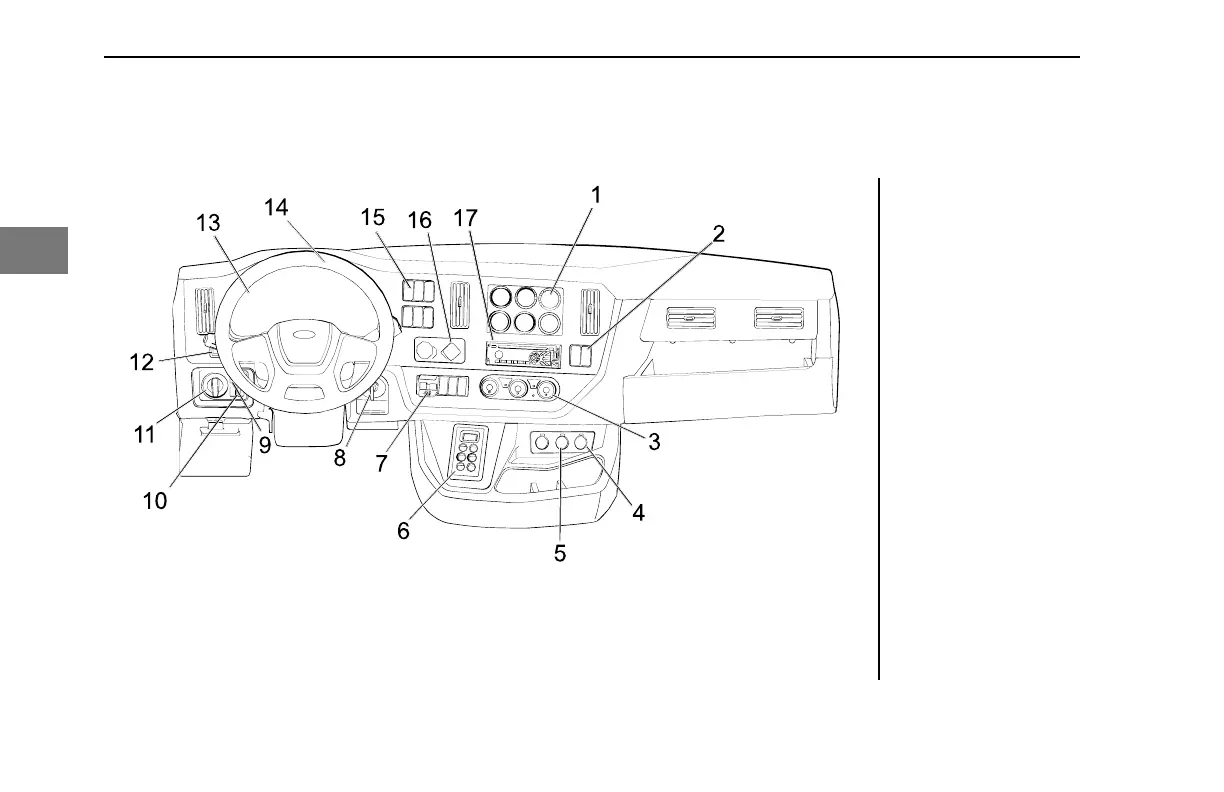

Instrument Panel
1. Optional Gauges
2.
Dash Switches
3. A/C Controls
4. 12V Outlet
5. 12V Outlet
6. Shifter (push button
shifter shown)
7. Compact Trailer
Valve
8. Ignition
9. Hazard Switch
10. Dimmer Switch
11. Exterior Lights
Switch (ELS)
12. Signal Stalk
13. Peterbilt Digital
Display
14. Steering Wheel
15. Dash Switches
16. Parking Brakes (air
operated)
17. Radio Stereo
System
CONTROLS - Instrument Panel
46 Y53-6113-1A1 (11/20)
3
