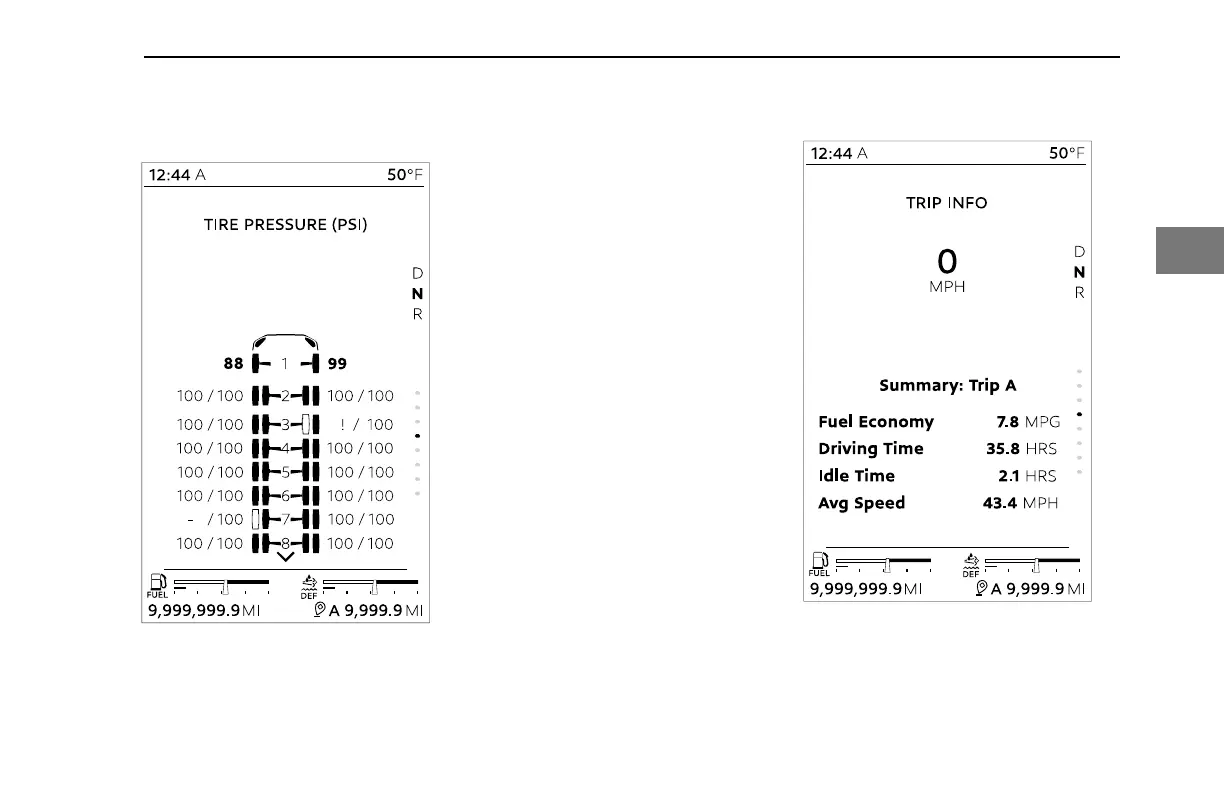

Tire Pressure Monitoring System
(option)
viewed only while the parking brake is set.
TPMS displays individual tire pressures
and tire locations, using color to indicate
the tire pressure condition:
•
Gray – Normal
• Amber – Low (generates a popup)
• Red – Very Low (generates a
popup)
• White – High (generates a popup)
A Tire High Temperature condition will also
generate a popup.
Trip Info
Presents information concerning truck use
during the current trip. These details will be
collected until the trip is reset, or the max
trip distance (99,999.9 miles for main,
9,999.9 for sub-trips) is reached. For
CONTROLS - Views
The Tire Pressure Monitoring System
(TPMS) is an optional feature combining
tire data with the chassis axle layout,
displayed graphically. The TPMS can be
Y53-6113-1A1 (11/20) 73
