Pettersson D500X - CF card panel overview; Microphone panel overview

5

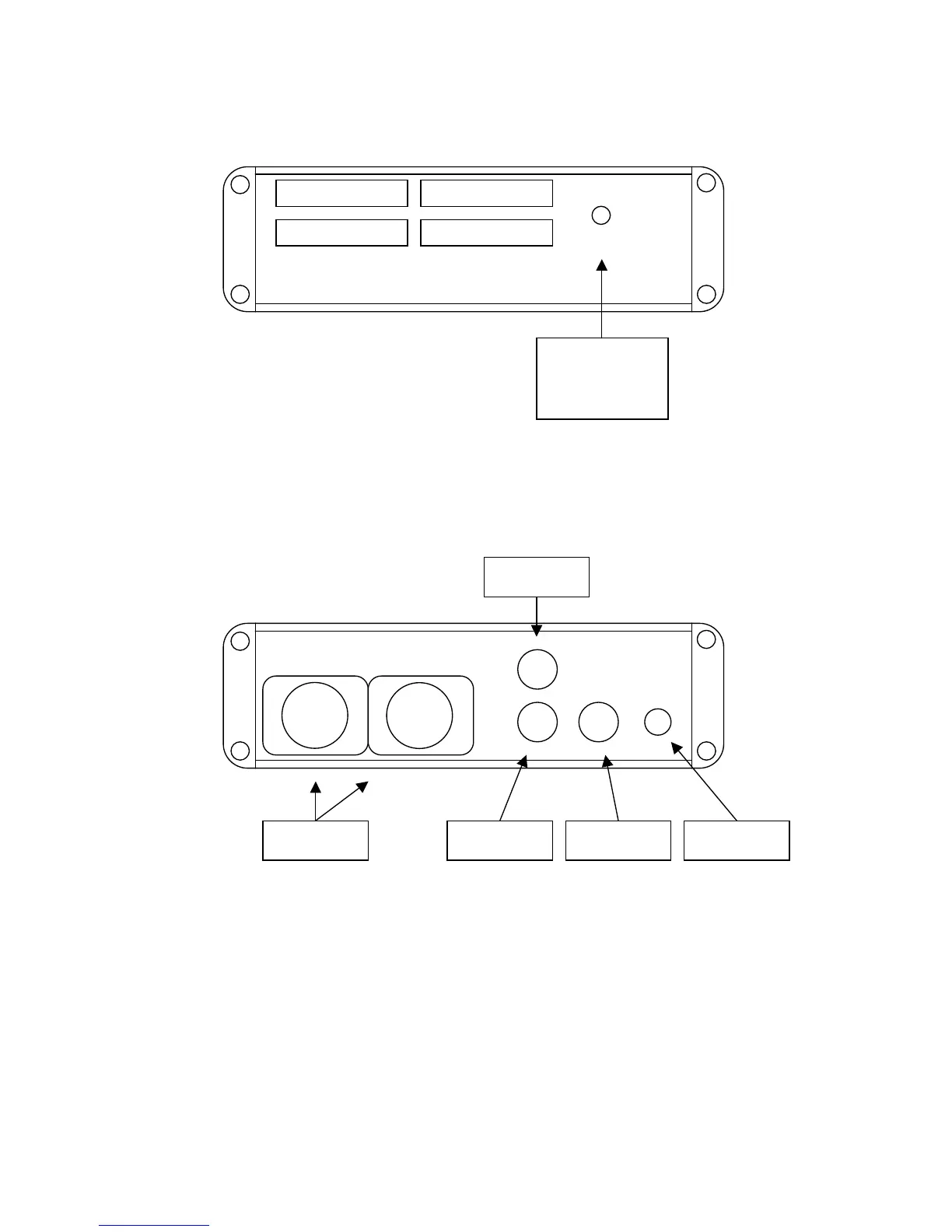

CF card panel overview
The protection cover must be removed to access the power switch and CF card slots.
Microphone panel overview
Battery holders for
2 x 2 AA cells
Built-in electret
microphone
External
microphone jack
External power jack,
5.5 – 8 V DC
External trigger
jack
Power switch to select
external or internal
batteries. In the mid
position all power is
switched off.
CF card slot #1
CF card slot #2
CF card slot #3
CF card slot #4
POWER
EXT OFF INT
