44
INSTRUMENTS and CONTROLS
Panel grouping together the vehicle operation indication dials and warning lamps.

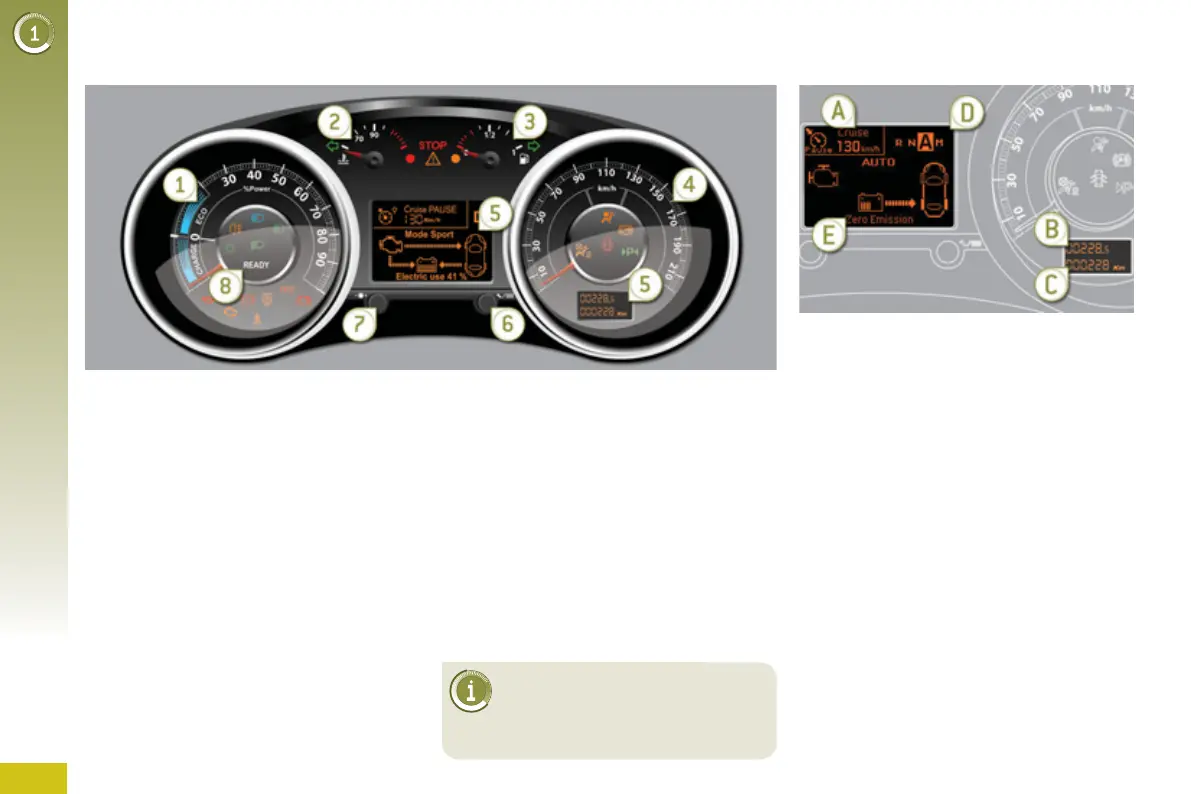

INSTRUMENT PANELS
For more information, refer to
the paragraph relating to the
button or function and its as-
sociated display.
Dials
6. Display zero reset or service indi-
cator re-display button.
Resets the selected function to zero
(trip distance recorder or service in-
dicator) or displays the service indi-
cator again.
7. Instrument panel lighting dimmer.
Adjusts the brightness of the lighting
of the instruments and controls, if the
vehicle lighting is on.
8. Ready lamp
Indicates that the vehicle is ready to
move off.
1. Power meter
Indicates the power available as a
percentage .
For more information refer to the
"Hybrid" section.
2. Coolant temperature gauge.
Indicates the temperature of the
engine coolant (° Celsius).
3. Fuel gauge.
Indicates the quantity of fuel remaining
in the tank.
4. Speedometer.
Indicates the current speed of the
moving vehicle (mph or km/h).
5. Screen.
Screen(s)
A. Speed limiter
or
Cruise control.
(mph or km/h)
B. Trip distance recorder.
(miles or km)
C. Service indicator.
(miles or km) or,
Engine oil level indicator.
or
Distance recorder.
(miles or km)
D. 6-speed electronic gear control
gearbox.
E. - Electrical fl ow or
- Warning messages and function
status messages or
- Trip computer or
- Satellite navigation information or
- Menus (with Peugeot Connect
Media Navigation (NG4 3D)).
