Pfaff 1525

11 - 15
Adjustment
● Remove the bottom feed dog and set knob 1 at "0".
● Unscrew the needle plate. Place the metal gauge over the opening of the needle plate
cutout so that both sewing feet can rest on the metal gauge.
● Screw in stop screw 2 as far as possible.
● Adjust crank 3 (screw 4) so that crank 5 does not move when the balance wheel is
turned.
● Set knob 1 at "5".
● Turn ball stud 6 (locknut 7) according to requirement 1.
● Adjust crank 8 (screw 9) so that the top feed dog 10 and presser foot 11 are raised
equally from the needle plate.
● Check requirement 1 and readjust the ball stud 6 (nut 7) if necessary.
● Turn stop screw 2 according to requirement 2.

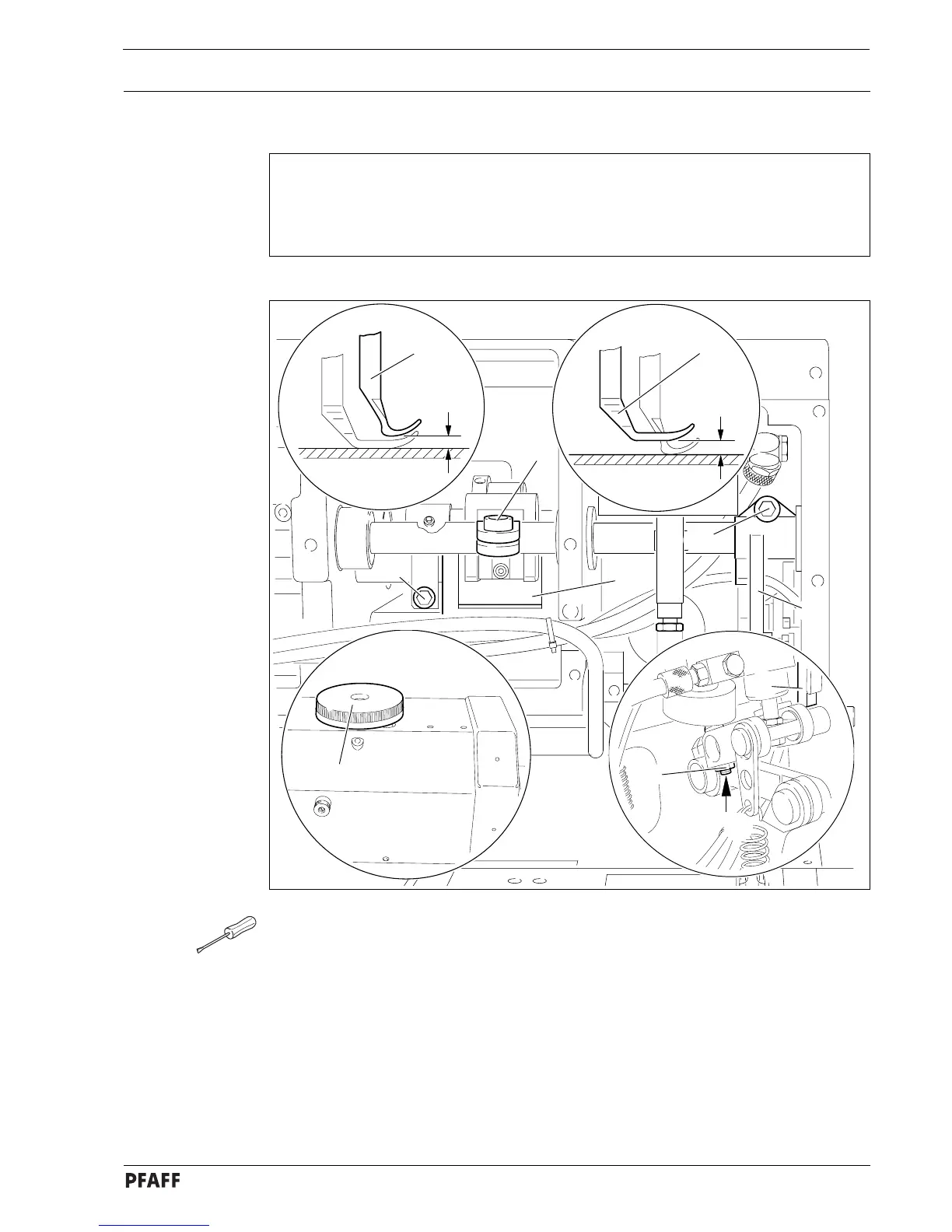

58.038a
Fig. 11 - 12
11.04.12 Top feed stroke
Requirement
1. With knob
11
11
1 set at position "5", the top feed dog 10 and presser foot 11 should each
rise by 5.0 mm
..
..
.
2. The standard stroke should be limited to 5 mm.
5 mm
5 mm
10
11
8
9
4
3
5
1
58.035
7
6
2
