Pfaff 30 User Manual

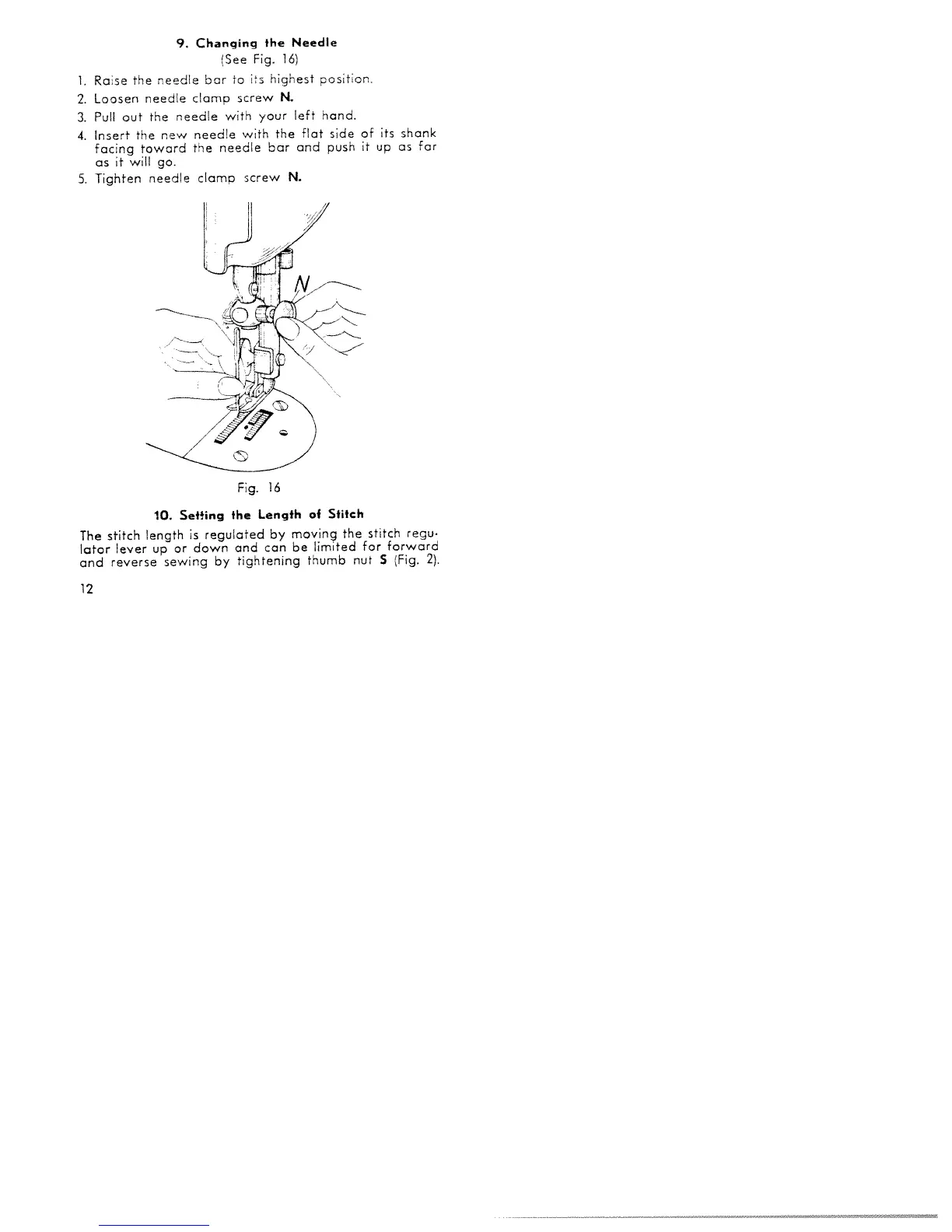

9.
Changing
the Needle
See
Fig. 16)
. Rase
the
reedle bar to
its
highest position.
2.
Loosen
needle clamp
screw
N.
3.
Pull out
the
reedle
with
your left
hand.
4.
Insert the
new needle
with the
flat side of
its shank
facing
toward
the
needle
bar and
push
it
up
as
far
as
it
will go.
5.
Tighten
needle
clamp
screw
N.
Li
N
__/
(
Fig.
16
10.
Setting
the
Length of
Stitch
The
stitch
length
is
regulated by
moving
the
stitch
regu.
lator
lever
up
or
down
and
can be
limited
for
forward
and
reverse
sewing by
tightening
thumb
nut S çFig.
2).
12

Pfaff 30 Specifications

General

Type	Mechanical
Stitch Length Adjustment	Yes
Material	Metal
Stitch Options	Straight Stitch
Max Stitch Length	4 mm
Max Stitch Width	0 mm
