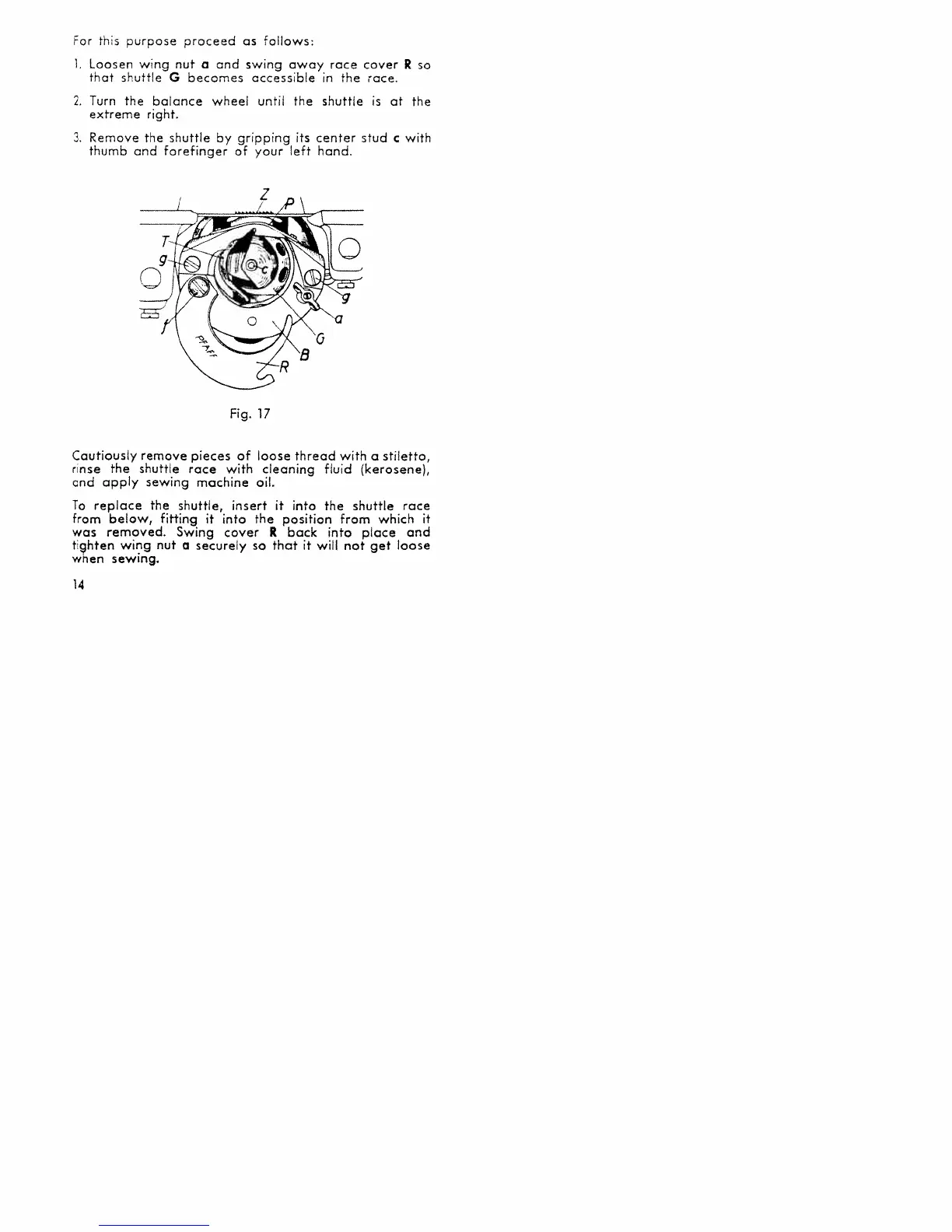

For this purpose proceed
as follows:
1,
Loosen wing
nut a and swing
away
race
cover R
so
thot shuttle
G becomes accessible in the race.
2. Turn the balance wheel
until
the shuttle is
at the
extreme
right.
3. Remove the shuttle
by
gripping
its center
stud
c with
thumb and forefinger
of
your left hand.
Cautiously remove
pieces
of
loose
thread
with
a
stiletto,
rinse the shuttle
race with cleaning
fluid (kerosene),
and
apply
sewing
machine oil.
To replace
the
shuttle, insert
it into the shuttle
race
from below, fitting
it into the position
from
which
it
was
removed.
Swing cover
R back into place
and
tighten
wing nut
a
securely so
that
it will not get
loose
when
sewing.
Fig.
17
14

Pfaff 30 Specifications

General

Type	Mechanical
Stitch Length Adjustment	Yes
Material	Metal
Stitch Options	Straight Stitch
Max Stitch Length	4 mm
Max Stitch Width	0 mm
