Adjustment

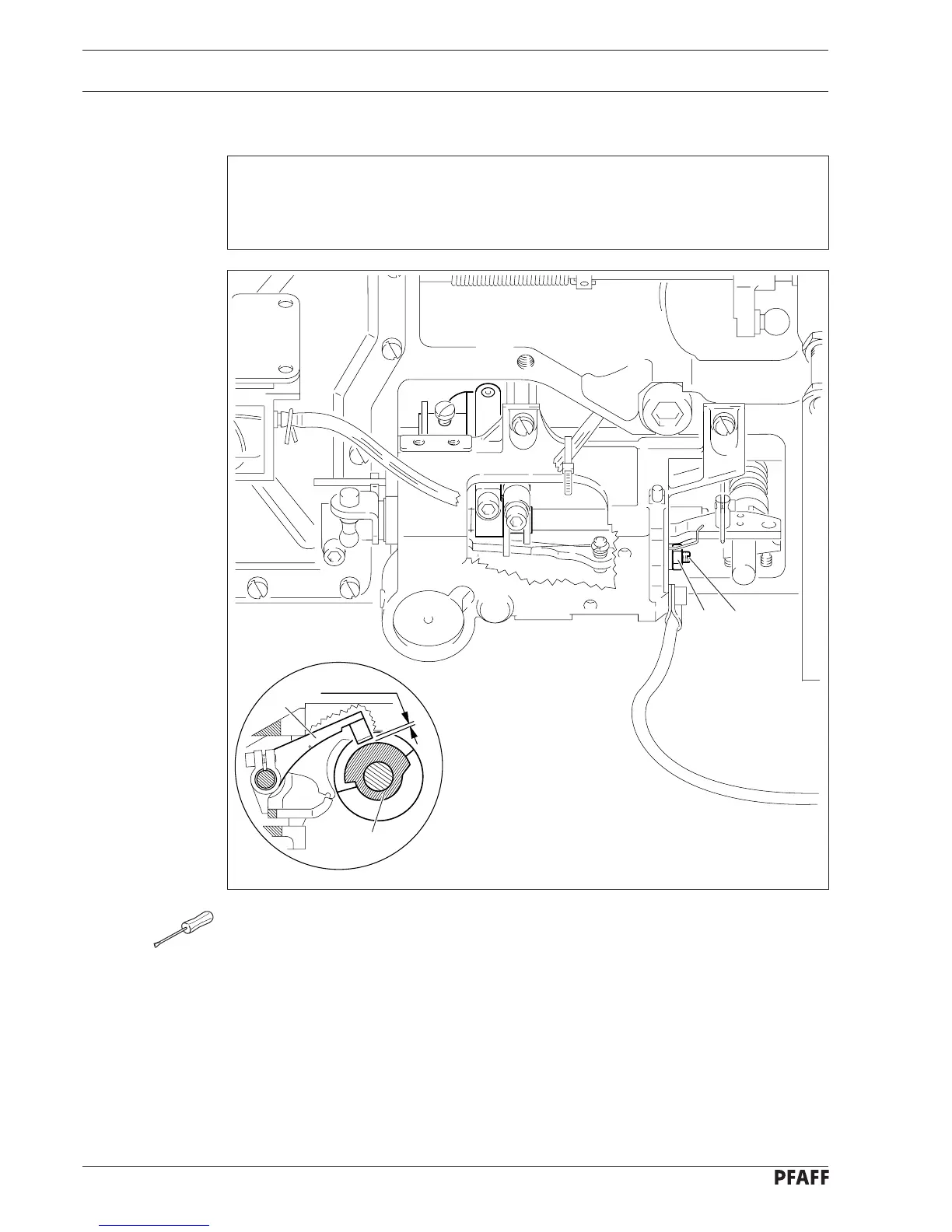

2.10 Engaging lever
Requirement
When the needle bar is at the t.d.c and the thread trimmer is in resting position, the
distance between the roller of the roller lever 3 and the outer diameter of the control
cam 4 should be between 0.3 and 0.5 mm.
● Turn screw 1 (nut 2) in accordance with the requirement.
● Check distance in accordance with the requirement.
2-07
24V = 4% ED
0.3 - 0.5 mm
2 - 7
3
4
2
1
Fig. 2 - 06
