Adjustment
2-10
24V = 4% ED
2.14 Retaining spring
Requirement
When the thread trimmer is in resting position, the distance between the retaining
spring 1 and the roller lever 3 should be 0.5 mm.
3
2
1
0.5 mm
2 - 11

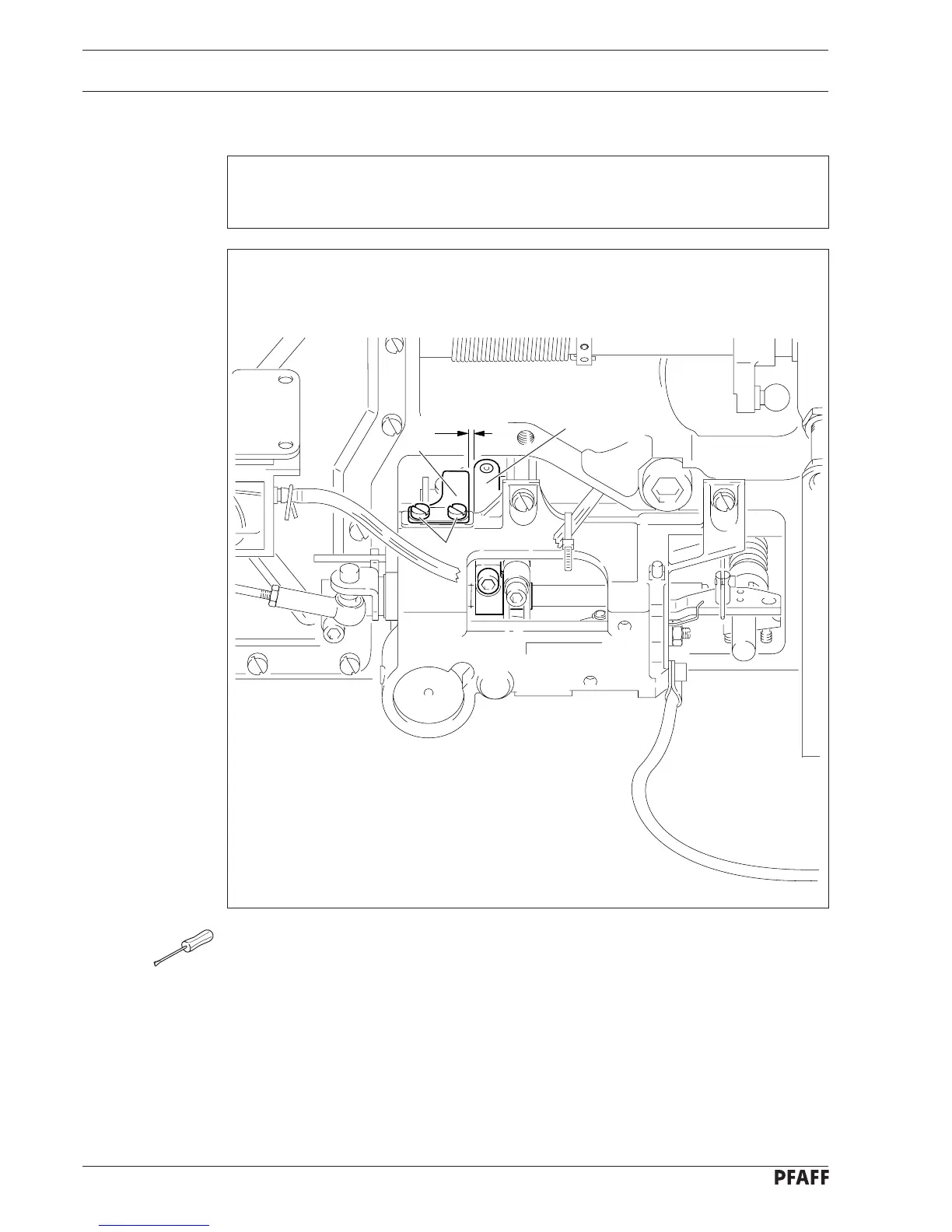

Fig. 2 - 10
● Position retaining spring 1 together with the cover disk.
● Tighten screws 2 sligthly.
● Push retaining screw 1 up to the stop and adjust in accordance with the requirement.
● Tighten screws 2 firmly.
