Pfaff coverlock 4772 User Manual

To
insert:
Insert
the
needle
into
the
hole
of
the
needle
changing
aid,
so
that
the
flat
needle
shank
(K)
faces
the
flat
side
(LI
of
the
aid
accessory.
Now
insert
the
needle
fully
into
the
holder
and
tighten
the
fastening
screw.
Remove
the
needle
changing
aid.
Overlock
needle
types
EL
x
705,
cat.
no.
2002
are
required
for
this
machine.
C-I—c
2-thread
chainstich
needle
threaded
right
overlock
left
overlock
needle
threaded
needle
threaded
A
!I
SI
Ioöl
cLD
os]
cover-stitch
needle
threaded
left
and
right
overlock
needles
threaded
In this
instruction
manual
the
various
need
le
positions
are
shown
in
a
schematic
dra
wing
of
the
needle
holder.
See
the
examples
above.
2-thread
chainstitch
and
cover-stitch
needles
threaded
Note:
If
both
the
left
and
right
overedge
needles
have
been
inserted,
the
left
needle
will
be
somewhat
higher
than
the
right
needle.
Note:
If
both
the
2-thread
chainstitch
needle
and
the
cover-stitch
needle
are
threaded,
the
left
needle
will
be
somewhat
higher
than
the
right
needle.

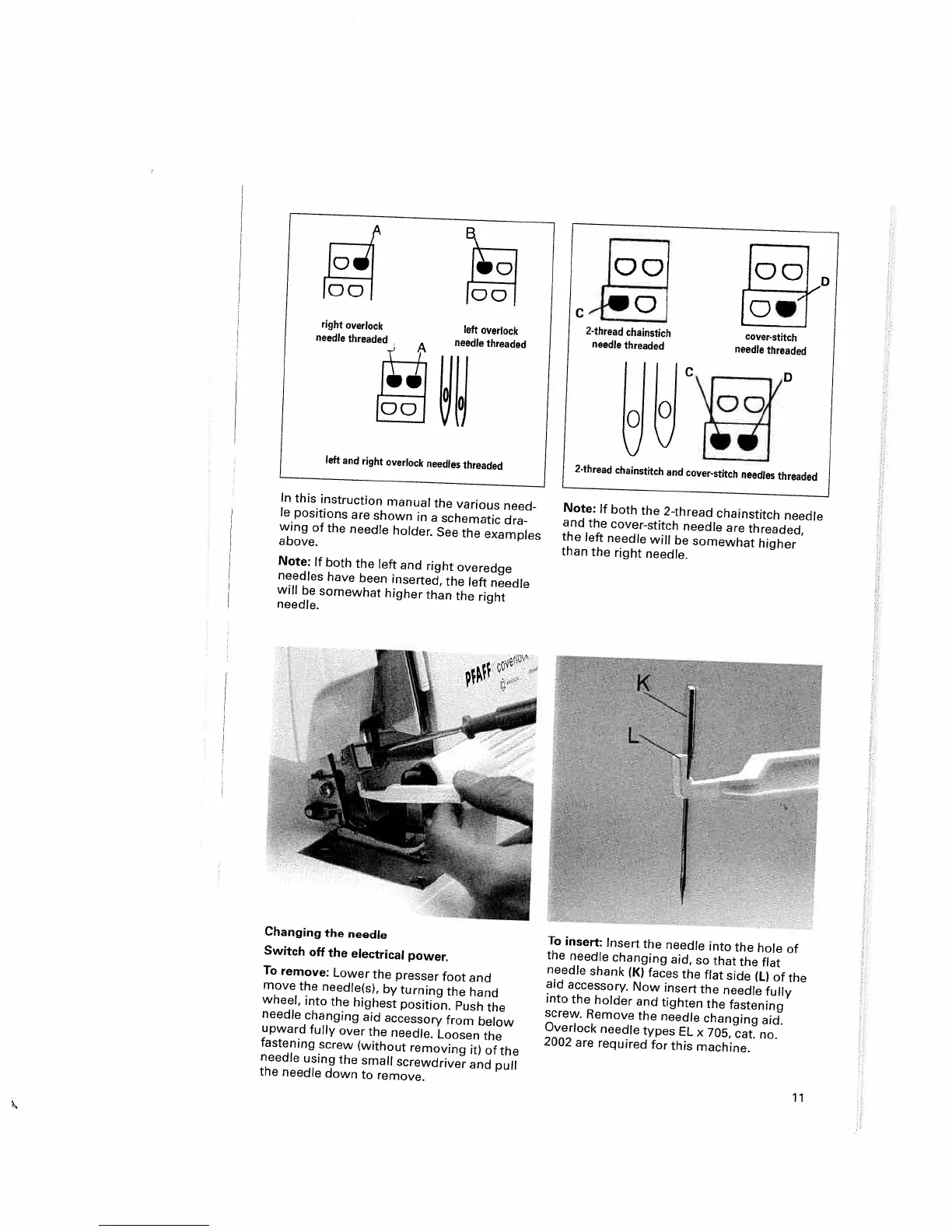

Changing
the
needle
Switch
off
the
electrical power.
To
remove:
Lower
the
presser
foot
and
move
the
needle(s),
by
turning
the
hand
wheel,
into
the
highest
position.
Push
the
needle
changing
aid
accessory
from
below
upward
fully
over
the
needle.
Loosen
the
fastening
screw
(without
removing
it)
of
the
needle
using
the
small
screwdriver
and
pull
the
needle
down
to
remove.
11
