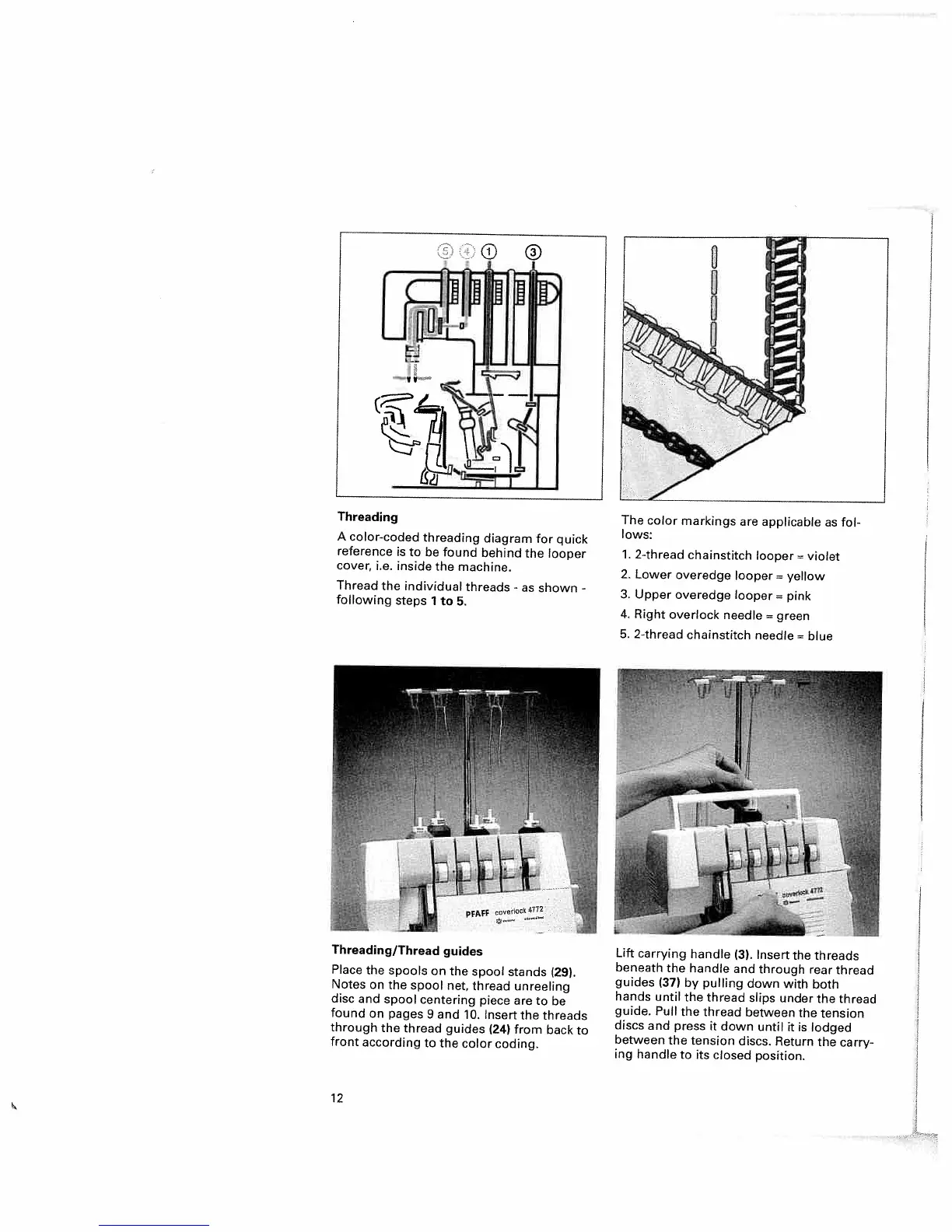

Threading
A
color-coded
threading
diagram
for
quick
reference
is
to
be
found
behind
the
looper
cover,
i.e.
inside
the
machine.
Thread
the
individual
threads
-
as
shown
-
following
steps
1
to
5.
Place
the
spools
on
the
spool
stands
(29).
Notes
on
the spool
net, thread
unreeling
disc
and
spool
centering
piece
are
to
be
found
on
pages
9
and
10. Insert
the
threads
through
the
thread
guides
(24)
from
back
to
front
according
to
the
color
coding.
12
1.
2-thread
chainstitch
looper
=
violet
3.
Upper
overedge
looper
=
pink
4.
Right
overlock
needle
=
green
The
color
markings
are applicable
as
fol
lows:
2.
Lower
overedge
looper
=
yellow
5,
2-thread
chainstitch
needle
= blue
PFArF
Threading/Thread
guides
Lift
carrying
handle
(3).
Insert
the
threads
beneath
the
handle
and
through
rear
thread
guides
(371 by
pulling
down
with
both
hands
until
the
thread
slips under
the
thread
guide.
Pull
the
thread
between
the
tension
discs
and
press
it
down
until
it is
lodged
between
the
tension
discs.
Return
the
carry
ing
handle
to
its
closed
position.
