10
● Loosen the torx screw on the face plate.

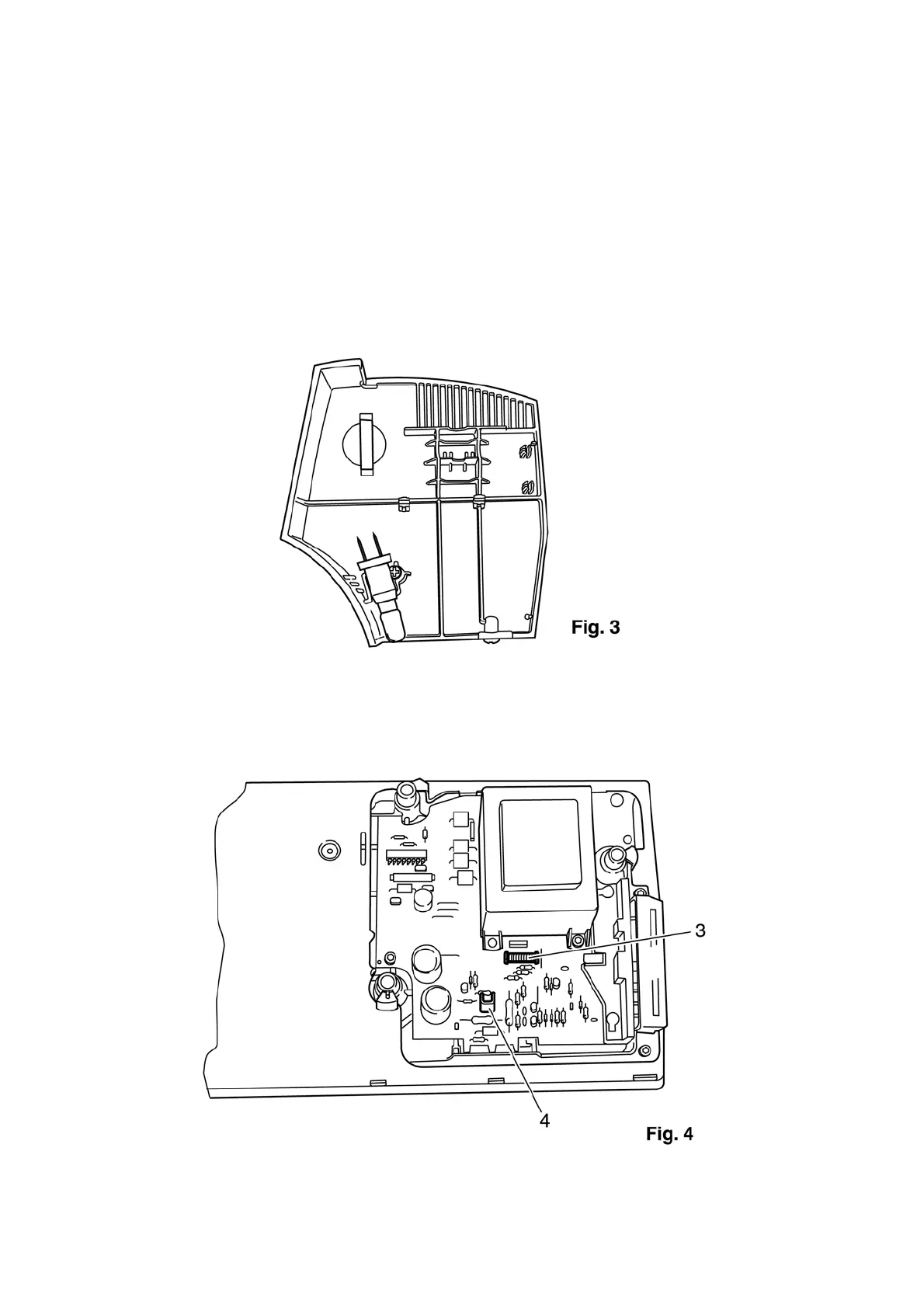

● Remove the complete face plate together with the sewing lamp and cable (fig. 3).
● Remove the carrying handle.
● Unscrew and remove the three fastening screws on the baseplate.
● Tilt the baseplate toward the front.
● Remove 12-wire flat cable 3 and motor cable 4 from the circuit board (fig. 4).
