11

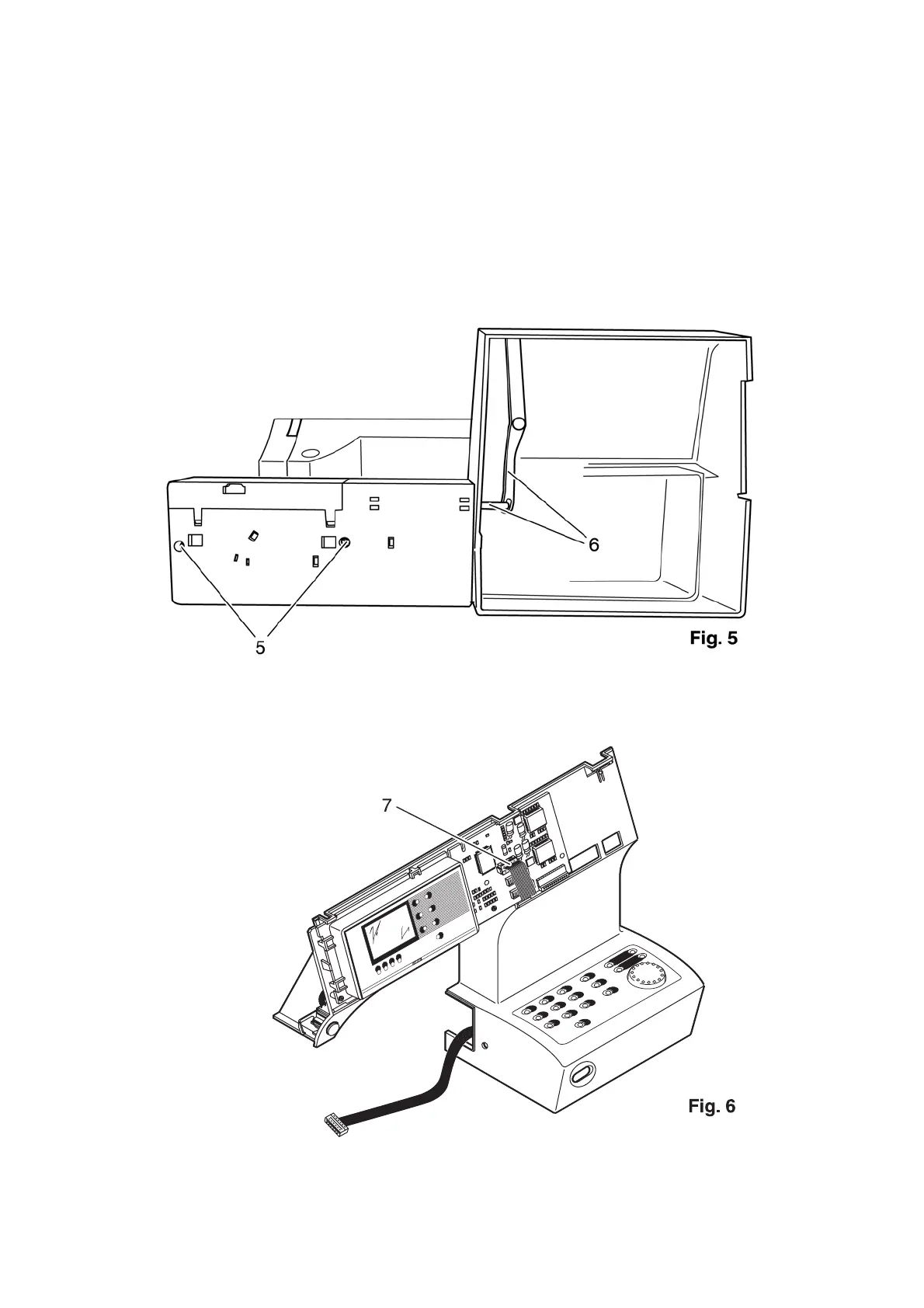

● Unscrew and remove both fastening screws 5 on the free-arm cover (fig. 5).
● Put the feed drop mechanism in its normal working position.
● Using a small screwdriver, disengage both feed regulators 6.
● Open the cable clip.
● Remove connection plug 7 from the circuit board (fig. 6).
● Remove the free-arm lid carefully from the housing, to the left.
