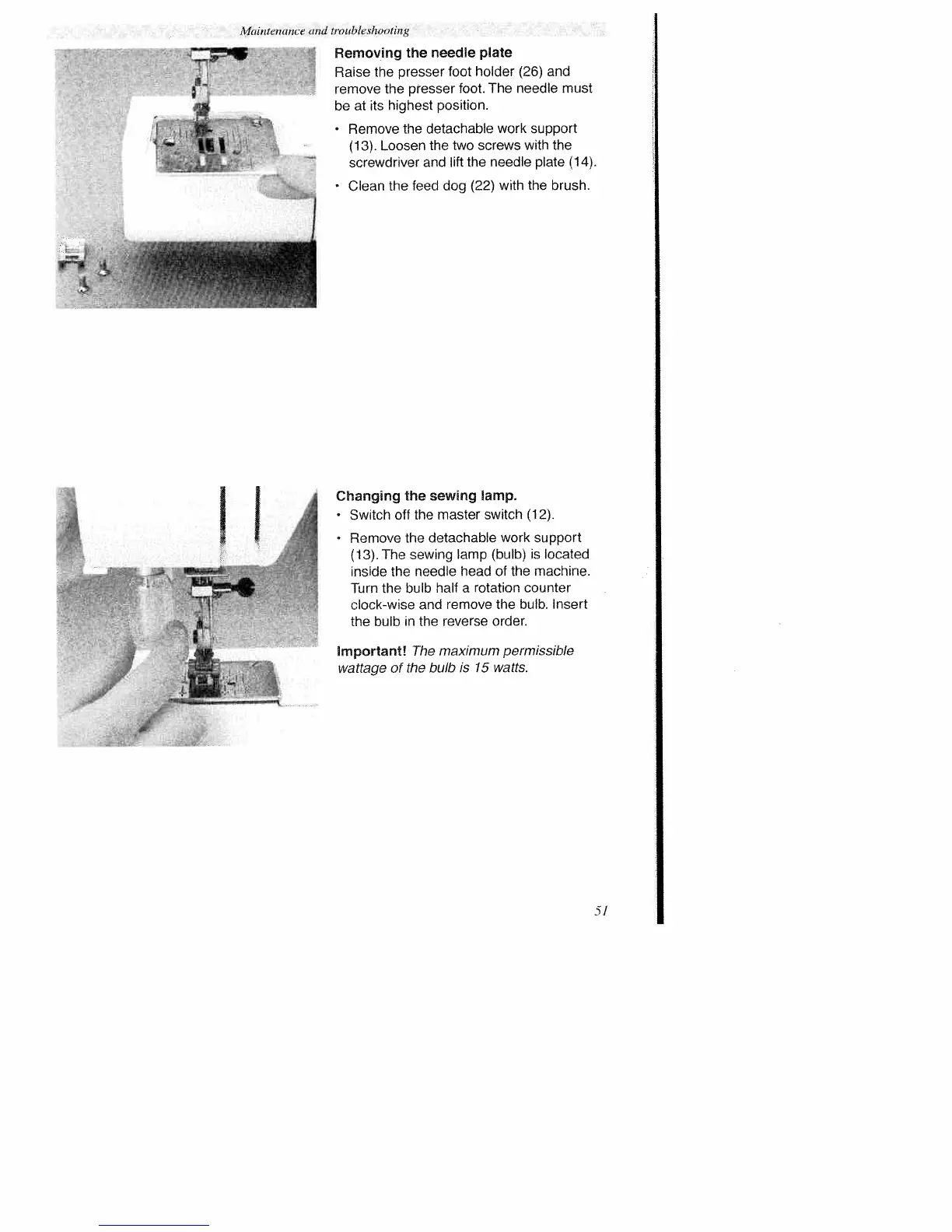

Wainienance
and
troubleshooting
Removing
the
needle
plate
Raise
the
presser
foot
holder
(26)
and
remove
the
presser
foot.
The
needle
must
be at
its
highest
position.
Remove
the
detachable
work
support
(13).
Loosen
the
two
screws
with
the
screwdriver
and
lift
the
needle
plate
(14).
Clean
the
feed
dog
(22)
with
the
brush.
I
:
Changing
the
sewing
lamp.
Switch
off
the
master
switch
(12).
Remove
the
detachable
work
support
(13).
The
sewing
lamp
(bulb)
is
located
inside
the
needle
head
of
the
machine.
Turn
the
bulb
half
a
rotation
counter
clock-wise
and
remove
the
bulb.
Insert
the
bulb
in
the
reverse
order.
Important!
The
maximum
permissible
wattage
of
the
bulb
is
15
watts.
5’
