Pfaff HOBBYMATIC 800 User Manual

4

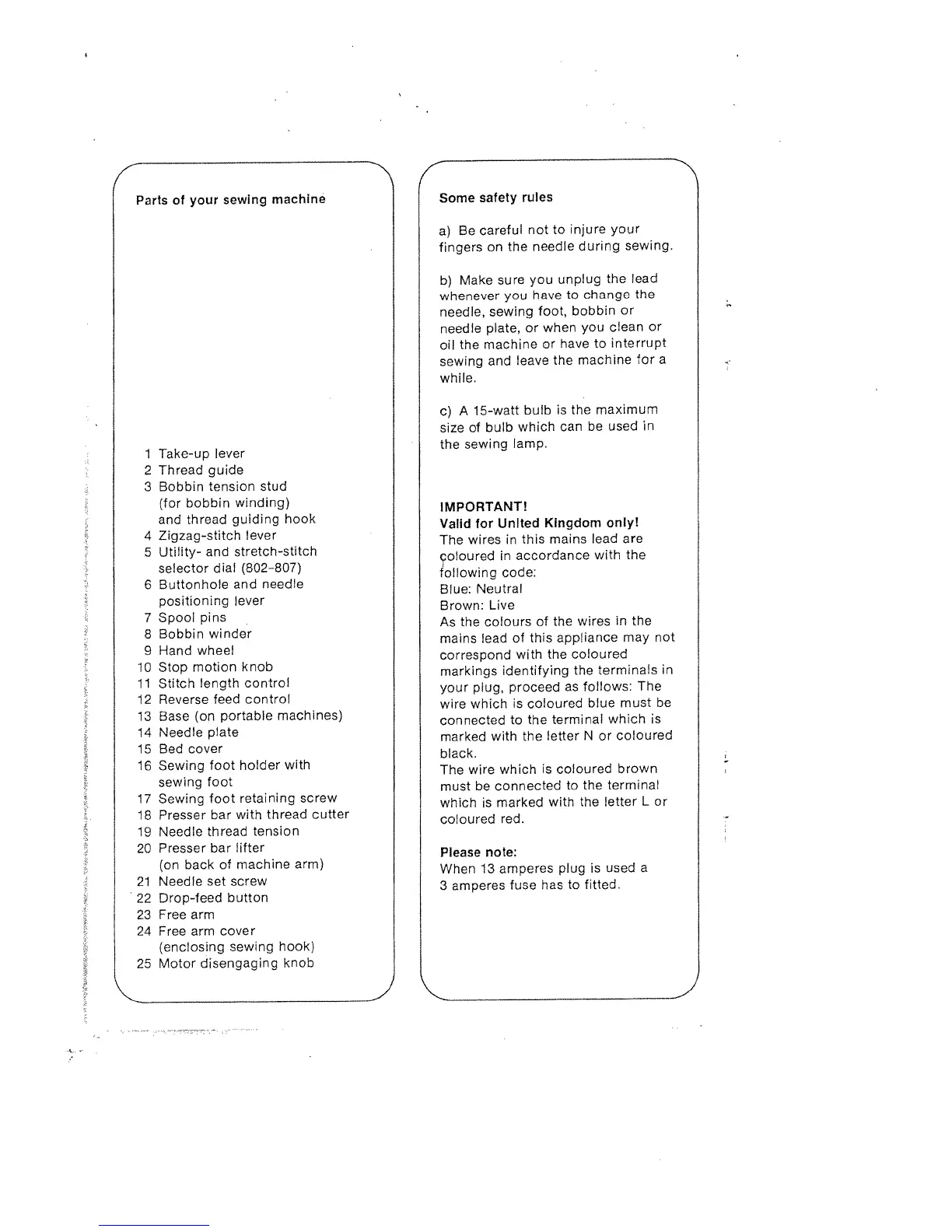

Parts
of
your
sewing
machine
1
Take-up
lever
2
Thread guide
3
Bobbin
tension
stud
(for
bobbin
winding)
and
thread guiding
hook
4
Zigzag-stitch
lever
5
Utility-
and
stretch-stitch
selector
dial
(802-807)
6
Buttonhole
and
needle
positioning
lever
7
Spool pins
8
Bobbin
winder
9
Hand
wheel
10
Stop
motion
knob
11
Stitch
length
control
12
Reverse
feed control
13
Base (on
portable
machines)
14
Needle
plate
15
Bed
cover
16
Sewing
foot
holder
with
sewing
foot
17
Sewing
foot
retaining
screw
18
Presser
bar
with
thread
cutter
19
Needle
thread
tension
20
Presser
bar
lifter
(on back
of
machine
arm)
21
Needle
set
screw
22
Drop-feed
button
23
Free
arm
24
Free
arm
cover
(enclosing
sewing
hook)
25
Motor disengaging
knob
Some
safety
rules
a)
Be
careful
not
to
injure your
fingers
on
the
needle
during
sewing.
b)
Make
sure
you
unplug
the
lead
whenever
you
have to
change
the
needle,
sewing
foot,
bobbin
or
needle
plate,
or
when
you
clean
or
oil
the
machine
or
have
to
interrupt
sewing
and
leave the
machine
for
a
while.
C)
A
15-watt
bulb
is
the
maximum
size
of
bulb
which
can
be
used
in
the
sewing
lamp.
IMPORTANT!
Valid
for
United
Kingdom
only!
The
wires
in
this
mains
lead
are
coloured
in
accordance
with
the
i’ollowing
code:
Blue:
Neutral
Brown:
Live
As
the
colours
of
the
wires
in
the
mains lead
of
this
appliance
may
not
correspond
with
the
coloured
markings
identifying
the
terminals
in
your
plug, proceed
as
follows:
The
wire
which
is
coloured
blue
must
be
connected
to
the
terminal
which is
marked
with
the
letter
N
or
coloured
black.
The
wire
which
is
coloured
brown
must
be
connected
to
the
terminal
which
is
marked
with
the
letter
L
or
coloured
red.
Please note:
When
13
amperes
plug
is
used
a
3
amperes
fuse
has
to
fitted.

Pfaff HOBBYMATIC 800 Specifications

General

Brand	Pfaff
Model	HOBBYMATIC 800
Category	Sewing Machine
Language	English
