Components and Functions
Display
Buttons

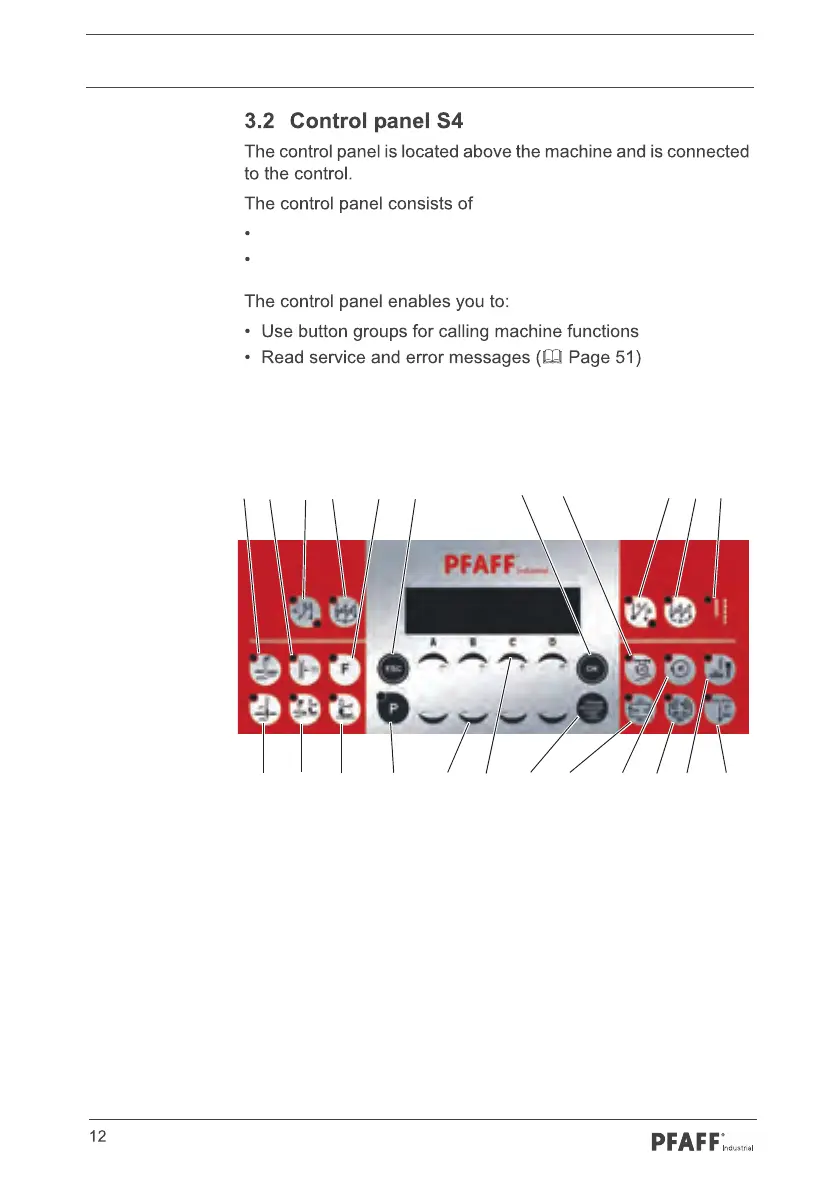

Fig. 2: Control panel S4
(1)- Start backtack
(2)- Multiple start backtack
(3)- End backtack
(4)- Multiple end backtack
(5)- Second stitch length
(6)- Freely programmable button
(7)- Thread clamp
(8)- Thread trimmer
(9)- Needle position following
sewing stop
(10)-Needle position after thread
trimmer
(11)-Raise sewing foot after
sewing stop
(12)-Soft start
(13)-Reduced sewing speed
(14)-Light barrier
(15)-Seam program I
(16)-Seam program II
(17)-Seam program II
(18)-Coil reserve
(19)-Confirmation button (OK
)
(20)-Minus button
(21)-Plus button
7 6 22
19
1 2
12
3 4 5
10 209 21 1811 23 15 16 17
8
13 14
