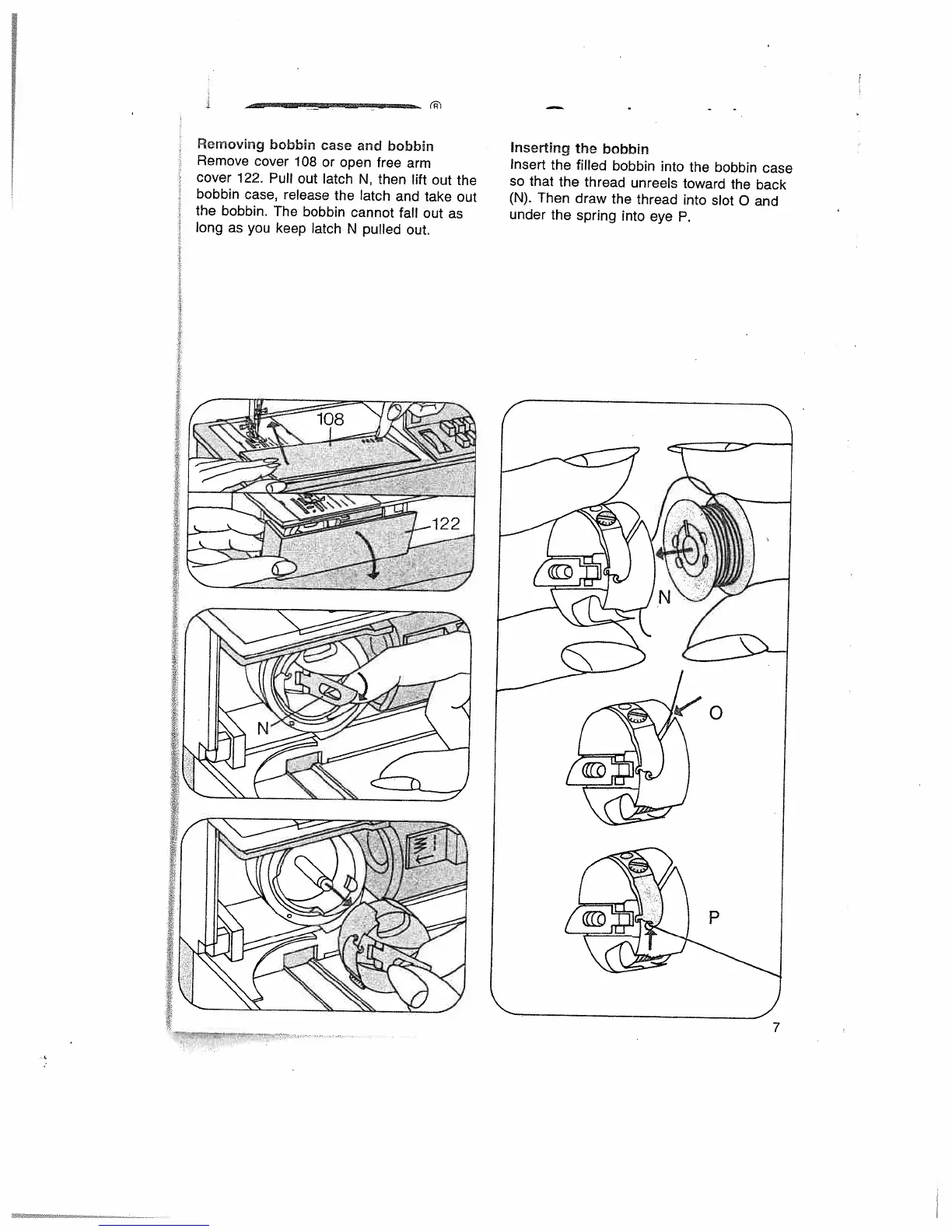

Removing
bobbin
case
and
bobbin
Remove
cover
108
or
open
free
arm
cover
122.
Pull
out
latch
N,
then
lift
out
the
bobbin
case,
release
the
latch
and
take
out
the
bobbin.
The
bobbin
cannot
fall
out
as
long
as
you
keep
latch
N
pulled
out.
Inserting
the
bobbin
Insert
the
filled
bobbin
into
the
bobbin
case
so
that
the
thread
unreels
toward
the
back
(N).
Then
draw
the
thread
into
slot
0
and
under
the
spring
into
eye
P.
7
