Pfaff Tipmatic 1014

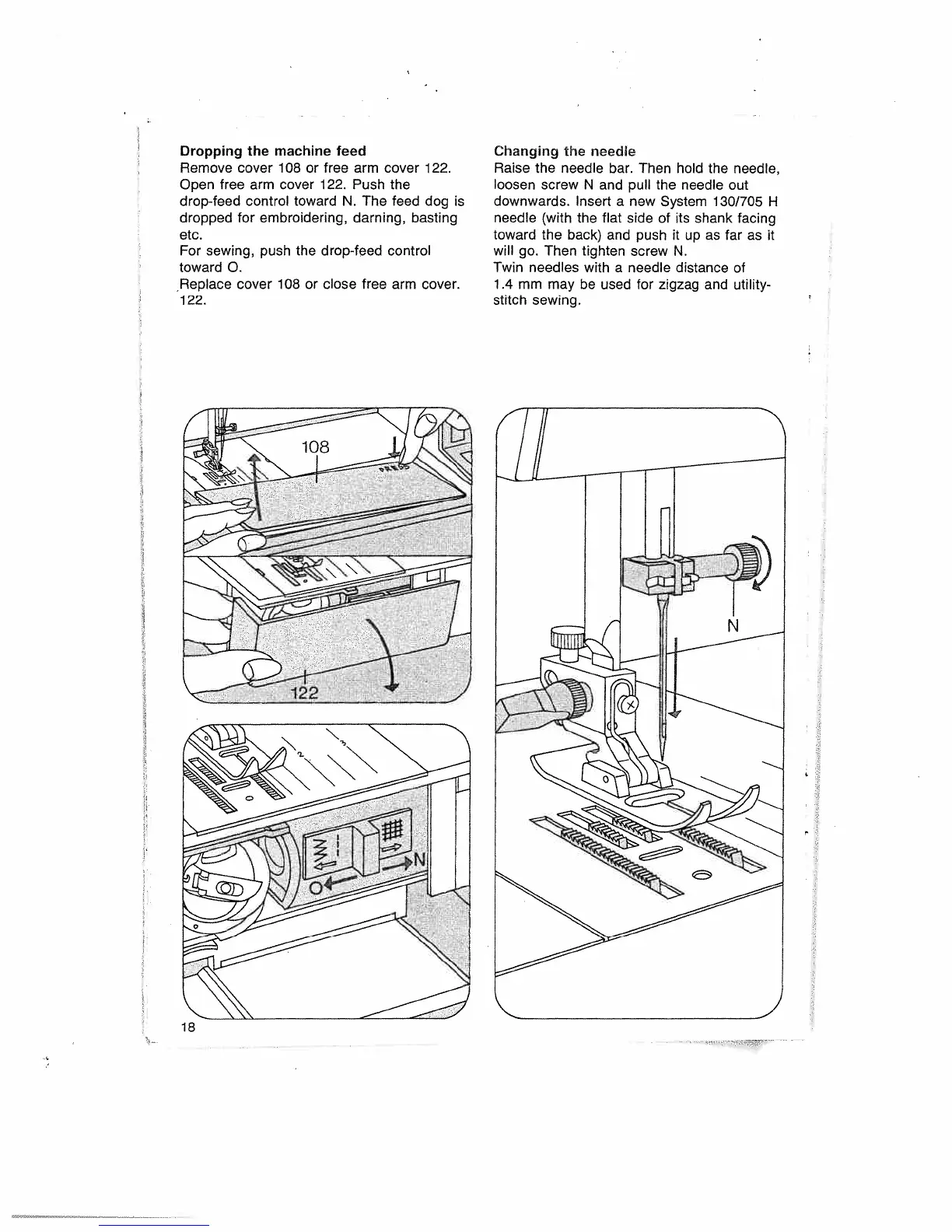

Dropping the machine feed
Remove cover 108 or free arm cover 122.
Open free
arm cover 122.
Push the
drop-feed control toward N. The feed
dog is
dropped
for embroidering, darning,
basting
etc.
For sewing, push the
drop-feed
control
toward
0.
Replace cover 108 or close free arm cover.
122.
Changing
the needle
Raise the
needle bar. Then hold the
needle,
loosen screw N
and
pull
the needle out
downwards. Insert
a new System 130/705
H
needle (with the flat side
of its shank facing
toward the back)
and push it up as far as it
will
go. Then tighten
screw N.
Twin needles with a needle distance
of
1.4 mm may
be used
for
zigzag and utility
stitch
sewing.
18
