INLETS / OUTPUTS
INTERVAL MAINTENANCE OPERATIONS

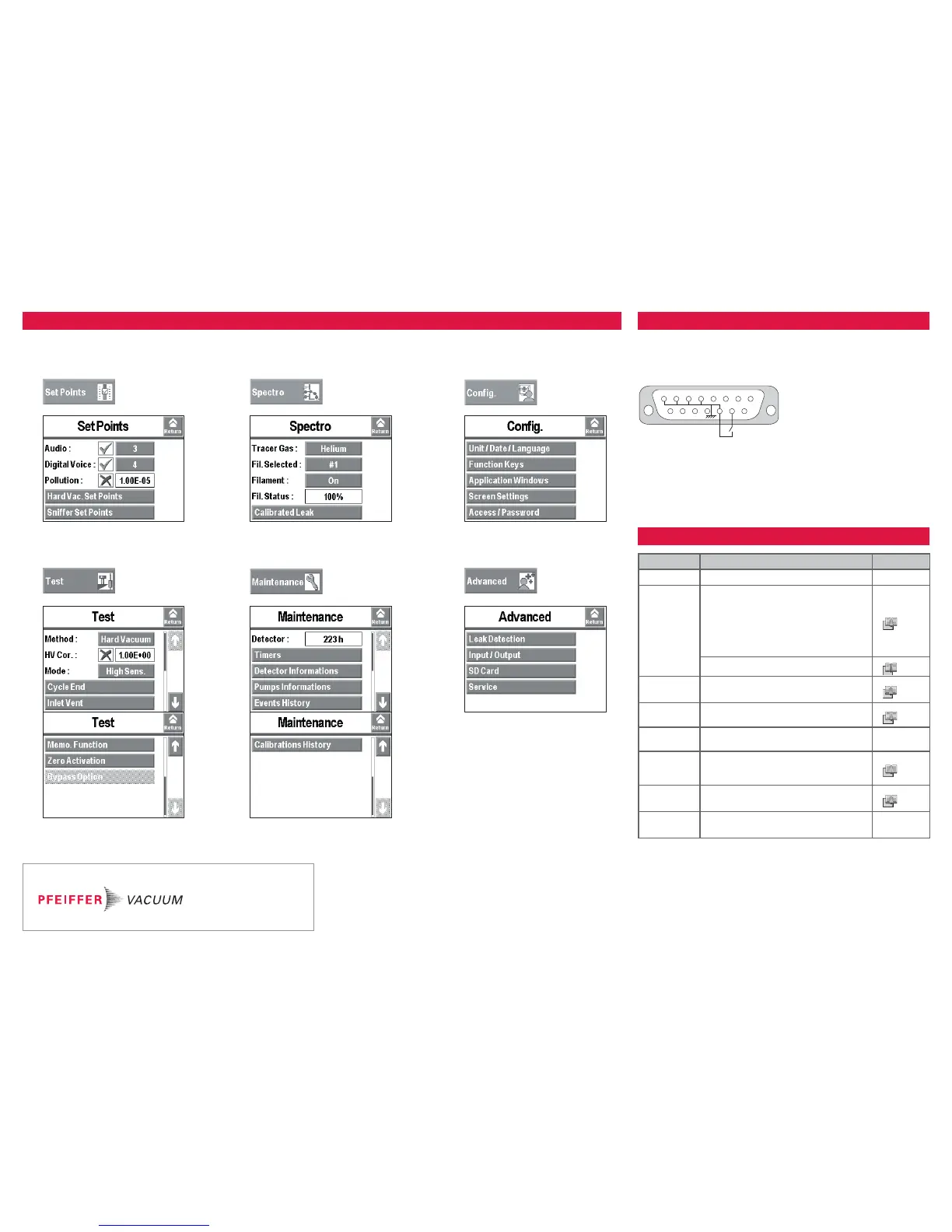

«SETTING» MENUS ARBORESCENCE
CS : Please contact Customer Service
(1) running time
(2) running time or storage
(3) storage
* Service intervals: The service intervals given are for applications and work rates which conform
to the normal operating conditions. If the machine is operating under more
difficult conditions they can be shortened.
Connector
The connector wiring Sub D 15 pin male is delivered with the leak
detector. It is recommended to use a shielded cable which is grounded
on the connector cap.
915
18
14
Inputs
14 Starting-up cycle
Outputs
9 Analog output 16 bit 0/10 V (mantissa)
10 Analog output 16 bit 0/10 V (exponent)
8 Loudspeaker +
15 Loudspeaker -
FREQUENCY*OPERATIONS SEE SHEET
1 000 H
(1)
Clean filters (inlet filters, air inlet filter). -
4 000 H
(1)
or
6 months
(2)
Clean the vacuum lines, the valves and the
gauges with alcohol - Dust the electronic
boards and the fans. Partial maintenance
of the analyzer cell. Clean the analyzer cell
with alcohol (this cleaning may be necessary
in case of general internal contamination
creating insulating deposits).
E 430
Pirani gauge adjustment.
C 406
8 000 H
(1)
or 1 year
(2)
Sniffer probe filter replacement if used.
G 200
15 000 H
(1)
MD1 pump: replacement of membranes and
check valves.
E 710
15 000 H
(1)
Replace the ball bearings of the ATH 31
pump.
CS
15 000 H
(1)
or 2 years
(3)
Recalibration/exchange of the internal
calibrated leak or calibrated leak used for
calibration.
E 413
500 000
cycles
Change the valves.
E 530
Every
2 years
Change ATH 31 pump ball bearings if the leak
detector has not been used.
CS
